Digital Amplifier - HD 2050.20
Digital amplifier HD2050.20 is an high power digital amplifier and includes a white and pink noise generator with remote control. Thanks to the auxiliary input is possible to drive it with an external generator to apply signals as sine sweep.
In order not to influence the levels measured, a controller can turn off automatically the cooling fan when performing measures in quiet environments or when measuring reverberation times with source interrupted; in this case the fan is turned off automatically when the power generator emission is interrupted.
With Podware software of the parametric equalizer is possible, also in real time, to activate functions like: mute, gain, 8 bands parametric equalizer plus 2 shelving filters and 2 filters HP and LP, delay.
According to : IEC60651
Created setup can be saved on HD2050.20 amplifier.
|
Conforms to |
EN 55103-1 (Emissions), EN 55103-2 (Immunity) EN 6065, class 1 (Safety) |
|
Type |
Digital, class D |
|
Maximum power |
1200 W @ 12 ohm |
|
Continuous power |
2 x 530 W RMS |
|
External generator input |
With level control |
|
Power supply |
230 Vac (±10%), 50-60 Hz |
|
Frequency Response |
20 Hz ÷ 20 kHz |
|
THD |
< 0.1% @ 1 kHz |
|
Noise generator |
White/Pink with level control Output: Neutrik® XLR |
|
Connectors |
Input: Neutrik® Combo Output: Neutrik® NL4FC speakON AC Power: Neutrik® powerCON |
|
RMSlevel limiter |
Control of the maximum power tolerated by the speaker HD 2050 |
|
Status Indicators |
Mute, Active, Power ON |
|
Protections |
Short circuit, thermal, ultrasonic e RF, clip limiter, DC Fault PS shutdown |
|

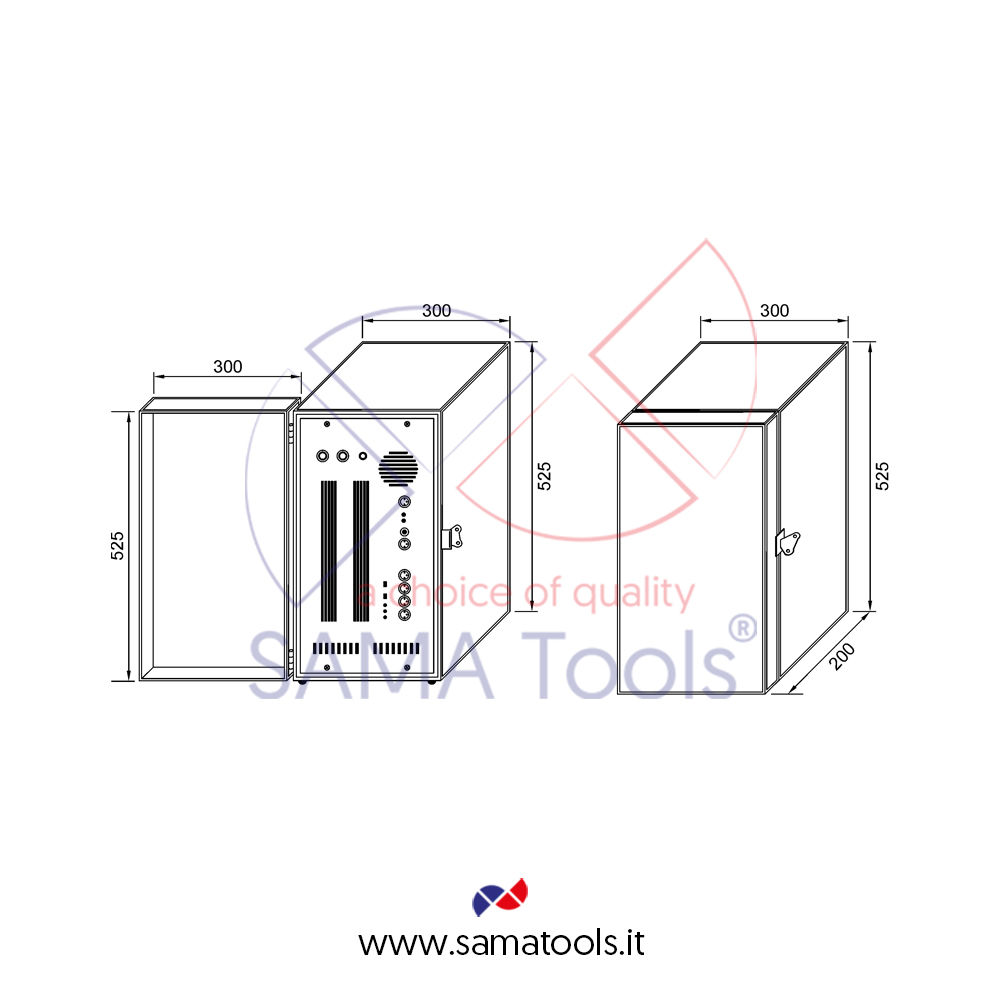

Dimensions flight-case included |
300 x 525 x 200 mm |
|
Weight |
11.8 kg flight-case included |
|
Note: Neutrik® is a registered trademark of Neutrik AG |
|
