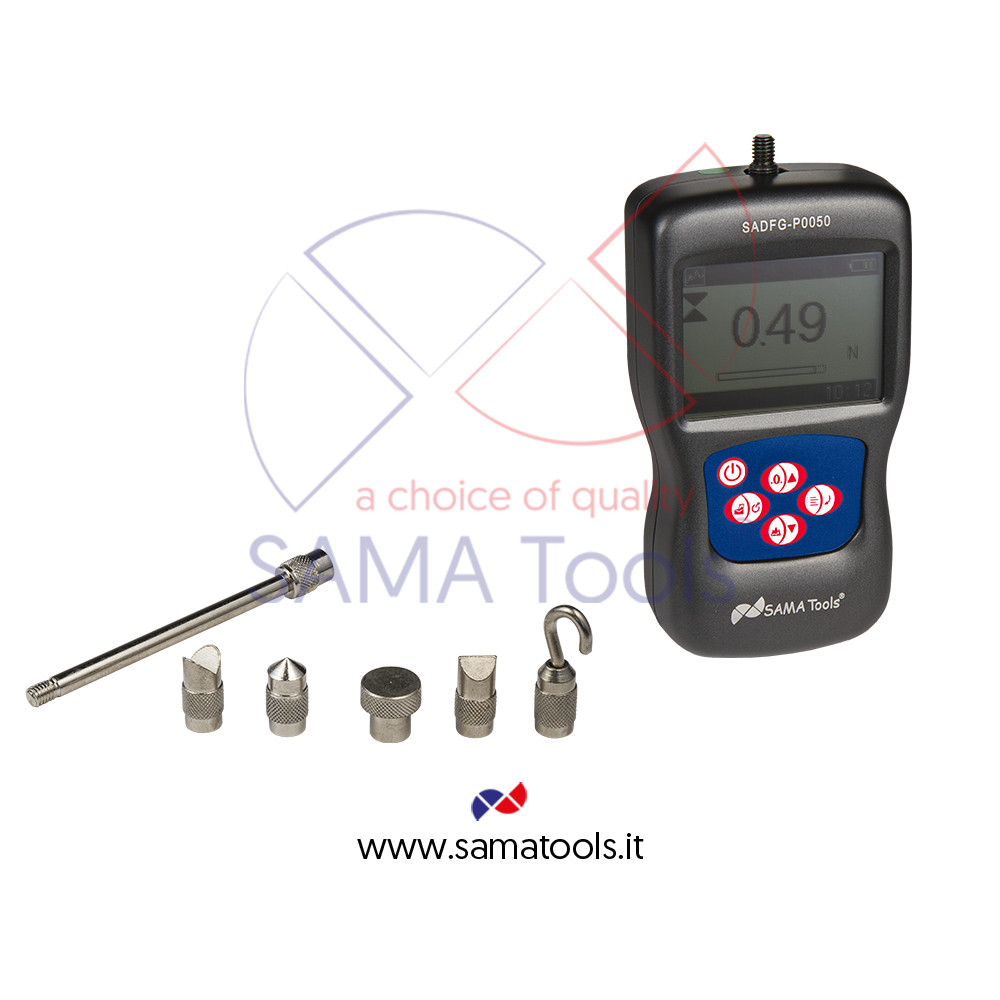

High precision digital Force Gauges - SADFG-P
Devices used to measure tension and compression force. Digital force gauges are able to convert measured values in different scales and their standard delivery includes software and communication cable in order to be connected to a PC.
There are several fields of employment in which they can operate: from quality control activities to safety gear maintenance like fire extinguisher and anti-panic doors controls. Various accessories grant a wide range of applications.
|
Modello / Model |
SADFG-P0010 |
SADFG-P0050 |
SADFG-P0100 |
SADFG-P0500 |
SADFG-P1000 |
|
Standard |
ISO 376 ; ASTM E 74 |
||||
|
Cella di carico / Load cell |
Integrated |
||||
|
Capacità / Capacity |
10 N 1 Kg |
50 N 5 Kg |
100 N 10 Kg |
500 N 50 Kg |
1.000 N 100 Kg |
|
Risoluzione / Resolution |
0,01 N |
0,01 N |
0,1 N |
0,1 N |
1 N |
|
Precisione / Accuracy |
± 0,3% F.S. |
||||
|
Carico minimo Min. load |
0,2% F.S. |
||||
|
Unità di misura Measuring units |
N, Kgf, lbf, ozf, gf |
||||
|
Funzioni / Functions |
Track ; Peak ; PreSet ( max/min ) |
||||
|
Direzione del display Display reading sense |
Reversible |
||||
|
Memoria / Memory |
500 values |
||||
|
Uscita dati / Data output |
√ |
||||
|
Auto switch-off |
√ |
||||
|
Alimentazione Power supply |
Rechargeable battery |
||||
|
Dimensioni / Dimensions |
130 x 72 x 33 mm |
||||
|
Peso / Weight |
400 g |
||||
Dotazione Standard / Standard Supply:
Unità centrale / Main unit
Adattatori per compressione e trazione / Compression and traction adapters
Prolunga / Extension rod
Cavo e software / Cable and software
Valigetta / Carrying case
Manuale d’uso / User’s manual
Accessori Opzionali / Optional Accessories:
Stampante / Printer

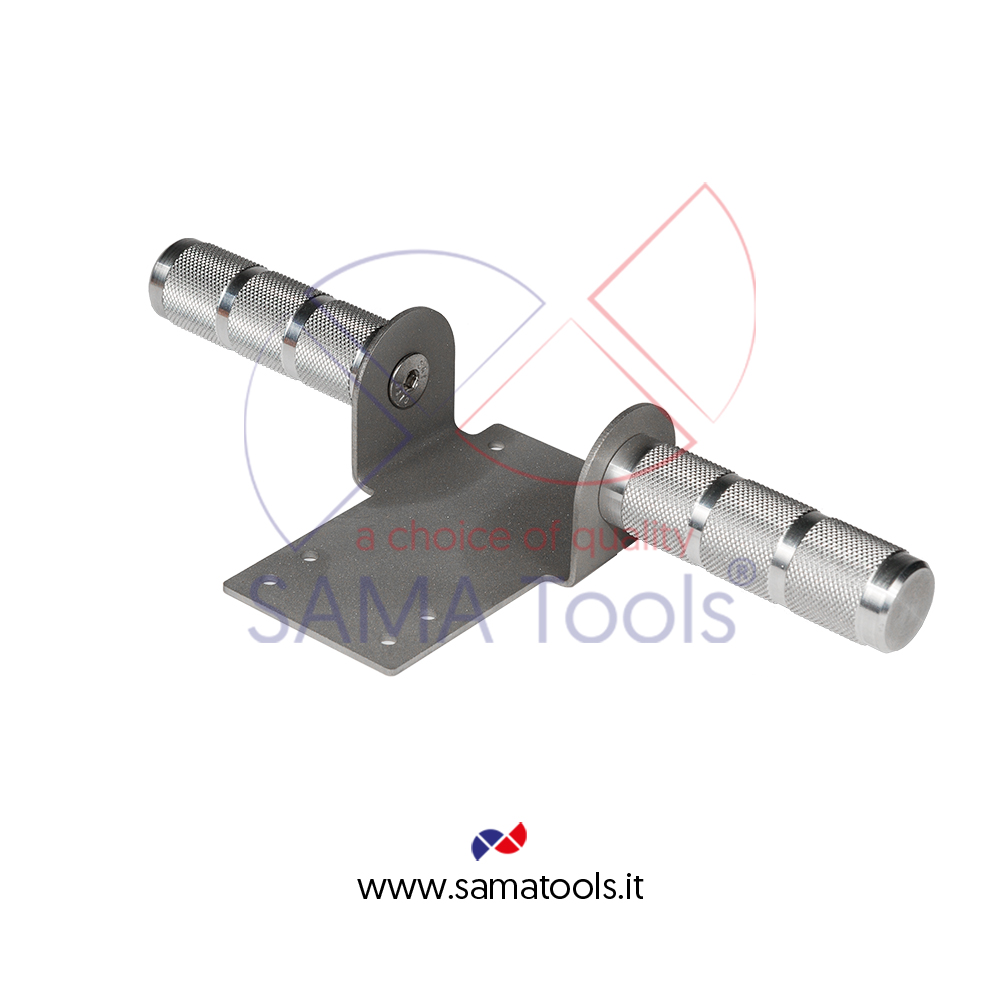

Impugnatura / Handle

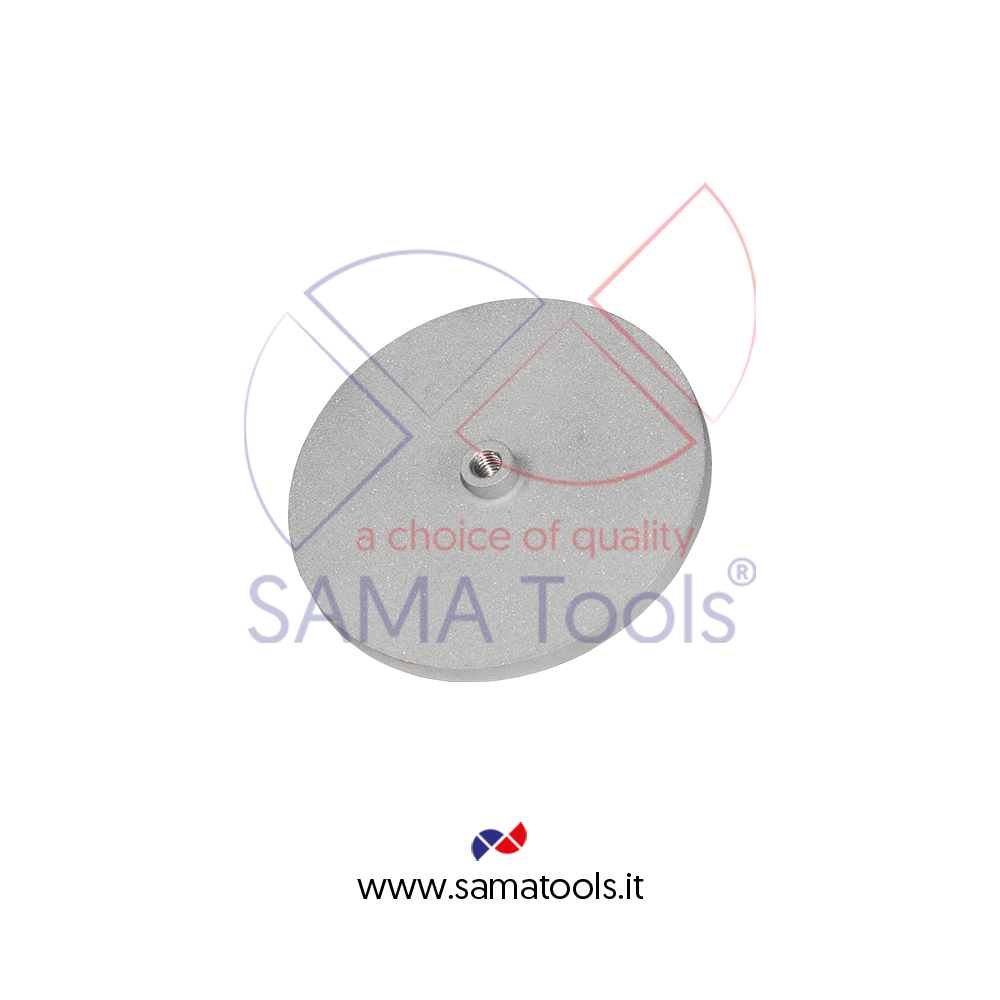

Piattello per prove di spinta / Push disk

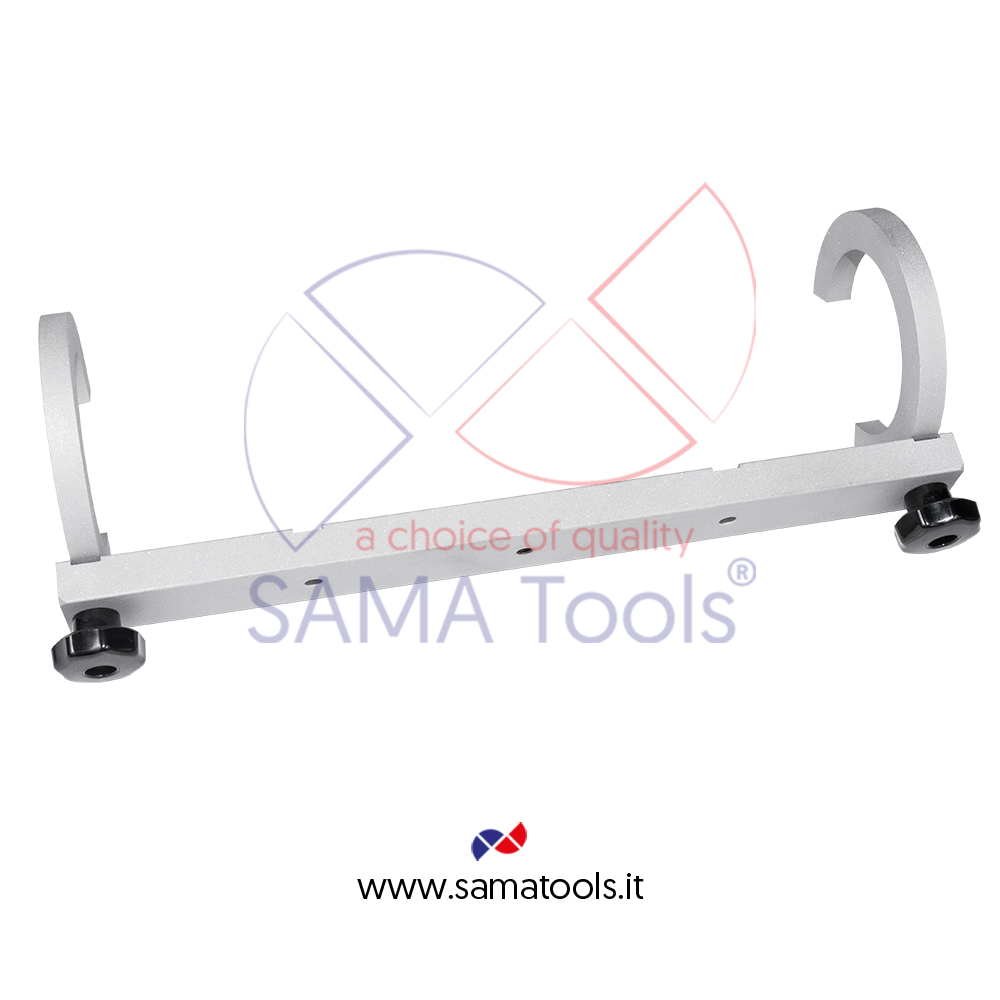

Supporto traino e spinta / Push and pull attachment

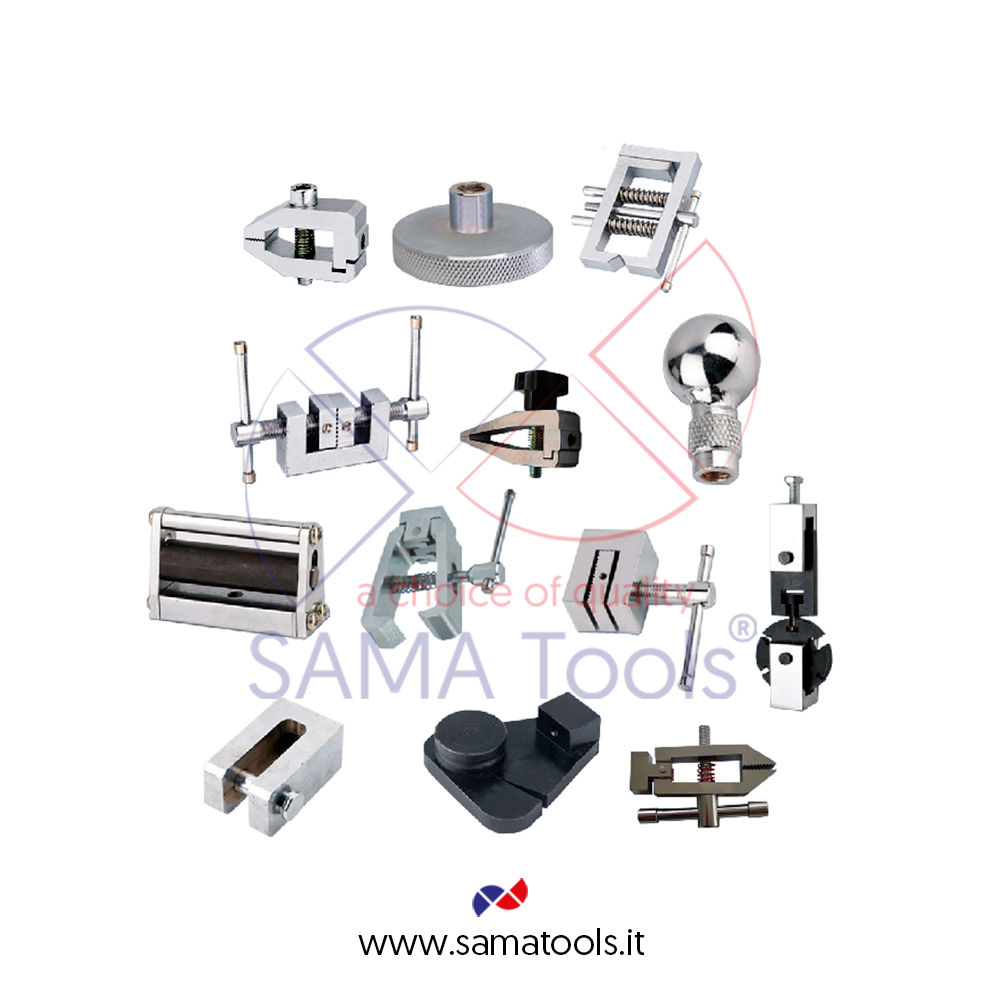

Pinze porta-campione / Clamps
Stativo / Test stand
Certificato di taratura / Calibration report
