Digital Force Gauges

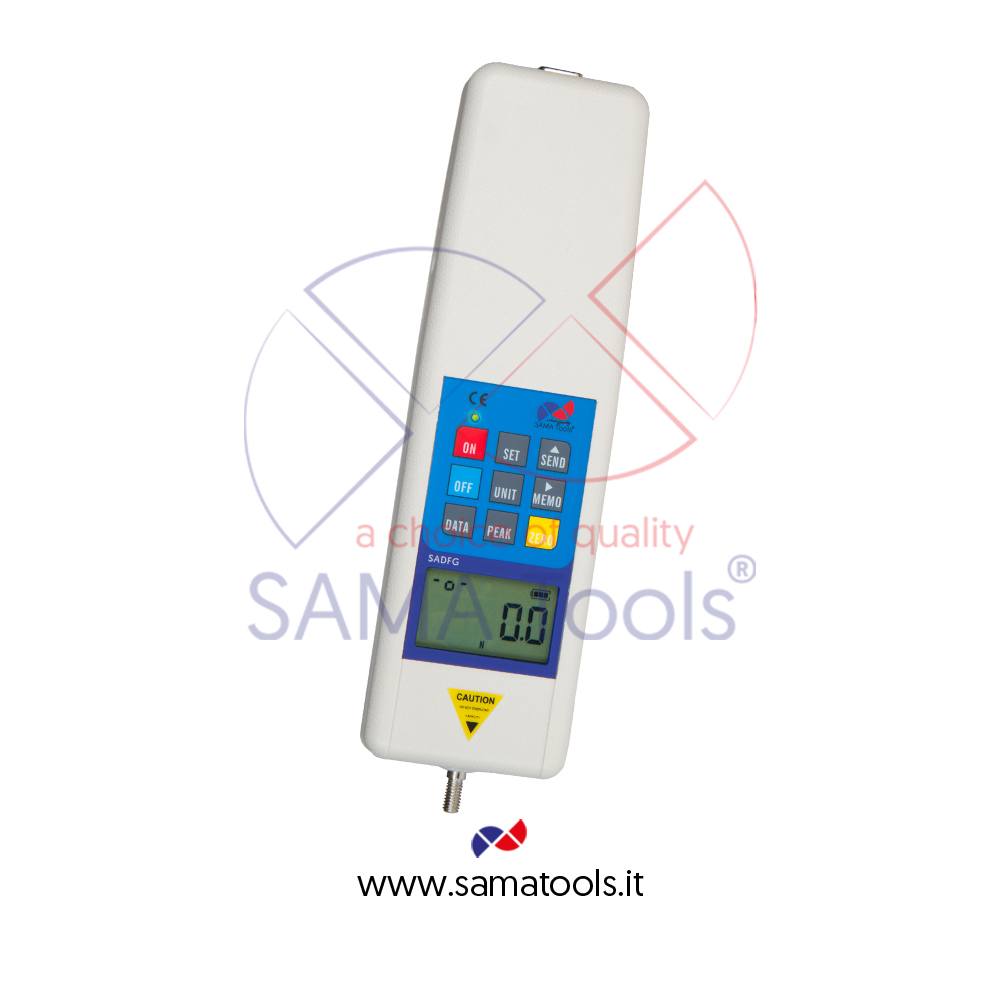

Digital Force Gauges - SADFG

Our digital portable dynamometers can measure the force weight , both in traction, both in compression , in threedifferent scales : N, Kg , e lb.

The instruments, retrofittedto operate onstators, are equipped with a full set of accessories easy to install ( flathead adapter, onical, chisel, hook, extension) RS232 interface very intuitive and a resistant case where they can be stored and transported.

Mainareasof use and application:



Agriculture

Stadium offruit ripening

Food Industry

Consistency, bottles opening load, packaging testing

Textile Industry

Fabrics resistance

Leatherwear

Resistanceofbags, soles etc .

Carpentry

Resistanceof packages

Paper industry

Resistanceof paper, cardboard andpackaging

Chemicalindustry

Adhesion of coatings, gels, opening loads of bottles

Rubber & Plastics

Partsstrength , fiber assemblies, films, rubbers, foams, etc.

Glassand ceramics

Testson Packaging

Metallurgy

Material resistance

Cutlery

Mechanical strength and efforts needed to handle them

Machinery

Parts resistance and assembly, flow, breaking load

Automotive

Shock absorbers test and effort needed related to mechanisms

Springs

Compression, tension, torsion

Cosmetics

Granularity,cosmetic bag opening and closing

Medicalindustry

Load in physical therapy, syringes resistance, capsules hardness

metrology

Sensorcalibration, compression, torsion, tension

Electronic engineering

Capacity, loadto screw /unscrew, loadbuttons,

Packagingindustry

Opening,breaking, untaploading,   film drilling



Essential range of accessories in order to maximize your force gauge. Suggested to be employed in synergy with internal load cell force gauges and related test stands. Non standard clamps available on demand.

Modello

Model

SADFG

0002

SADFG

0005

SADFG

0010

SADFG

0020

SADFG

0050

SADFG

0100

SADFG

0200

SADFG

0500

SADFG

1000

Standard

ISO 376 ; ASTM E 74

Cella di carico

Load cell

Integrated

Capacità

Capacity

2 N

0,2 Kg

5 N

0,5 Kg

10 N

1 Kg

20 N

2 Kg

50 N

5 Kg

100 N

10 Kg

200 N

20 Kg

500 N

50 Kg

1.000 N

100 Kg

Risoluzione

Resolution

0,001 N

0,001 N

0,01 N

0,01 N

0,01 N

0,1 N

0,1 N

0,1 N

1 N

Carico minimo

Min. load

1% F.S.

Precisione

Accuracy

± 0,5% F.S.

Unità di misura

Measuring units

N ; Kg ; Lb

Funzioni / Functions

Track ; Peak ; Auto-peak ; PreSet ( max/min )

Direzione del display

Display reading sense

Reversible

Memoria / Memory

√ ( max, min, average function )

Uscita dati

Data output

Auto switch-off

Alimentazione

Power supply

Rechargeable battery

Dimensioni

Dimensions

230 x 66 x 37 mm

Peso / Weight

300 g

 (*) note: The data acquisition PC is only possible if the measurements are carried connected in "real-time" to the terminal

Dotazione Standard / Standard Supply:
Unità centrale / Main unit
Adattatori per compressione e trazione / Compression and traction adapters
Prolunga / Extension rod
Cavo e software / Cable and software
Valigetta / Carrying case
Manuale d’uso / User’s manual

Accessori Opzionali / Optional Accessories:

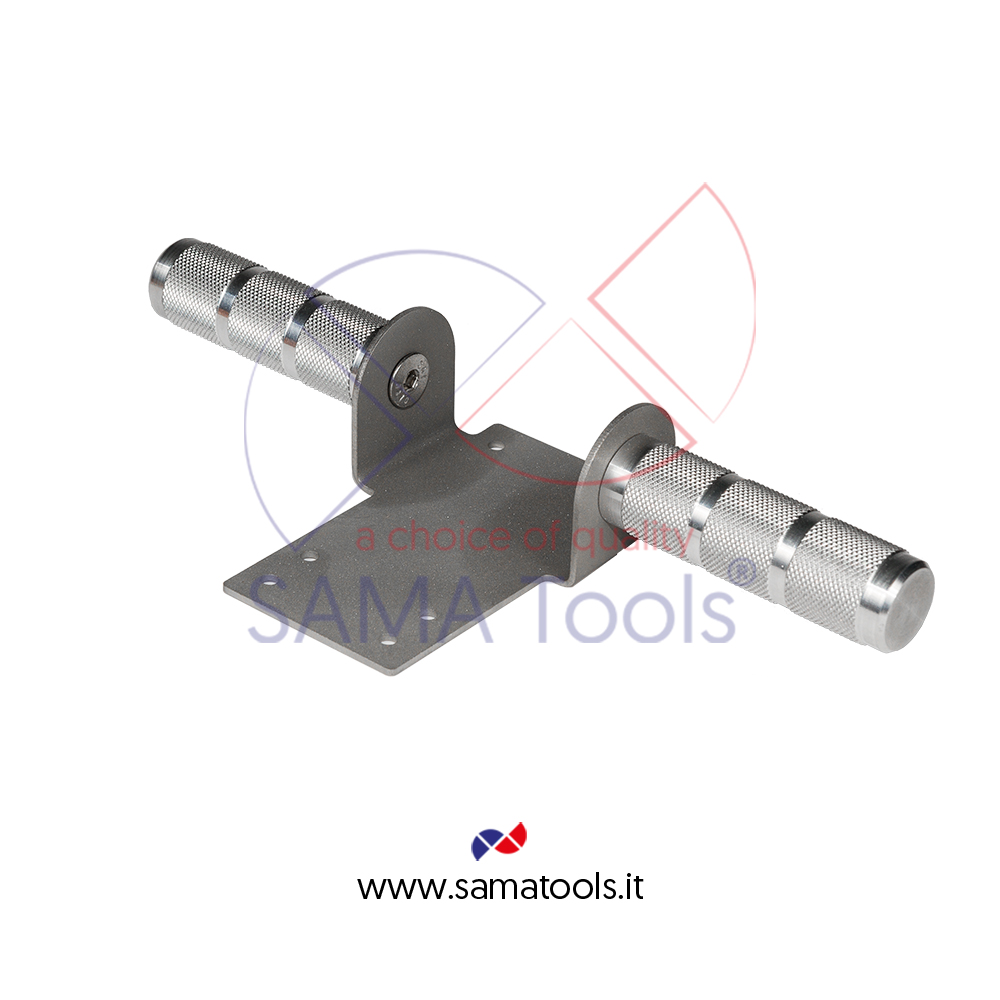

Impugnatura / Handle

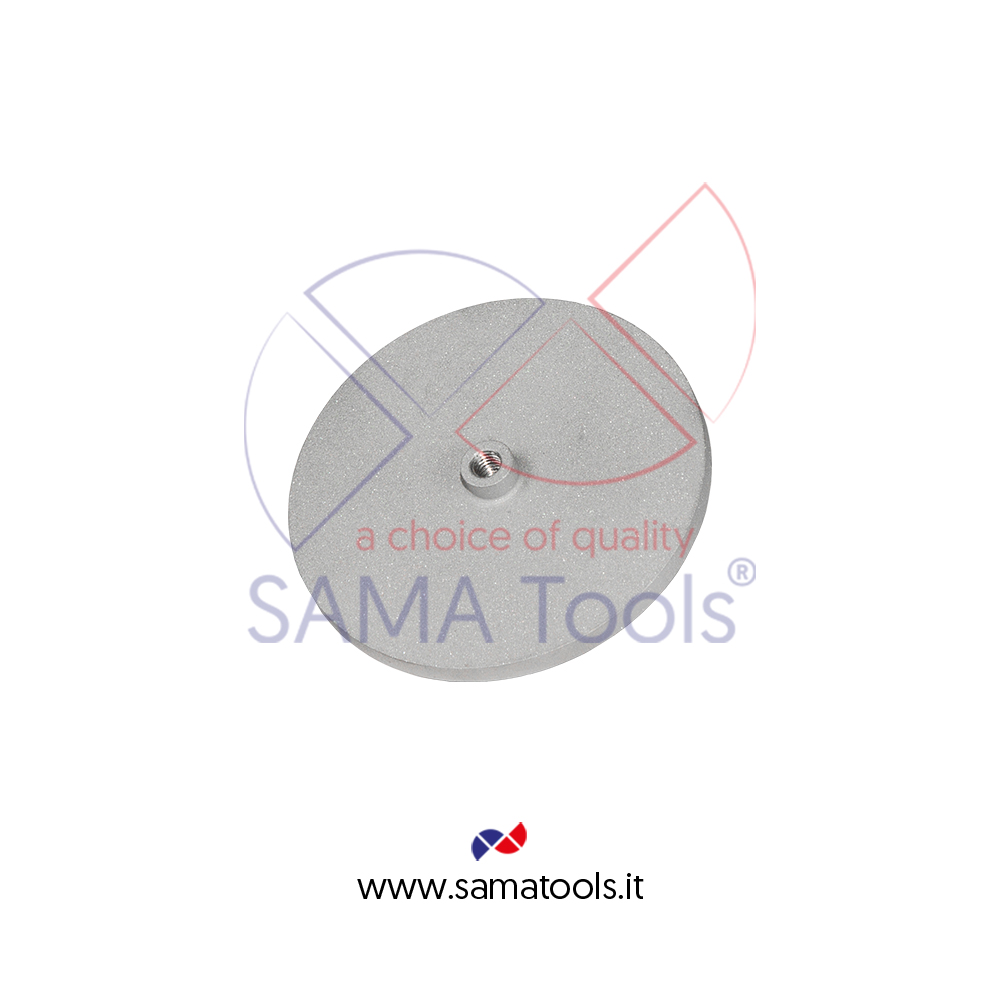

Piattello per prove di spinta / Push disk

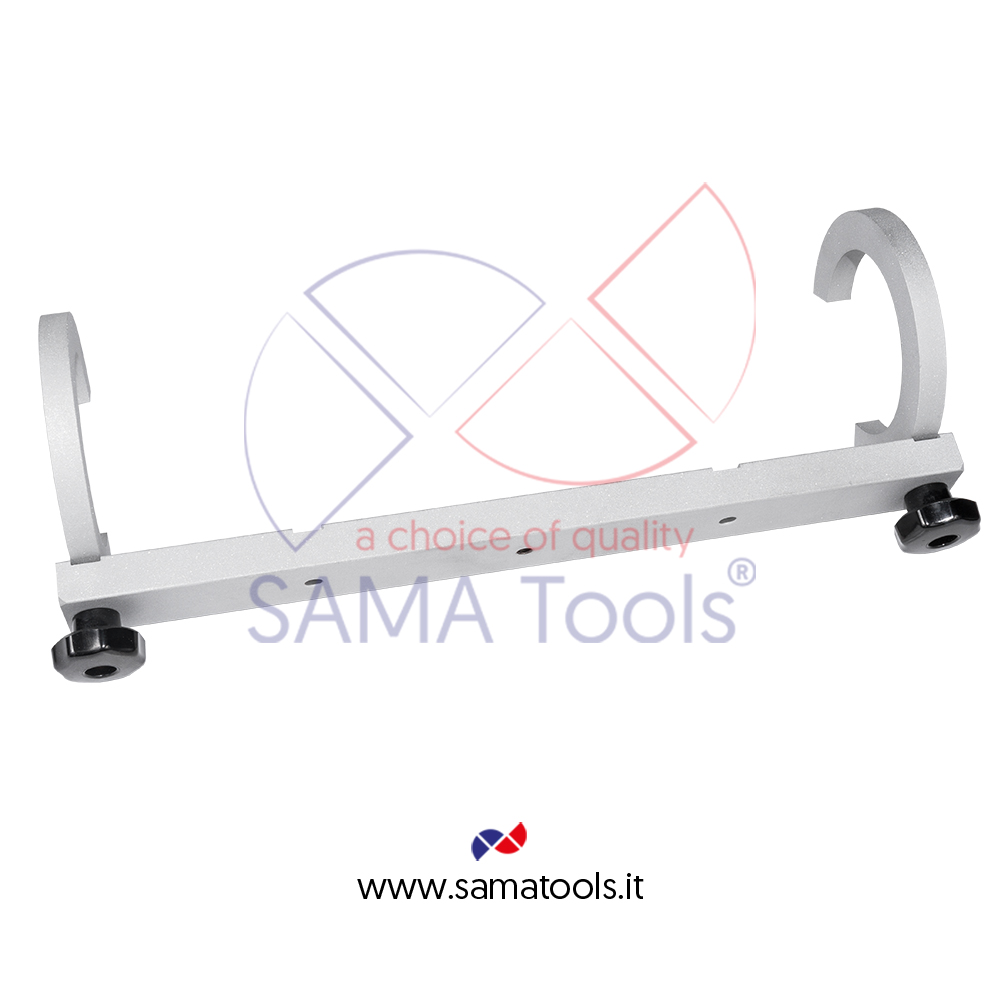

Supporto traino e spinta / Push and pull attachment

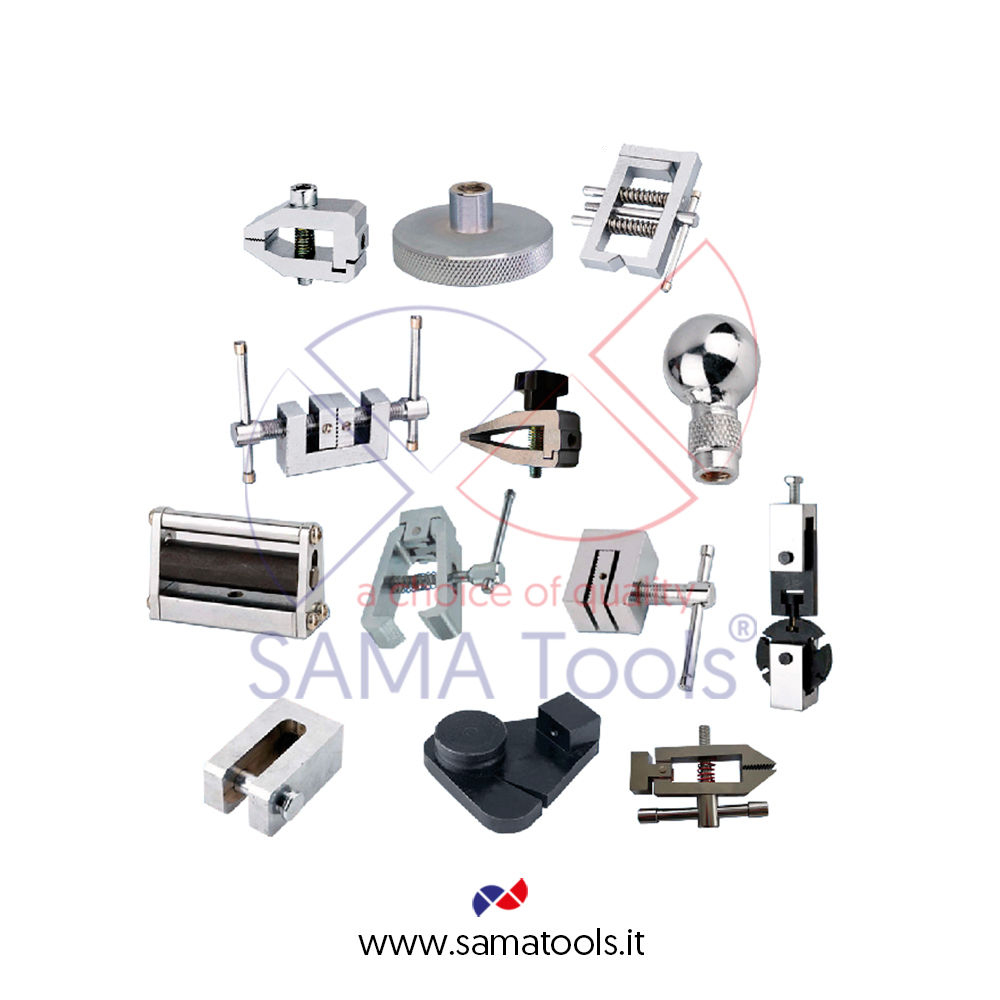

Pinze porta-campione / Clamps

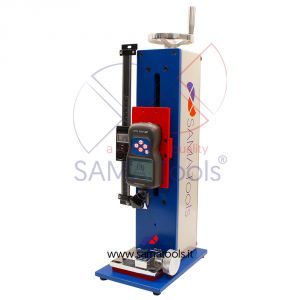

Stativo / Test stand
Certificato di taratura / Calibration report
