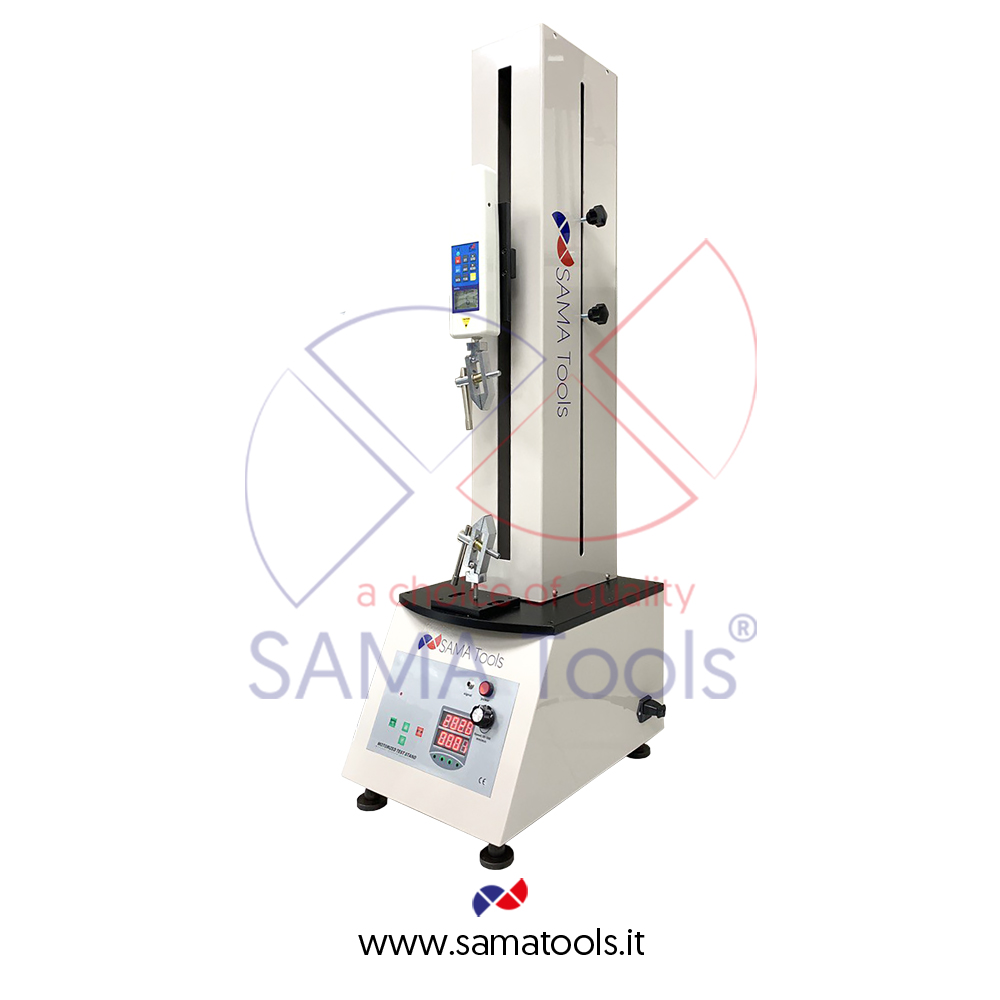

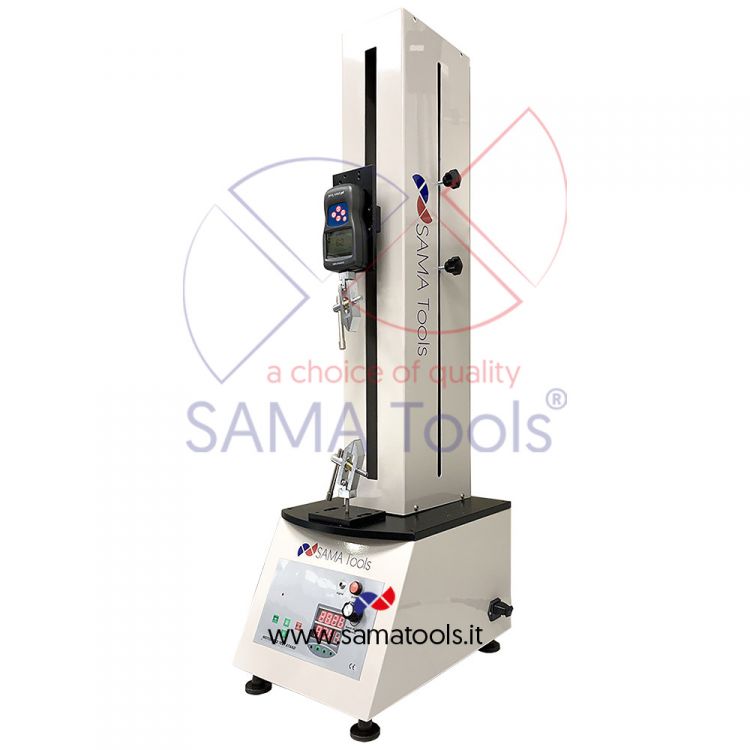

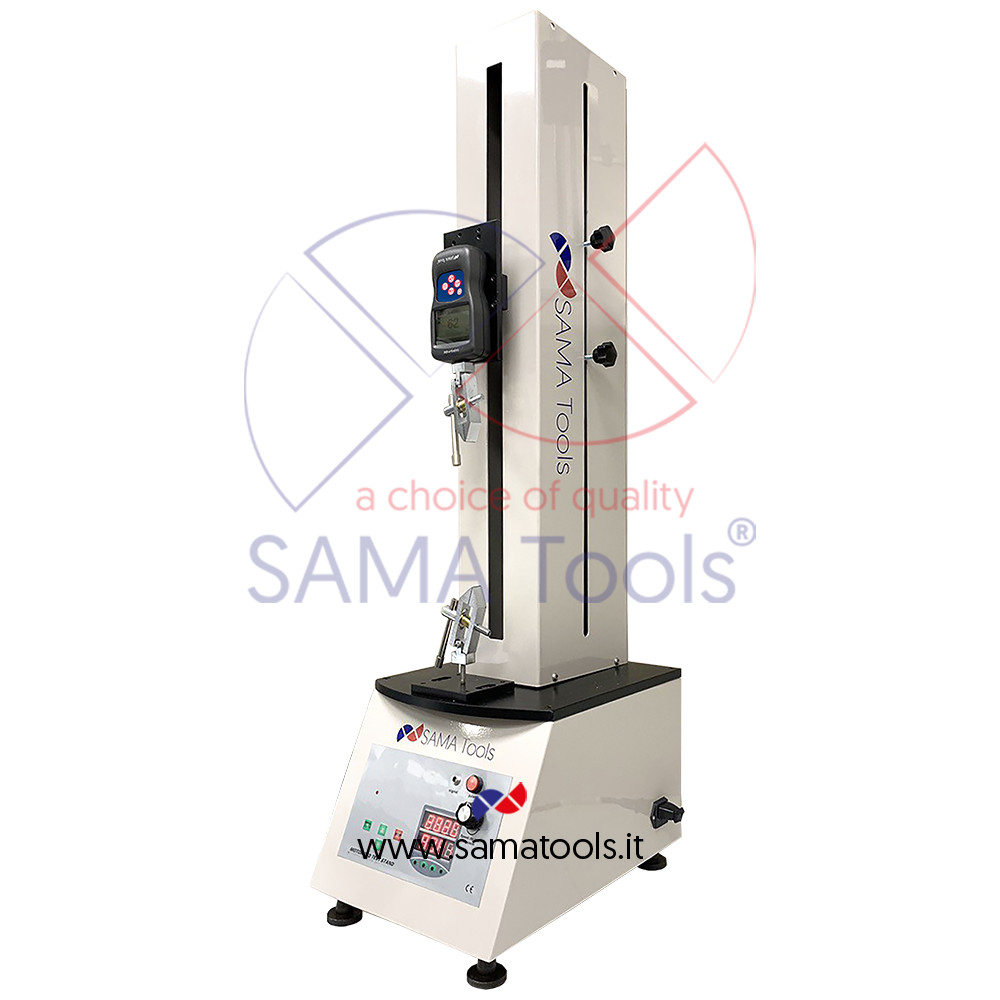

Force gauge test stands - SAHSV-1000
Force gauge test stands allow to operate in the best conditions, in order to guarantee realistic readings with maximum repeatability and reproducibility, reducing the human error. The motorized series allows the setting of test cycles at constant speed.
|
Modello / Model |
SAHSV-1000 |
|
Capacità massima / Maximum capacity |
1.000 N |
|
Corsa / Stroke |
580 mm |
|
Velocità / Speed |
30 ~ 300 mm/min |
|
Contatore / Counter |
Max. working cycle: 9.999 times per Cycle |
|
Sicurezza sovraccarico / Overload safety |
Automatic stop when overloaded ( only with SADFG force gauges series ) |
|
Alimentazione / Power supply |
220 Vac |
|
Dimensioni / Dimensions |
360 x 255 x 1.000 mm |
|
Peso / Weight |
50 Kg |
Dotazione Standard / Standard Supply:
Unità centrale / Main unit
Manuale d’uso / User’s manual
Accessori Opzionali / Optional Accessories:
Dinamometri / Force gauges
Pinze / Attachments
