“Snook & Ciriello” testing force gauge kit

“Snook & Ciriello” testing force gauge kit - SA-KIT-SC

Digital force gauge kit is suitable for towing and pushing tests according to "Snook and Ciriello" method. The contents of this kit comply with SNOOK & CIRIELLO regulations UNI ISO 11228-2, UNI EN 179, UNI EN 12217, UNI EN 1154.



This kit is supplied with calibration reports.





Modello / Model

SA-KIT-SC2

SA-KIT-SC3

SA-KIT-SC1

SA-KIT-SC4

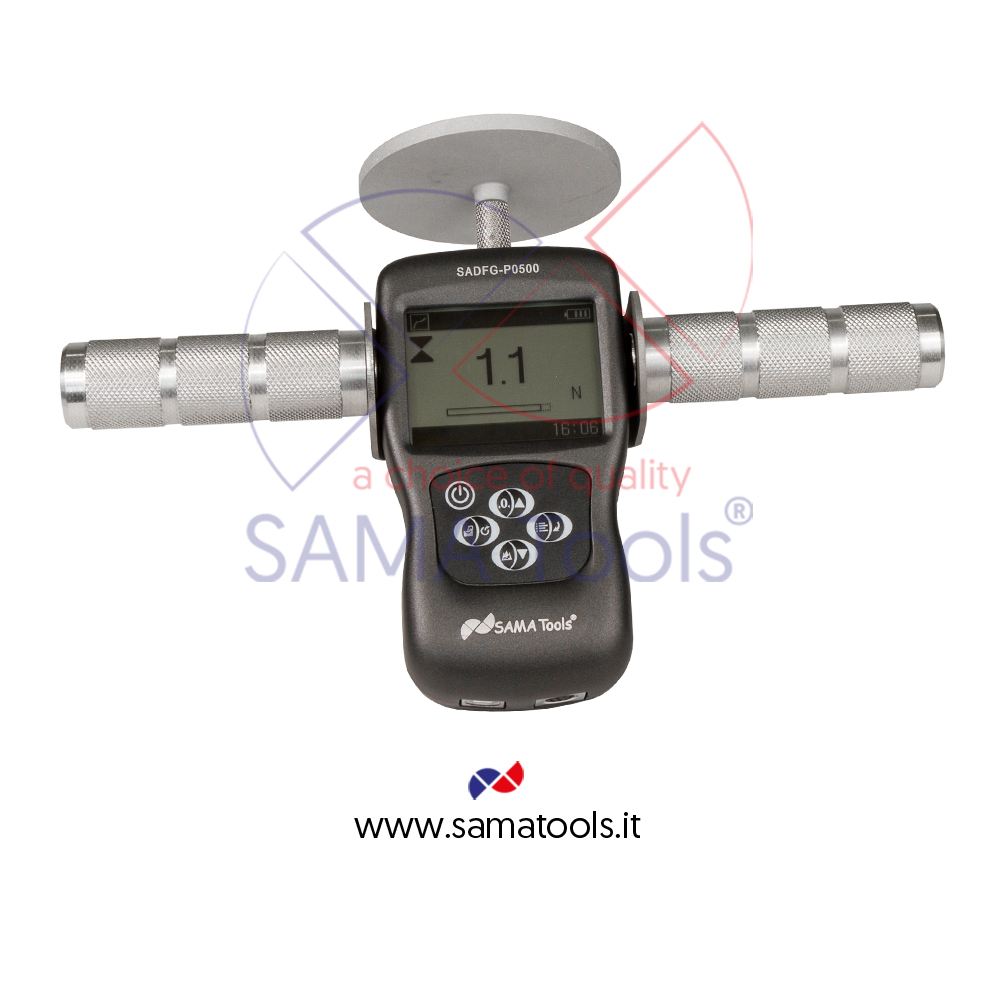

Dinamometro

Force gauge

SAFG-0500

SADFG-0500

SADFG-P0500

SADFG-P1000

Tipologia / Type

Analog

Digital

Campo di misura

Measuring range

500 N

1.000 N

Risoluzione / Resolution

2 N

0,1 N

1 N

Precisione / Accuracy

5 N

2,5 N

1,5 N

3 N

Unità di Misura

Measuring units

N ; Kg

N ; Kg ; Lb

Cella di carico

Load cell

Integrated

Funzioni / Functions

Track ; Hold peak

Track ; Peak ; Preset ; Auto peak

Track ; Peak ; Preset

Rapporto di taratura Calibration report

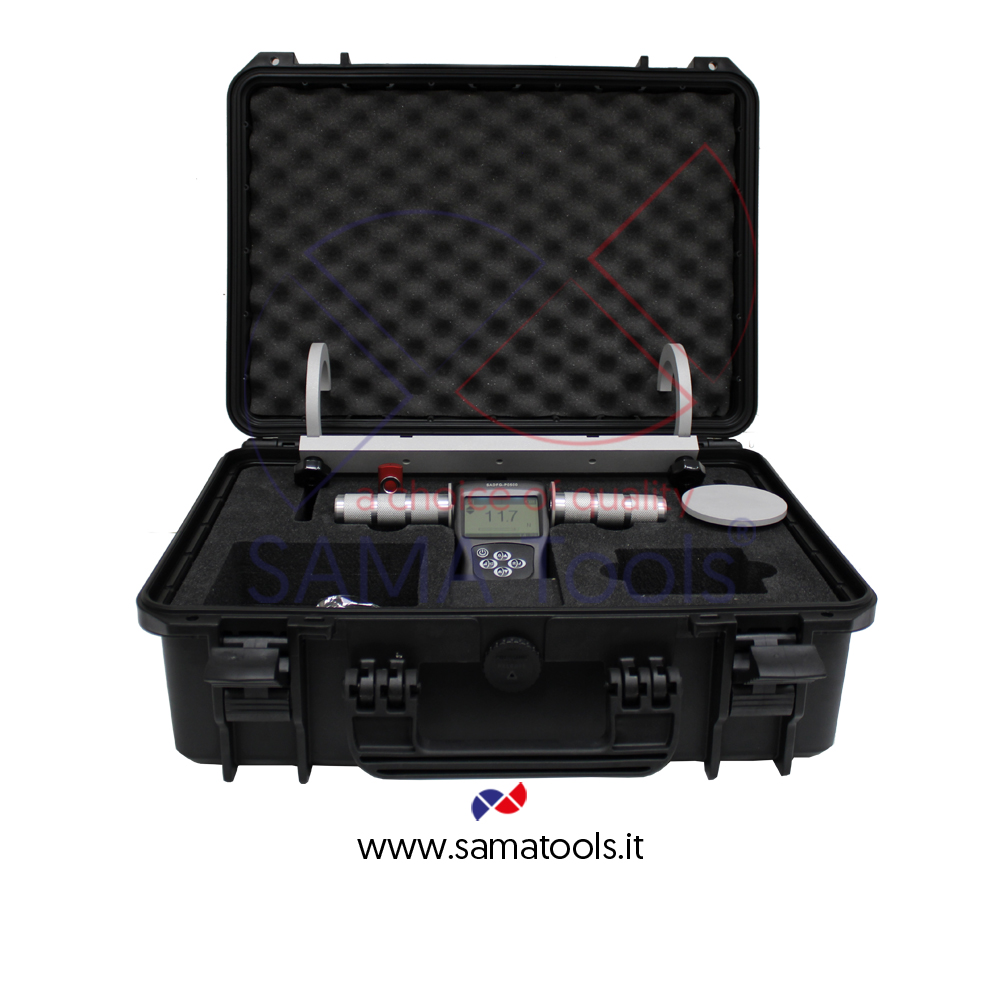

Dotazione Standard / Standard Supply:
Unità centrale / Main unit
Impugnatura / Handle
Piattello per prove di spinta / Push disk

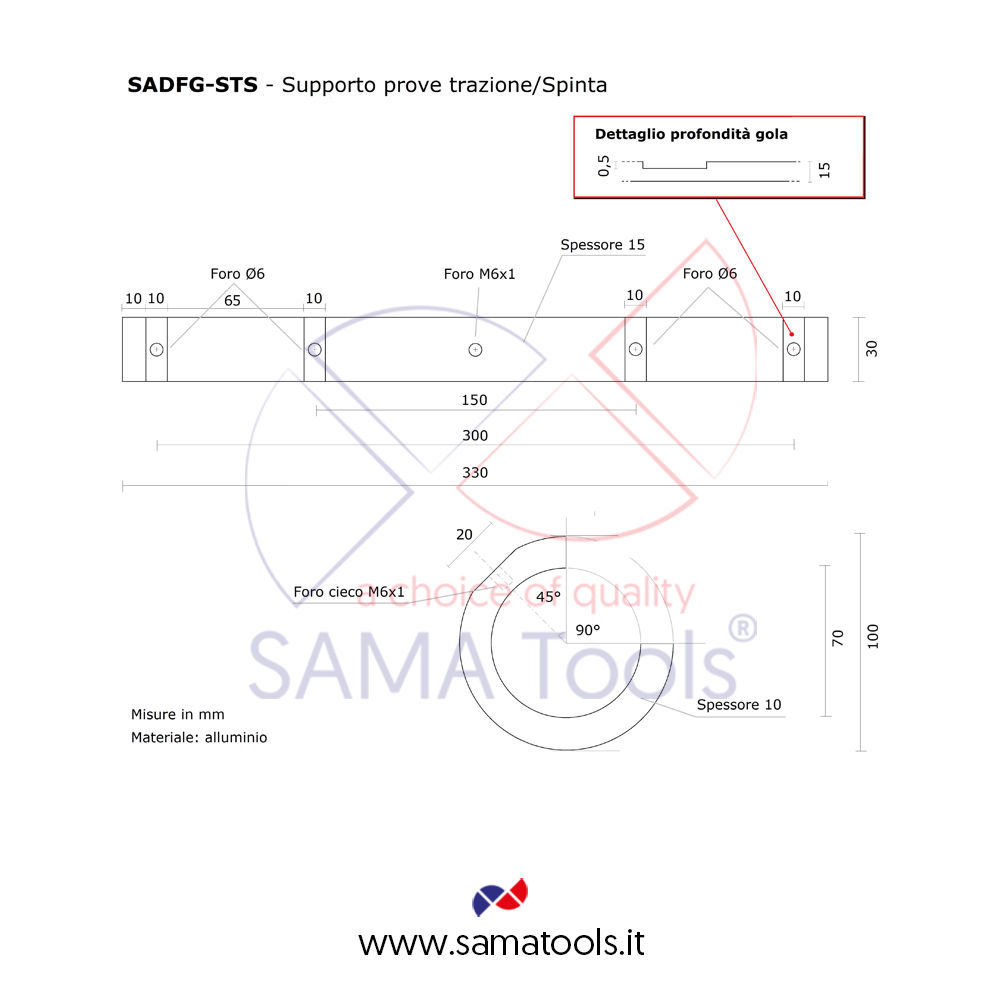

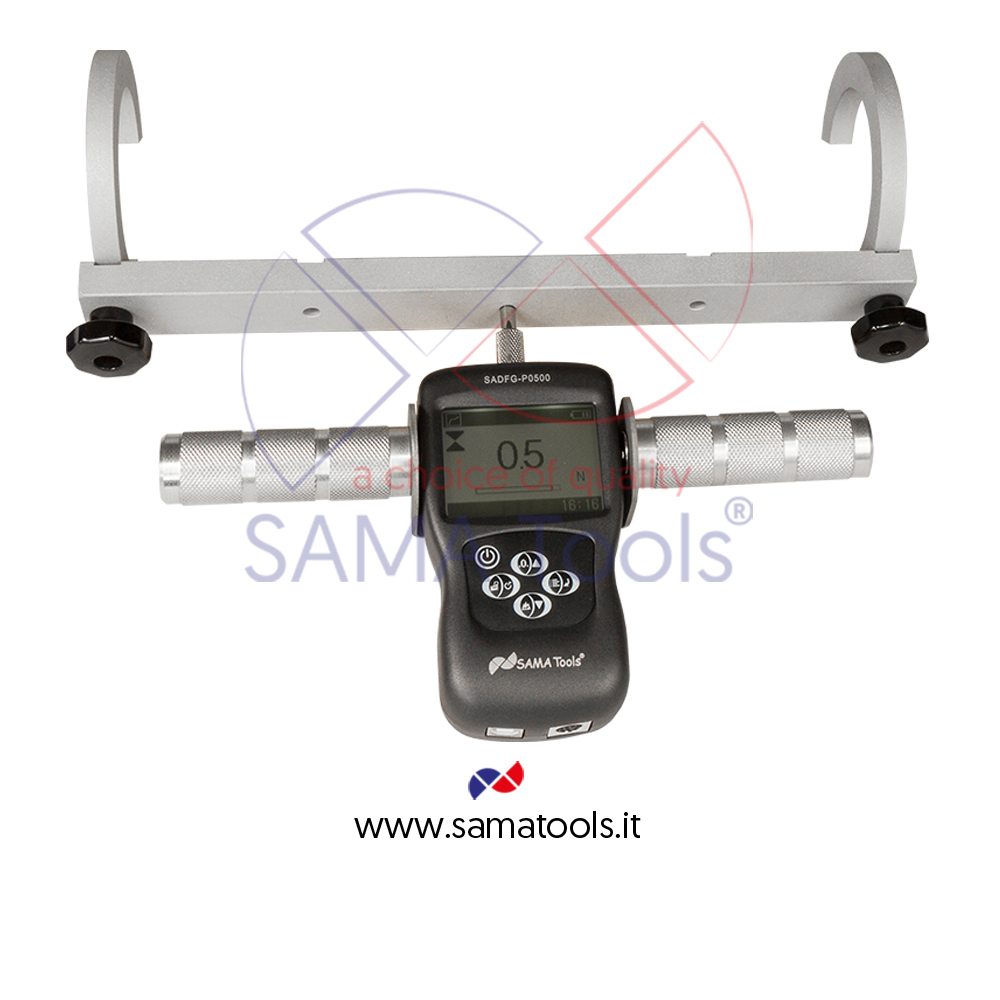

Supporto traino e spinta / Push and pull attachment
Cavo e software / Cable and software
Valigetta / Carrying case
Manuale d’uso / User’s manual
Certificato di taratura / Calibration report

Accessori Opzionali / Optional Accessories:
Stampante (solo per serie SADFG-P) / Printer (only for SADFG-P)
