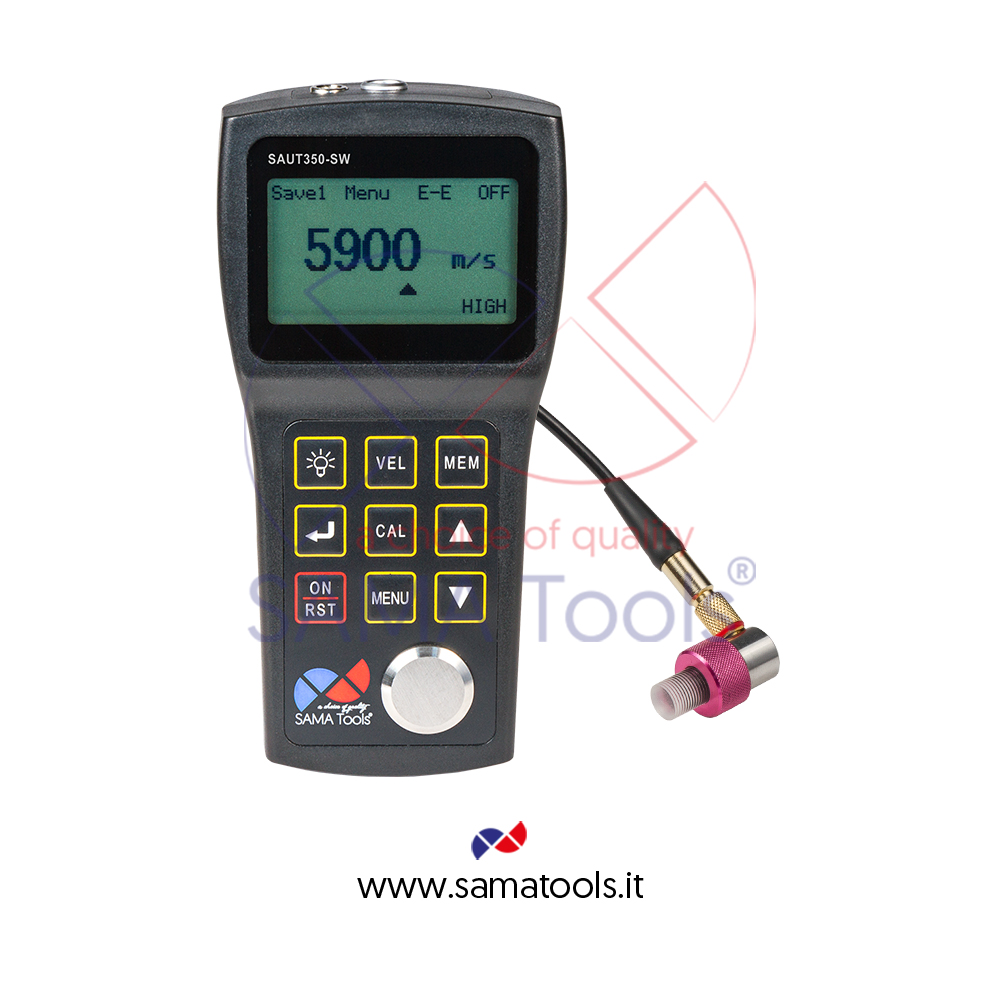

Ultrasonic thickness gauge with software - SAUT350
Non destructive testing devices used to measure thickness in ultrasonic conducting mediums.
They are commonly employed to determine the thickness of tanks, central parts of large metal sheets, pipelines, under pressure containers, bulkheads, etc.
Most common uses are quality control activities and maintenance inspections to detect corrosion and wearing on the workpiece.
Modello / Model |
SAUT350-SW |
|
Standard |
ASTM E 797 : EN 15317 |
|
Campo di misura Measuring range |
I-E Standard |
1,50 ~ 20,0 mm ( ref. steel ) |
E-E Alta precisione / High precision |
0,15 ~ 10,0 mm ( ref. steel ) |
|
Sonda standard / Standard probe |
SAPT-350 - single delay ( 15 Mhz ) |
|
Risoluzione / Resolution |
0,001 mm |
|
Precisione / Accuracy |
± 0,005 mm [ ≤ 3 mm ] ± 0,05 mm [ ≤ 20 mm ] |
|
Velocità di propagazione del suono nel materiale Sound velocity range |
1.000 ~ 9.999 m/s |
|
Unità di misura / Measuring units |
mm ; inch |
|
Frequenza di lettura / Response time |
4 Hz normal mode, up to 25 Hz |
|
Modalità di misura / Measurement mode |
Single ; Scan ; Min. capture |
|
Calibrazioni / Calibration modes |
1 point or 2 points |
|
Memoria interna / Internal memory |
5 groups (100 values each one ) |
|
Uscita dati / Data output |
√ |
|
Indicatore batterie scariche / Low battery indicator |
√ |
|
Autospegnimento / Auto switch-off |
√ |
|
Alimentazione / Power supply |
AA batteries |
|
Dimensioni / Dimensions |
149 x 73 x 32 mm |
|
Peso / Weight |
200 g |
SAUT350D-SW - Scheda tecnica sonde / Probes data sheet |
||||
Modello / Model |
Freq. Mhz |
Ø est/contatto Ø ext/contact |
Campo di misura (acciaio) Measuring range (steel) |
Impiego / Usage |
SAPT-350 |
15 |
7,5 mm |
1,50 ~ 20,0 mm |
I-E |
0,15 ~ 10,0 mm |
E-E |
Dotazione Standard / Standard Supply:
Unità centrale / Main unit
Sonda standard / Standard probe
Gel di accoppiamento 50 ml / 50 ml couplant gel
Cavo e software / Cable and software
Valigetta / Carrying case
Manuale d’uso / User’s manual
Accessori Opzionali / Optional Accessories:

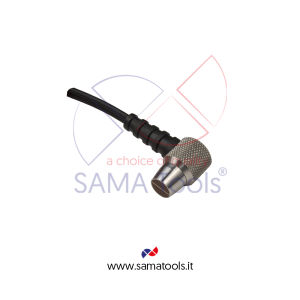

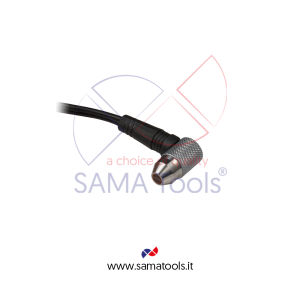

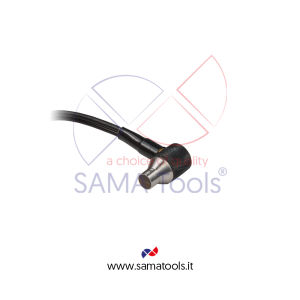

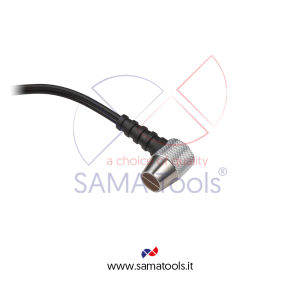

Sonde opzionali / Optional probes
Master di calibrazione 6 step / 6 steps calibration block
Gel 50ml-260ml-1lt-5lt / 50ml-260ml-1lt-5lt couplant gel
Certificato di taratura / Calibration report
