Shore digital hardness testers

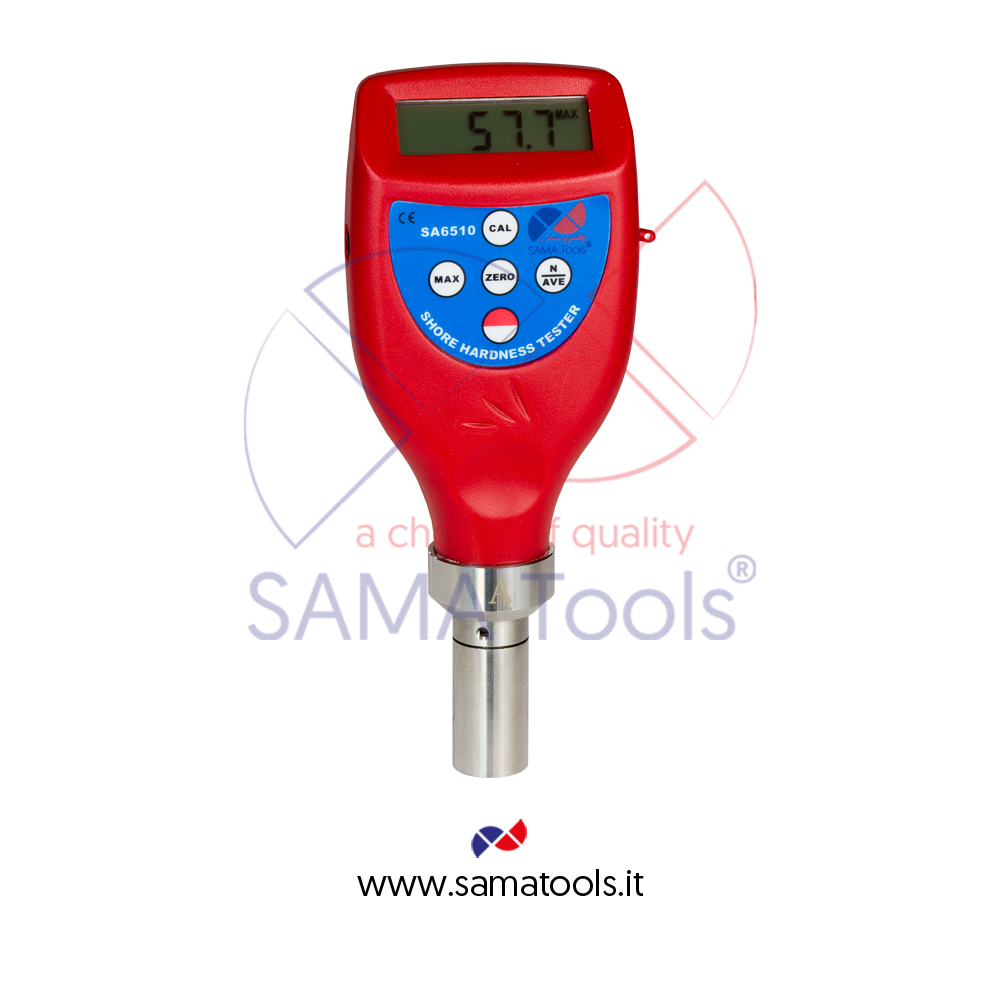

Shore Hardness Tester - SA6510

Shore hardness testers are most commonly used to measure hardness of materials such as rubber, plastic, sponges and related. The main area of use is basic productive sector and all maintenance requirements and quality control involving plastic materials and their derivatives.

The type of check is a non-destructive test, on inspected materials remain only a small print called “Witness”.

The compact size and the ergonomic design guarantee portability and possibility to make measurements even under less comfortable situations for the operator,both inlaboratoryboth on the field.

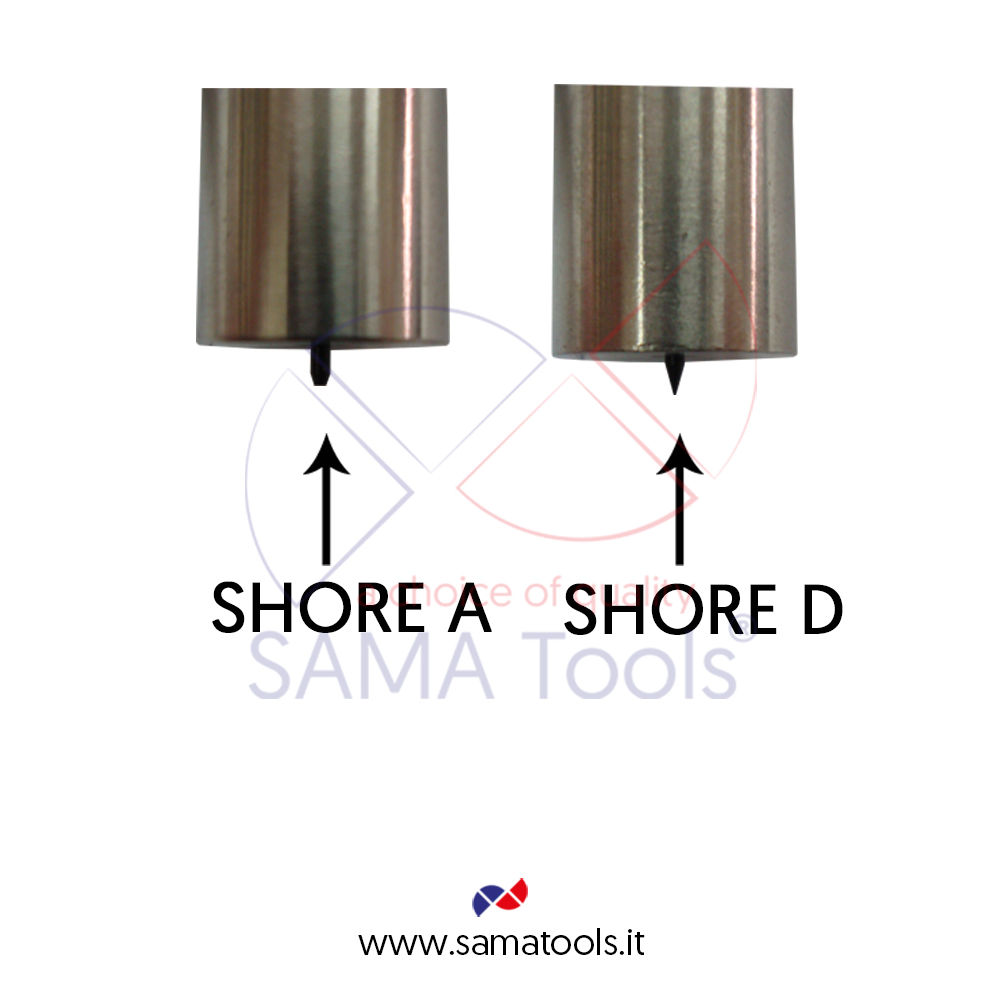

Measurement Scales:

Each Durometer Shore series SA6510 refers to a Shore scale (A,D) and can showvalues ​​between 0 and 100.

Shore A: Used to measure the hardness for softer materials such as: rubber, elastomers, and otherrubbery materials like neoprene, silicone and vinyl. It can also be used for: soft plastic, felt, leather and similar materials.

Shore D: Used to measure harder material compared to the A scale such as plastics, formica, epoxides and plexiglass.



Main characteristics:

  • Large LCD display for clear reading of the data
  • Possibility of statistical analysis (average value)
  • Simple execution quick calibration
  • Auto-off forpower saving





Modello / Model

SA6510A

SA6510D

Standard

ISO 868 ; ISO 7619-1 ; ISO 7267-2; ASTM D 2240 ; ISO/NP 48-7 ; NF T51-123 ; FIAT 50411

Tipo di scala /  Scales type

A

D

Applicazioni / Applications

Neoprene, common rubber, soft pvc, elastomers, leather, etc.

Formica, plexiglass, hard plastic,

plastic fibers, polyethylene etc.

Campo di misura / Measuring range

0 ~ 100 HS

Precisione / Accuracy

≤ ± 1 HS

Risoluzione / Resolution

0,1 HS

Parametri visualizzati / Displayed  parameters

Average value ; Max value ; Hardness value

Autospegnimento / Auto switch-off

Uscita dati / Data output

Indicatore batterie scariche

Low battery indicator

Alimentazione / Power supply

AAA batteries

Dimensioni / Dimensions

162 x 65 x 28 mm

Peso / Weight

160 g

173 g

Dotazione Standard / Standard Supply:
Unità centrale / Main unit
Provino di durezza metallico / Metallic test block
Valigetta / Carrying case
Manuale d’uso / User’s manual

Accessori Opzionali / Optional Accessories:

Cavo e software / Cable and software
Provini di durezza shore A / D / Shore test blocks A / D
Certificato di taratura / Calibration report
