Bench Xenon Accelerated Test Chamber

Bench Xenon Accelerated Test Chamber

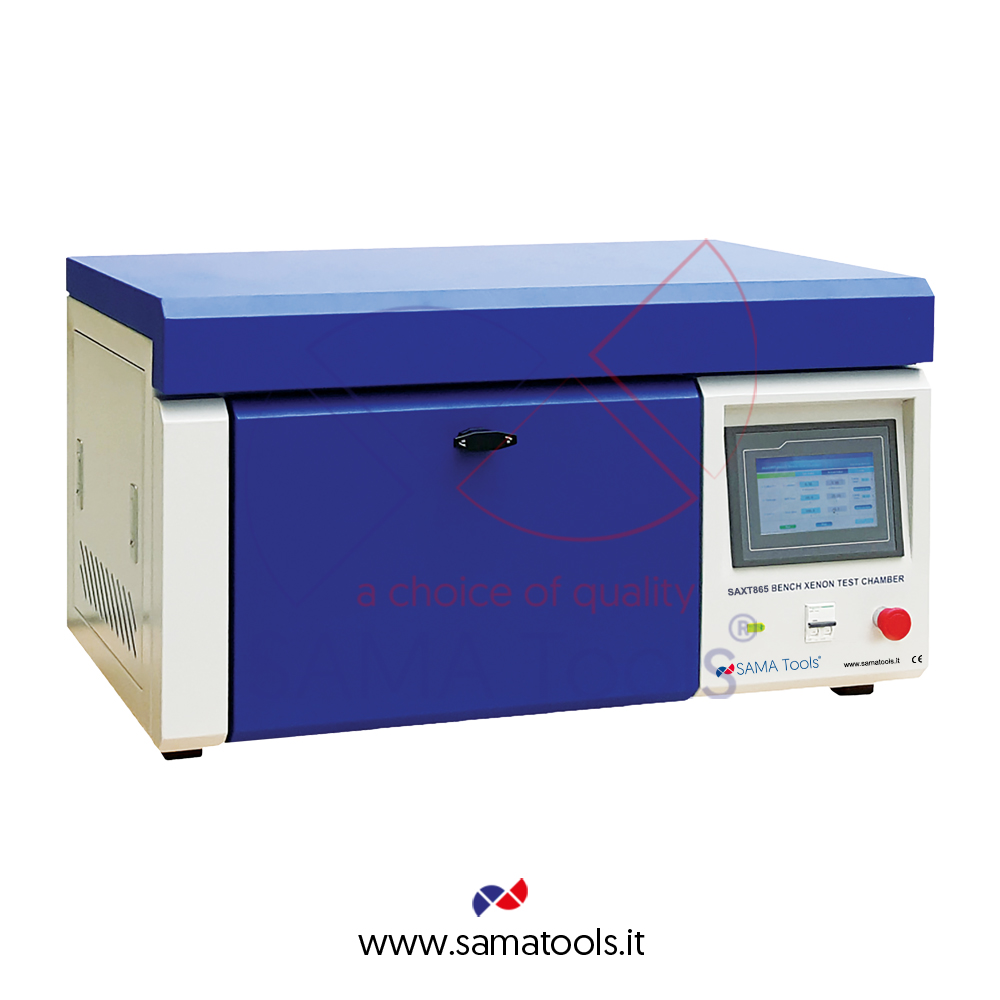

Bench Xenon Accelerated Test Chamber - SAXT865

SAXT865 is a easy-to-use and small-size xenon test chamber.  It uses an air-cooled Xenon lamp that, thanks to catoptrical system, guarantees a homogeneous distribution of irradiance for each exposed sample.

It is equipped with an extended UV filter which, by letting through a greater amount of UV rays than those that normally pass through the atmosphere, reproduces a faster and more severe test.

Operator can set all required test parameters (irradiance, test time, BPT) on touch screen and can check the running status at any time.

All test parameters can be exported to computer directly through the USB interface.

Modello / Model

SAXT865

Standard

ISO 12040 ; ISO 16474-1 ; ISO 16474-2 ; ISO 4892-1 ; ISO 4892-2 ; ISO 3917
ISO 105-B02 ; ISO 105-B04 ; ISO 105-B06

ASTM D 3451 ; ASTM D 3794 ; ASTM D 4303 ; ASTM D 6577

ASTM D 6695 ; ASTM G 151 ; ASTM G 155

Lampada Xenon

Xenon lamp

1.8 KW x 1pc (life about 1.500 hours)

Filtro

Filter

Extended UV -  (Optional: Daylight, window glass)

Area di esposizione campioni

Test panel exposure area

1.000 cm2 (9 pcs samples of 150×70mm)

Regolazione dell’irradiamento

Adjustable irradiance range

0.3 ~ 1 W/m2 (340nm)

0.5 ~ 1.8 W/m2 (420nm)

       50 W/m~ 120 W/m2 (300 ~ 400nm)

Spettro dell’irradiamento

Controlling irradiance point

340nm** or 420nm**

300nm ~ 400nm**
**(To choose before ordering)

Regolazione temperatura del pannello nero

Adjustment of black board temperature

+30 ~ +80°C

Alimentazione / Power supply

220 V

Potenza / Power

2.6KW

Dimensioni (LxPxA)

Size (LxWxH)

950 x 530 x 540 mm

Peso / Weight

93 Kg
