A Complete Guide to Plug & Ring Gauges

In industrial quality control, plug and ring gauges are indispensable tools for checking dimensions and ensuring that mechanical tolerances are met.

They are widely used in workshops, laboratories, and production environments, and provide a quick, reliable, and cost-effective way to inspect threads as well as internal and external diameters. They are also essential for calibrating measuring instruments such as three-point micrometers and bore gauges.

This guide explains:

1) What plug and ring gauges are and how they work;

2) What are the main types and thread standards;

3) How to choose the right model ;

4) When to calibrate;

5) Where to find professional tools you can trust;

6) FAQ (Frequently Asked Questions).

---

What Are Plug Gauges?

Plug gauges are measuring tools used to check threaded or smooth holes. They are usually manufactured in Go/No-Go versions:

• the Go side must fit into the hole smoothly and without effort or difficulty
• the No-Go side must not enter under any circumstances

This simple test confirms that the component has been machined within the required dimensional tolerances.

---

What Are Ring Gauges?

Ring gauges perform the opposite function: they are used to check that external diameters and threads—like those on screws or threaded shafts—meet the required specifications.

---

Common Thread Types

SAMA Tools offers a wide range of standard thread types to suit any application.

Metric threads:

• Coarse and fine pitch

Imperial and special threads:

• UNF, UNC, UNEF
• BSW, BSF, Whitworth
• Trapezoidal
• GAS, ISO 7/2
• NPT, NPTF

👉 Every thread type is available in plug and ring gauges, both standard and custom-made. See the complete list in our digital section.

How to Use Go/No-Go Plug and Ring Gauges

Using plug and ring gauges is simple, but it still requires care:

1. Thoroughly clean both the part and the gauge.
2. Test with the Go side: it should slide in easily.
3. Test with the No-Go side: it must not fit under any circumstances.
4. Record the test result.

This simple test ensures mechanical performance and maintains the quality of the production process.

👉 Would you like to speak to one of our technical specialists? Contact us here.

Care and Calibration

Since plug and ring gauges are subject to wear, they need to be regularly calibrated to make sure they stay within the required tolerances, following the standards.

---

Plug and Ring Gauges: Standard or Custom-Made?

Where to Buy Professional Plug and Ring Gauges

At SAMA Tools you’ll find a complete range of:

• Thread and plain Go/No-Go plug gauges

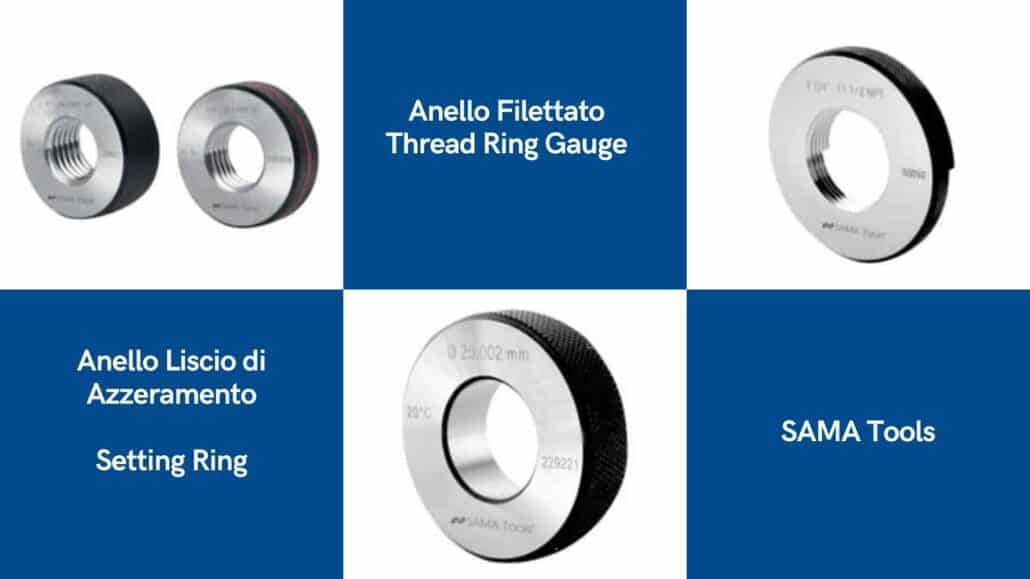

• Thread Go/No-Go and setting ring gauges
• Calibration, consulting, and customization services

👉 Explore our dedicated page: Plug and Ring Gauges – SAMA Tools

---

FAQ – Frequently Asked Questions

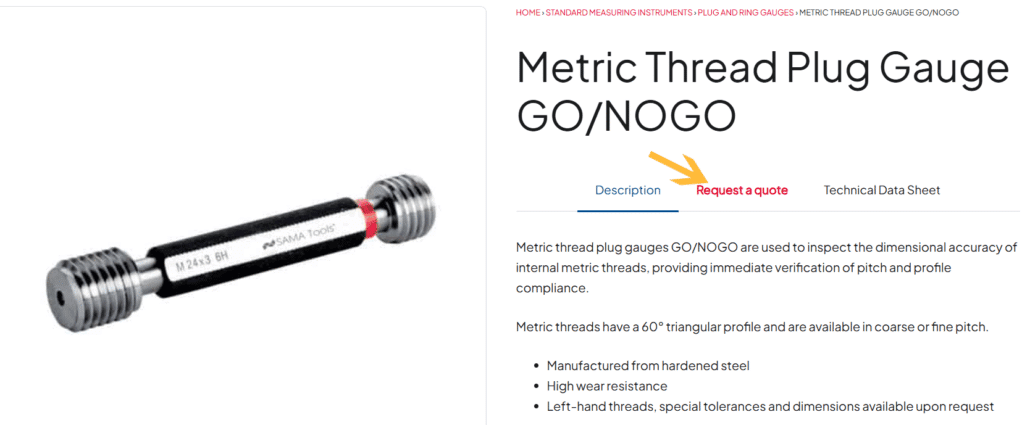

What is a Go/No-Go thread plug gauge?
It’s used to check whether an internal thread is compliant: the “Go” side should fit, while the “No-Go” side should not.

When should a setting ring be used?
They’re used to calibrate instruments like three-point micrometers or bore gauges.

Can I order plugs with special threads?
Yes, we also manufacture gauges based on your drawings or technical specifications.

Are calibration certificates available?
Yes, we provide calibration reports or ACCREDIA certificates upon request.

---
