Torque testers

Torque testers - SABTE

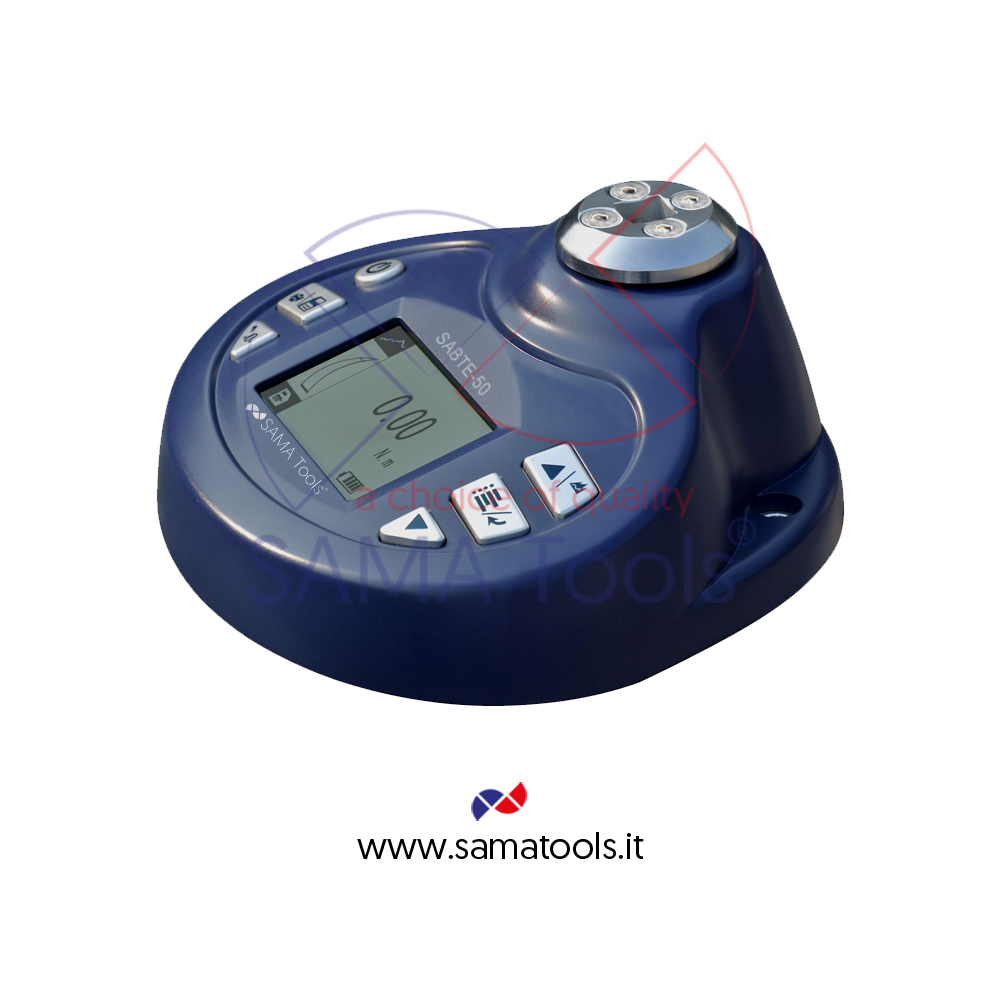

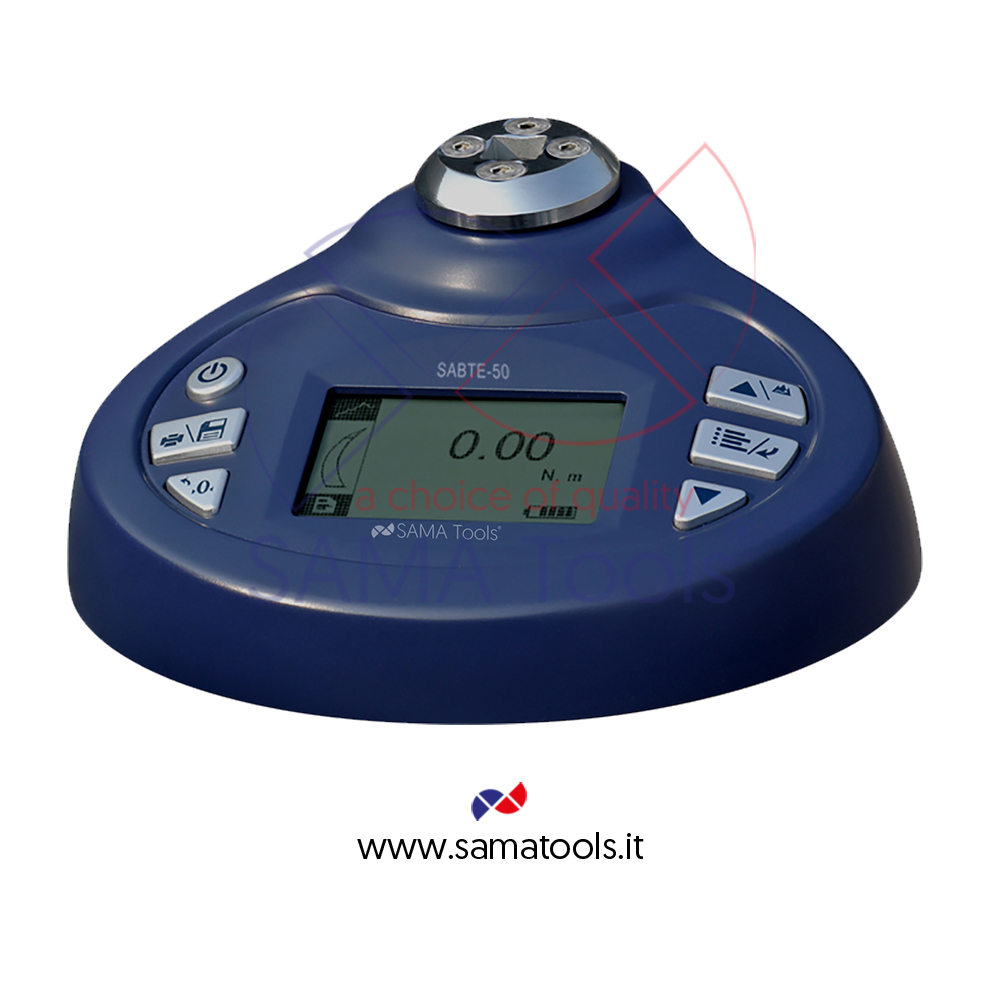

Digital torque Sabte series are highly professional instruments specifically designed to torque measurements.

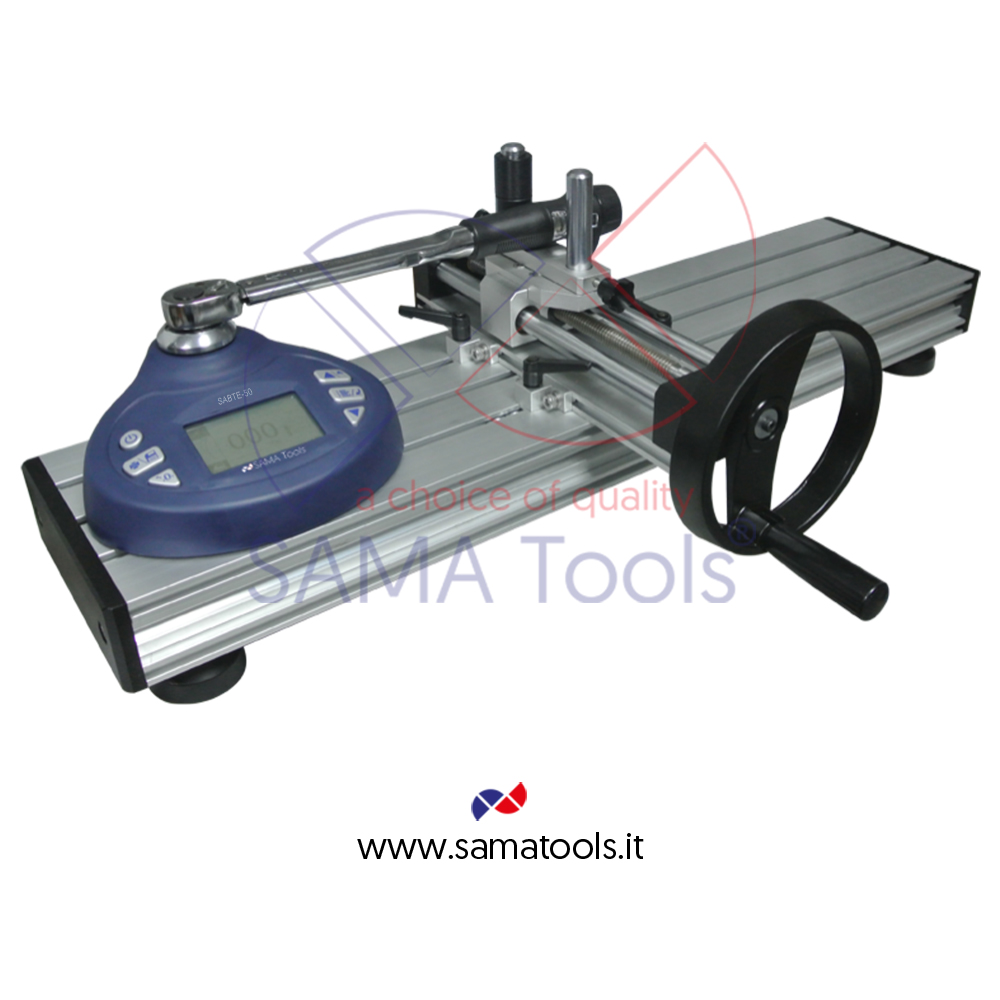

These tools are mainly used to test motorized or pneumatic screwdrivers, torque screwdrivers, torque wrenches, torque drivers, to monitor and calibrate instruments related or breakage testing. Main areas of application are: basic production plant, scientific research and all production sectors where it is necessary measure the torque force.

Modello Model	SABTE-02	SABTE-05	SABTE-10	SABTE-20	SABTE-50	SABTE-100
Capacità / Capacity	2 Nm	5 Nm	10 Nm	20 Nm	50 Nm	100 Nm
Attacco / Interface	1/2” - 1/4”			1/2” - 3/8”
Risoluzione Resolution	0,0002 Nm	0,0005 Nm	0,001 Nm	0,002 Nm	0,005 Nm	0,01 Nm
Carico minimo Min. load	5% F.S.
Precisione / Accuracy	± 0,3% F.S.
Unità di misura Measuring units	Nm ; cNm ; Kgf/cm ; lbf/ft ; lbf/in
Modalità schermo Display mode	Data and diagram
Modalità di misura Measuring mode	Track, Peak, First peak, Double peak, Preset, Auto peak
Memoria / Memory	1.000 values
Uscita dati Data output	√
Alimentazione Power Supply	Rechargeable battery

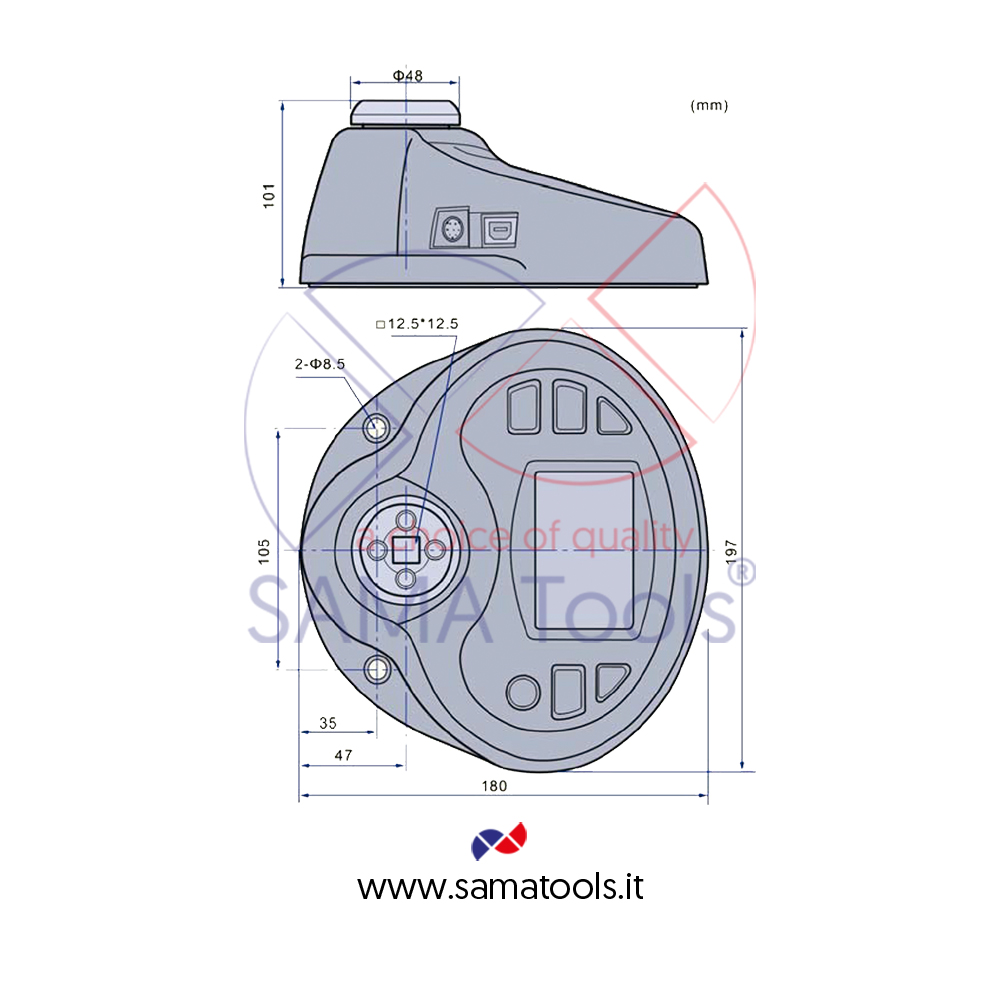

Dimensioni Dimension	220 x 180 x 80 mm
Peso / Weight	1,5 Kg
