Torque testers - SABTEX

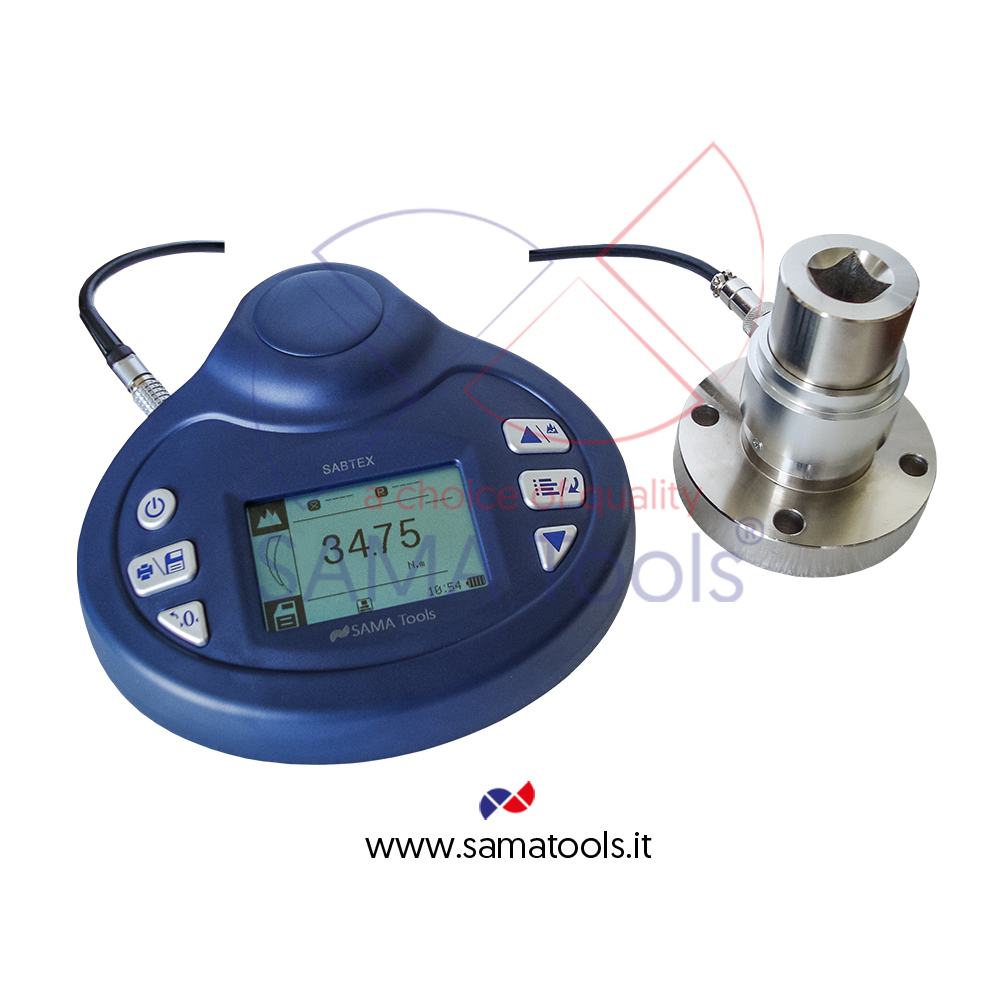

Digital torque Sabte series are highly professional instruments specifically designed to torque measurements.
These tools are mainly used to test motorized or pneumatic screwdrivers, torque screwdrivers, torque wrenches, torque drivers, to monitor and calibrate instruments related or breakage testing. Main areas of application are: basic production plant, scientific research and all production sectors where it is necessary measure the torque force.
|
Modello Model |
SABTEX- |
||||||||
|
05 |
10 |
20 |
50 |
100 |
200 |
500 |
800 |
1000 |
|
|
Capacità / Capacity |
0,5 / 5 Nm |
1 / 10 Nm |
2 / 20 Nm |
5 / 50 Nm |
10 / 100 Nm |
20 / 200 Nm |
50 / 500 Nm |
80 / 800 Nm |
100 / 1000 Nm |
|
Attacco / Interface |
1/2” - 1/4” |
1/2” - 3/8” |
3/4” |
1" |
|||||
|
Risoluzione Resolution |
0,0005 Nm |
0,001 Nm |
0,002 Nm |
0,005 Nm |
0,01 Nm |
0,02 Nm |
0,05 Nm |
0,1 Nm |
|
|
Carico minimo Min. load |
10% F.S. |
||||||||
|
Precisione / Accuracy |
± 0,3% (range 10~100% F.S.)
|
||||||||
|
Unità di misura Measuring units |
Nm ; Ncm ; Kgf/cm ; lbf/ft ; lbf/in |
||||||||
|
Modalità schermo Display mode |
Data and diagram |
||||||||
|
Modalità di misura Measuring mode |
Track ; Peak ; First peak ; Double peak ; Preset ; Auto peak |
||||||||
|
Memoria / Memory |
1.000 values |
||||||||
|
Uscita dati Data output |
√ |
||||||||
|
Alimentazione Power Supply |
Rechargeable battery |
||||||||
|

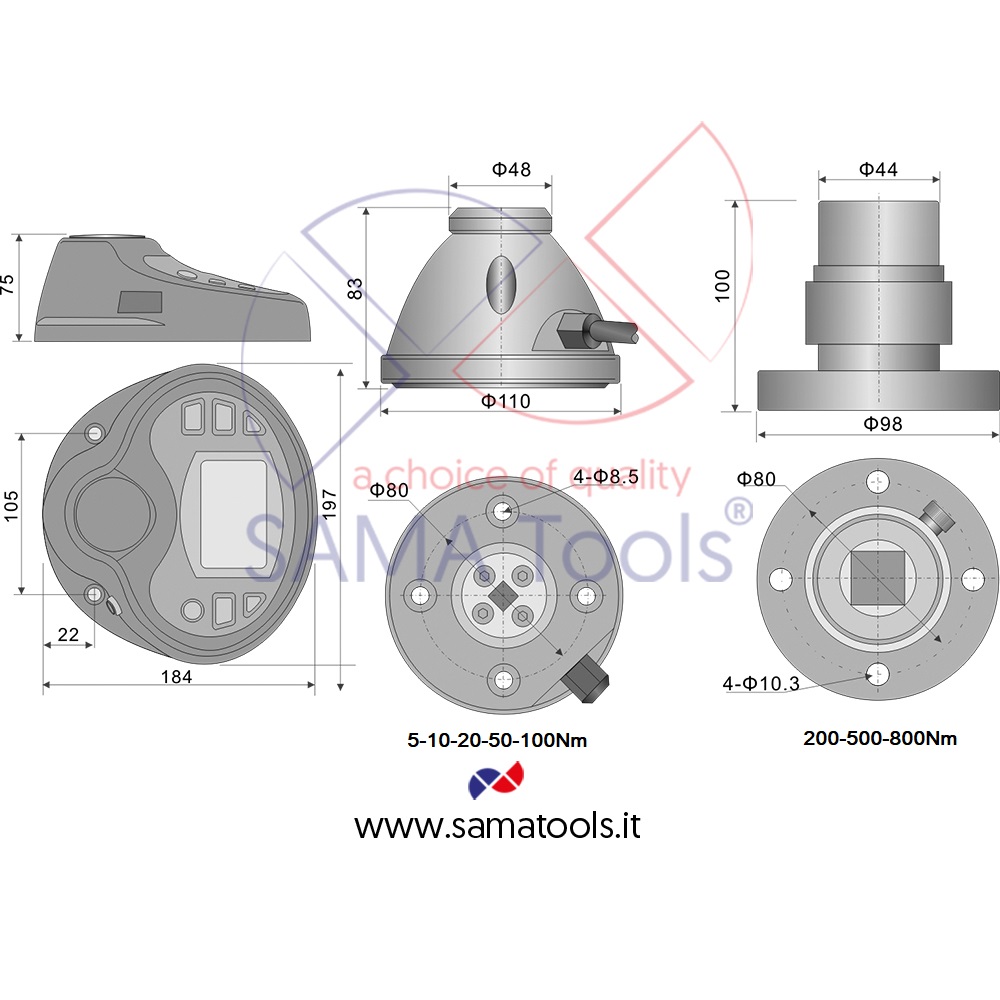

Dimensioni Dimension |
197 x 184 x 75 mm (main unit) |
||||||||
|
Peso / Weight |
1 Kg (main unit) |
||||||||
Dotazione Standard / Standard Supply:
Unità centrale / Main unit
Riduttore attacco quadro / Square adapter
Cavo e software / Cable and software
Manuale d’uso / User’s manual
Accessori Opzionali / Optional Accessories:
Stampante / Printer
Simulatori di giunto / Run down adapters

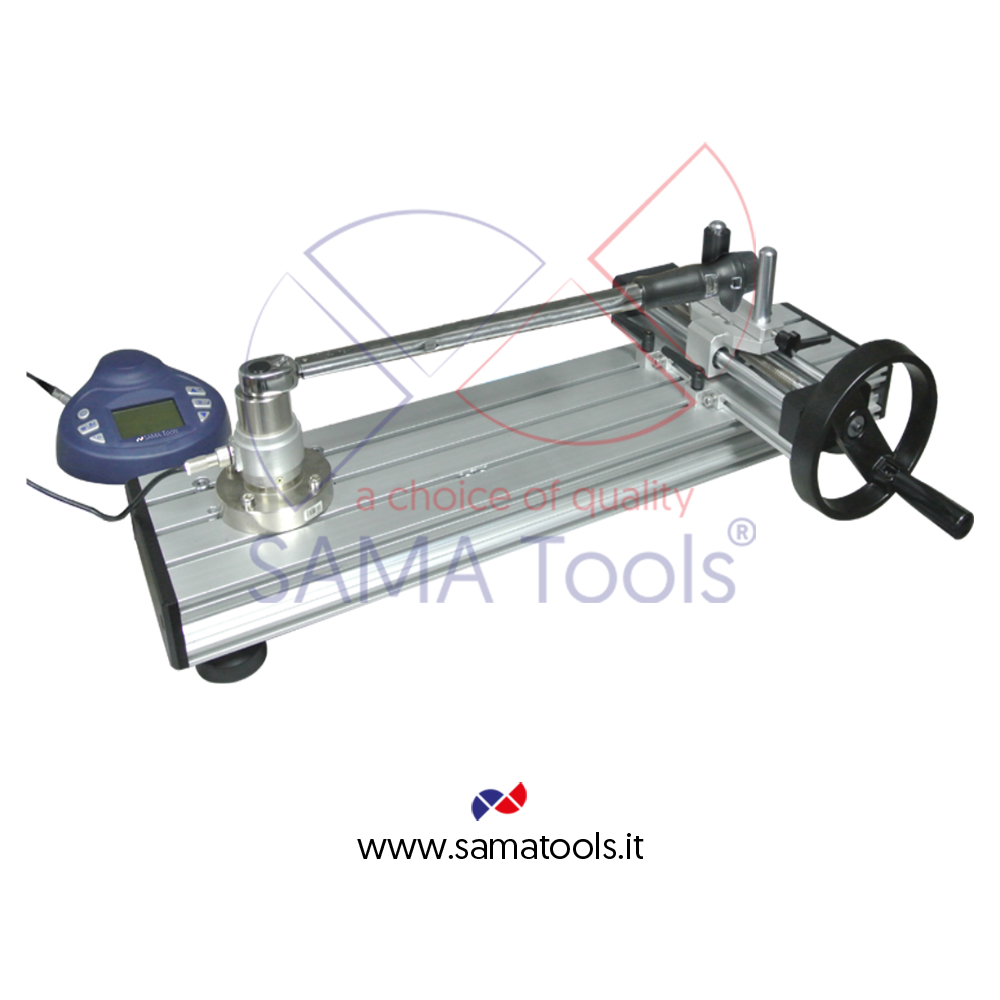

Banco per il controllo SABTC / SABTC Torque test stand
Certificato di taratura / Calibration report
