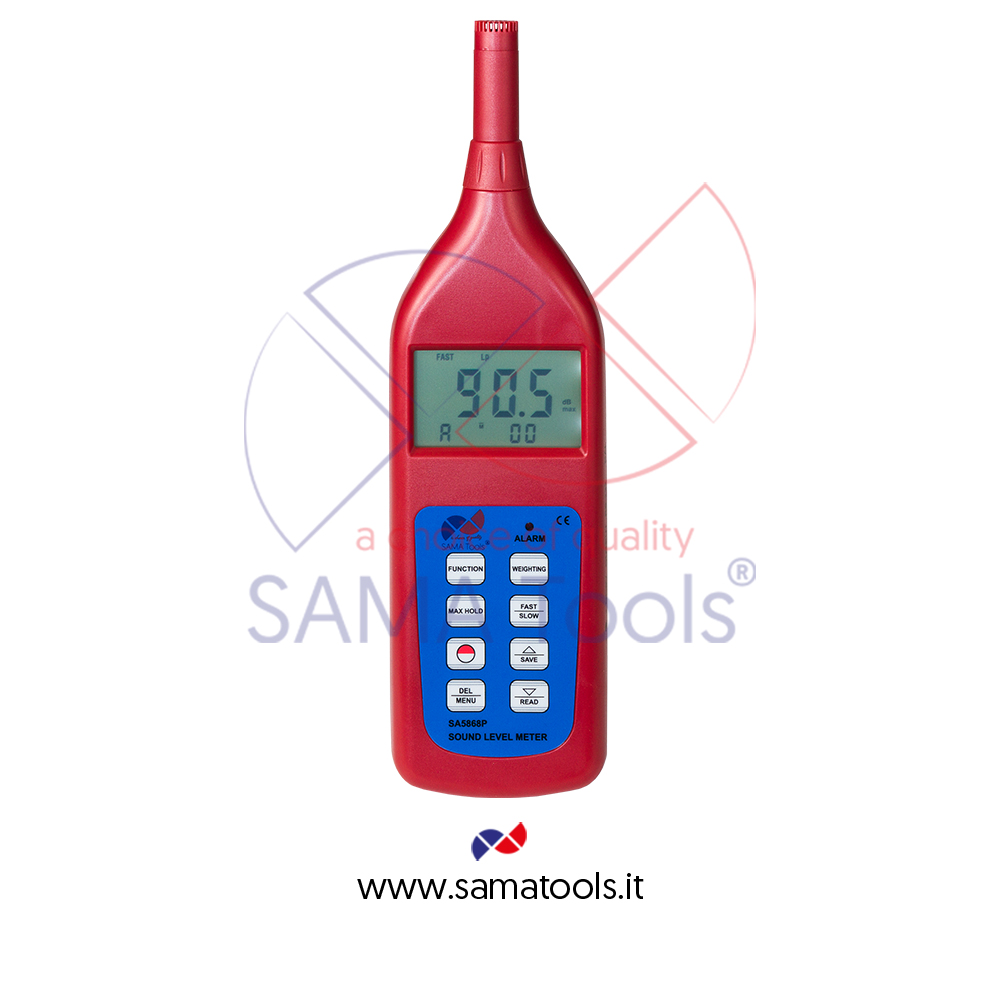

Sound level meter - SA5868P
Device used to measure the sound pressure level. 3 operation modes respectively permit to determine the noise level in dB, the equivalent sound level (Leq) in a certain lapse of time and to perform a statistical analysis on sound data (Ln).
The internal memory, the ease of use and the opportunity to interface the instrument with a PC (through optional cable & Software) make of it the perfect choice to run internal controls in every industrial field.
|
Modello / Model |
SA5868P |
||
|
Standard |
IEC 61672-1 , ANSI/ASA S1.4 |
||
|
Funzioni Functions |
Lp ( Pressione sonora / Sound level) |
√ |
|
|
Leq ( Energia sonora complessiva / Equivalent continuous sound level ) |
√ |
||
|
Lmax (Massimo livello sonoro / Maximum Sound Level) |
√ |
||
|
Ln ( Statistica dato sonoro / % of all readings over alarm value set) |
√ |
||
|
Campo di misura Measuring range
|
Lp |
A |
30 ~ 130 dB |
|
C |
35 ~ 130 dB |
||
|
Line |
40 ~ 130 dB |
||
|
Leq |
30 ~ 130 dB ( 10sec, 1min, 5min, 10min, 15min, 30min, 1h, 8h, 24h ) |
||
|
Ln |
0 ~ 100% |
||
|
Risoluzione / Resolution |
0,1 dB |
||
|
Precisione / Accuracy |
1 dB |
||
|
Modalità misurazione / Measurement mode |
Fast (125 ms) / Slow (1 Second) |
||
|
Microfono / Microphone |
1/2” Condenser Type |
||
|
Frequenza / Frequency Range |
A / C / F (Flat) 20 ~ 12,500 Hz |
||
|
Calibrazione / Calibration |
94 dB at 1 KHz (sinusoidal) |
||
|
Valore di allarme / Alarm value |
30 ~ 130 dB |
||
|
Output allarme / Alarm output |
Relay |
||
|
Memoria / Memory |
30 values |
||
|
Uscita dati / Data output |
√ |
||
|
Autospegnimento / Auto switch-off |
√ |
||
|
Alimentazione / Power supply |
AAA batteries |
||
|
Dimensioni / Dimensions |
236 x 63 x 26 mm |
||
|
Peso / Weight |
170 g |
||
Dotazione Standard / Standard Supply:
Unità centrale / Main unit
Cuffia antivento / Windscreen
Cavo e software / Cable and software
Valigetta / Carrying case
Manuale d’uso / User’s manual
Accessori Opzionali / Optional Accessories:
Cavo e software / Cable and software
Calibratore per fonometro / Sound level meter calibrator
Certificato di taratura / Calibration report
