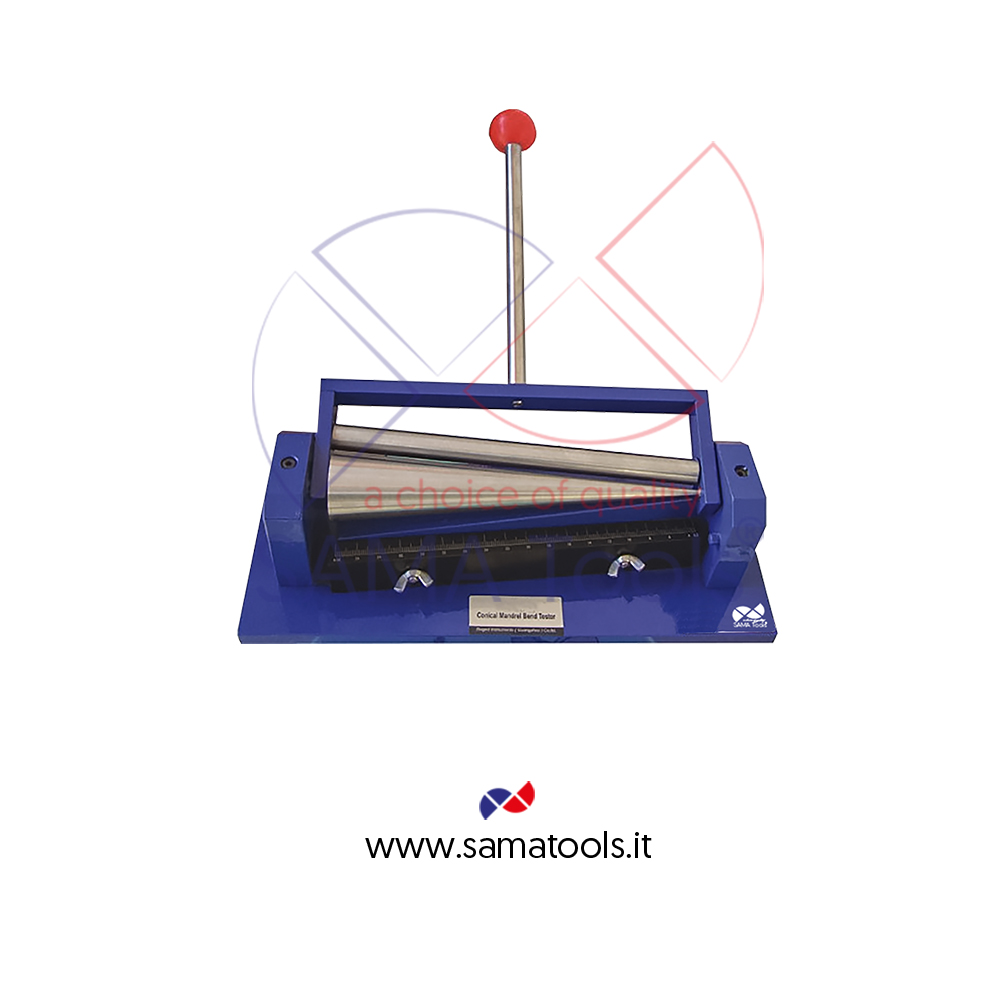

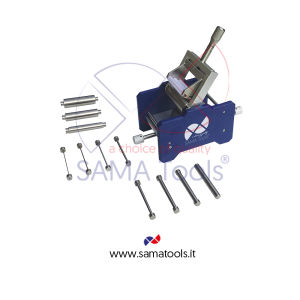

Paint film bend testers - SA564-SA566-SA568
Coating bend tester are widely employed to determine the coating crack resistance or the stripping performance, by bending the sample around the conical mandrel. Measurement procedures are very easy to perform, and can be based on the following two methods: "pass/fail" or "diameter to failure".
|
Modello / Model |
SA566 |
|
Standard |
ISO 6860 - ASTM D 522-A |
|
Diametro mandrino / Mandrel diameter |
3,1 ~ 38 ± 0,1 mm (conical) |
|
Lunghezza mandrino / Mandrel length |
203 mm |
|
Materiale mandrini / Mandrels material |
High hardness stainless steel |
|
Dimensioni campione Test panel dimensions |
< 200 x 75 mm |
|
Spessore campione / Test panel thickness |
≤ 0,8 mm |
|
Dimensioni / Dimensions |
300 x 120 x 83 mm |
|
Peso / Weight |
7 Kg |
Dotazione Standard / Standard Supply:
Unità centrale / Main unit
Mandrino/i / Mandrel/s
Manuale d’uso / User’s manual
Accessori Opzionali / Optional Accessories:
Certificato di taratura / Calibration report
