Magnetoscope - SAYK390

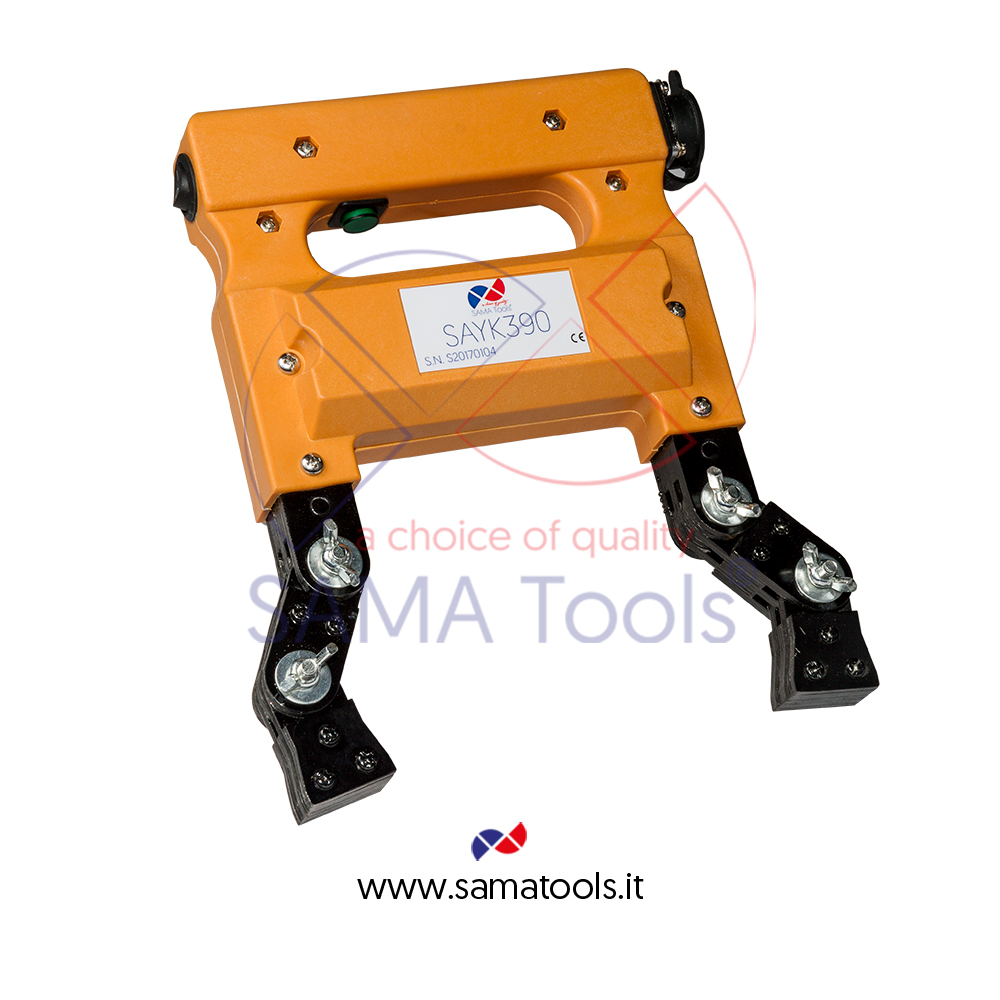

Electromagnetic GIOGO “ yoke portable magnetoscope” AC/DC can be used with batteries or electrically powered with direct 220V.
Thanks to its magnetic special powder, is indicated for the search of superficial/sub-superficial flaws like cracks,inclusions on ferromagnetic materials.
Thanks to its small size and to its weight it can be used on restricted areas.
|
Modello / Model |
SAYK390 |
|
|
Standard |
ISO 9934-3 ; ASME V-7 ; ASTM E 709 ; ASTM E 1444 ; MIL-M-6867 ; MIL-I-6868 ; AMS |
|
|
Forza sollevamento Lifting force |
AC |
> 5,5 kg |
|
DC |
> 26 kg |
|
|
Distanza Polare / Inter polar distance |
50 ~ 200 mm |
|
|
Corrente di lavoro / Working current |
AC 1,4 A ; DC 1,7 A |
|
|
Intervallo di lavoro / Working interval |
60 sec. ON ; 60 sec. OFF |
|
|
Batteria / Battery |
12 V 7,2 A/h |
|
|
Autonomia / Battery life |
> 6 h |
|
|
Tempo di ricarica / Charging time |
8 ~ 15 h |
|
|
Alimentazione / Power supply |
220 Vac or 12 Vdc |
|
|
Dimensioni Dimensions |
Sonda / Probe |
208 x 52 x 146 mm |
|
Pacco Batteria Battery pack |
160 x 100 x 70 mm |
|
|
Peso Weight |
Sonda / Probe |
3,2 Kg |
|
Pacco Batteria Battery bag |
2,9 Kg |
|

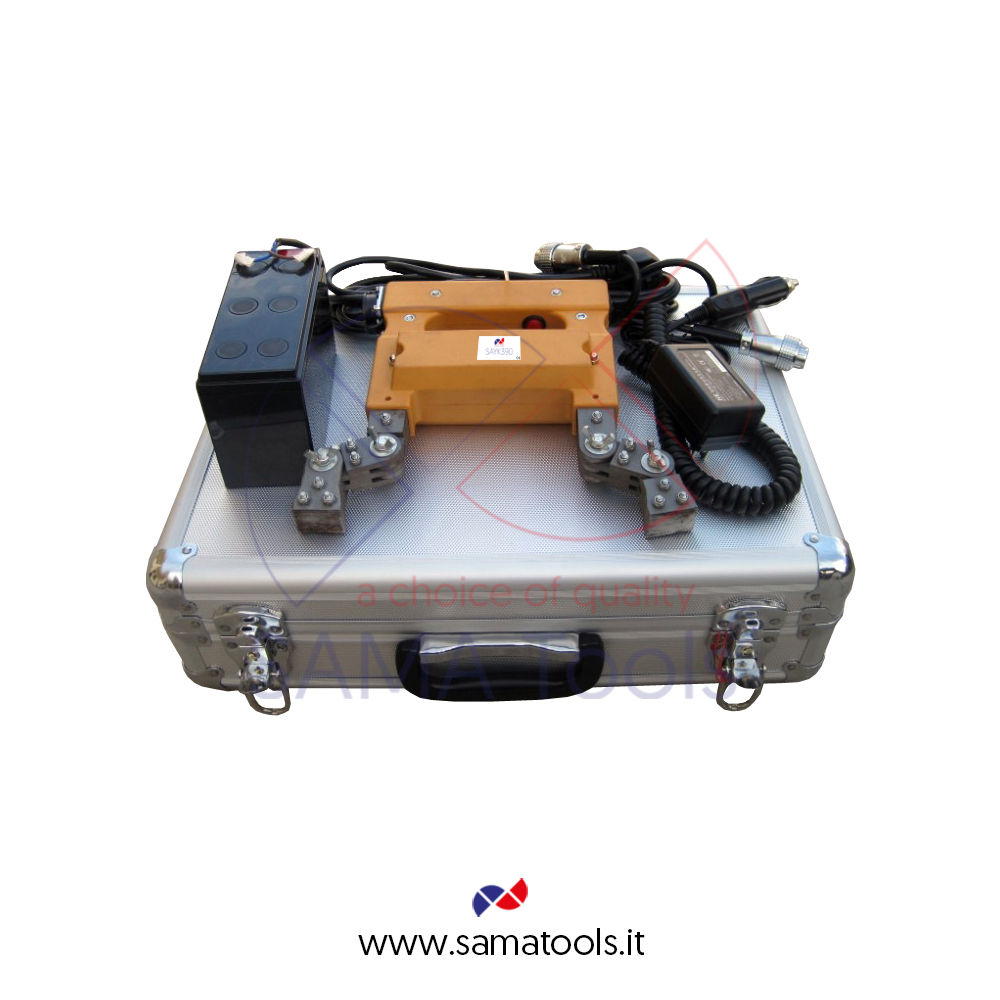

Dotazione Standard / Standard Supply:
Unità centrale / Main unit
Cavo alimentatore AC220V / AC lines AC220V
Cavo alimentatore DC12V / DC12V Power Cable
Pacco batteria / Battery pack

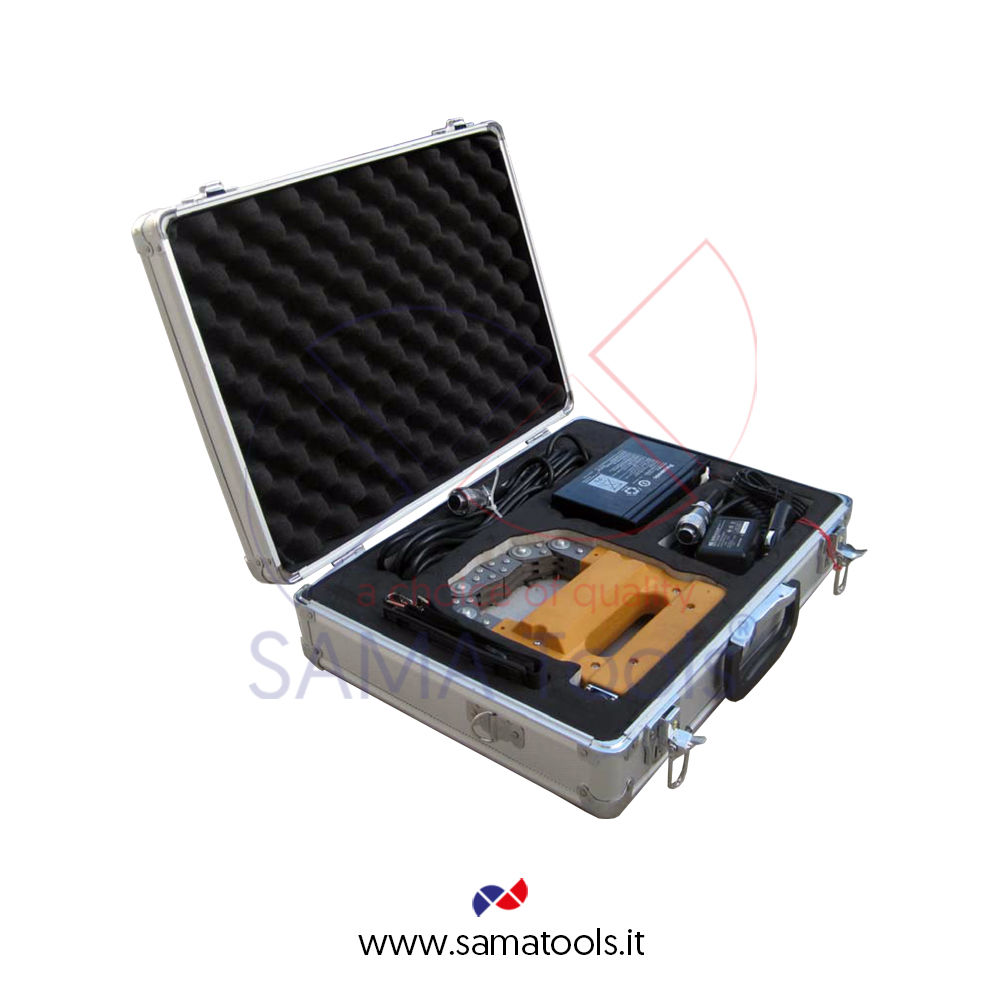

Valigetta / Carrying case
Manuale d’uso / User’s manual
Accessori Opzionali / Optional Accessories:
Spray magnetico nero / Black magnetic spray
Spray lacca bianca / White contrast varnish spray
Pesi campione / Weights block
Certificato di taratura / Calibration report
