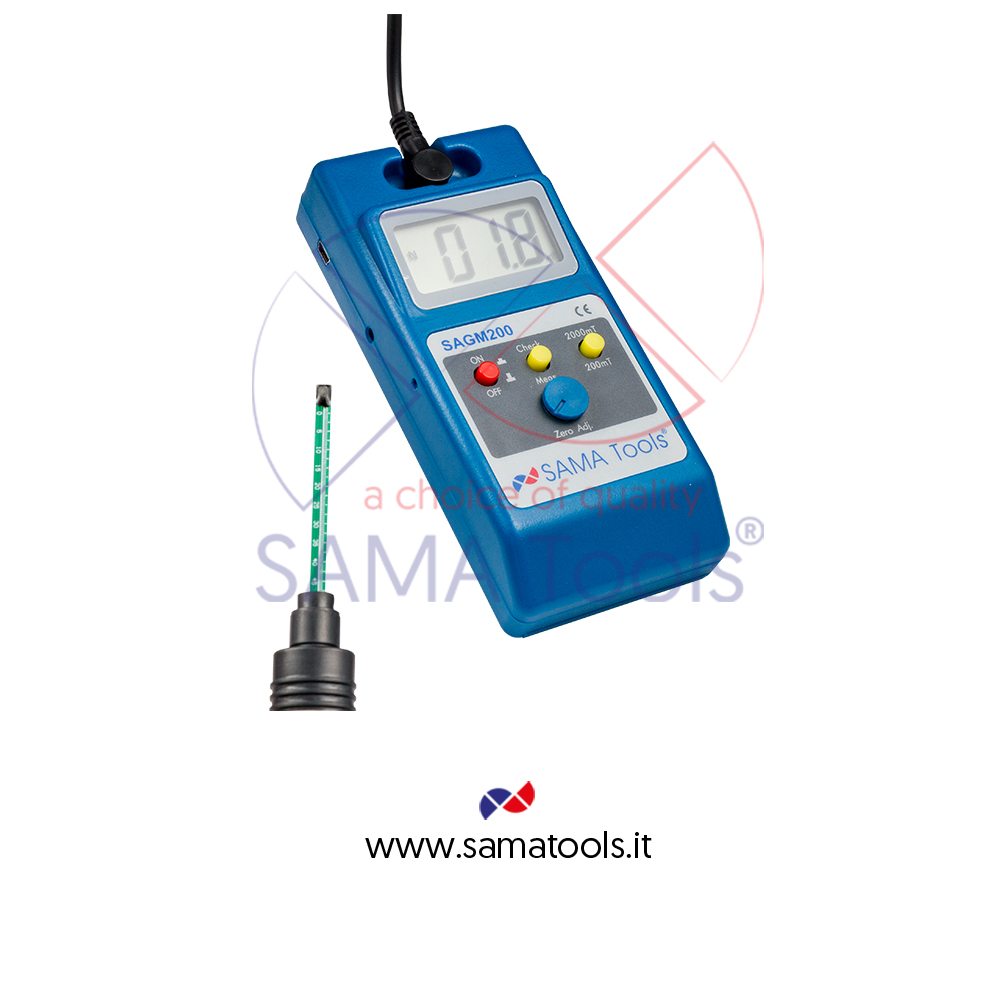

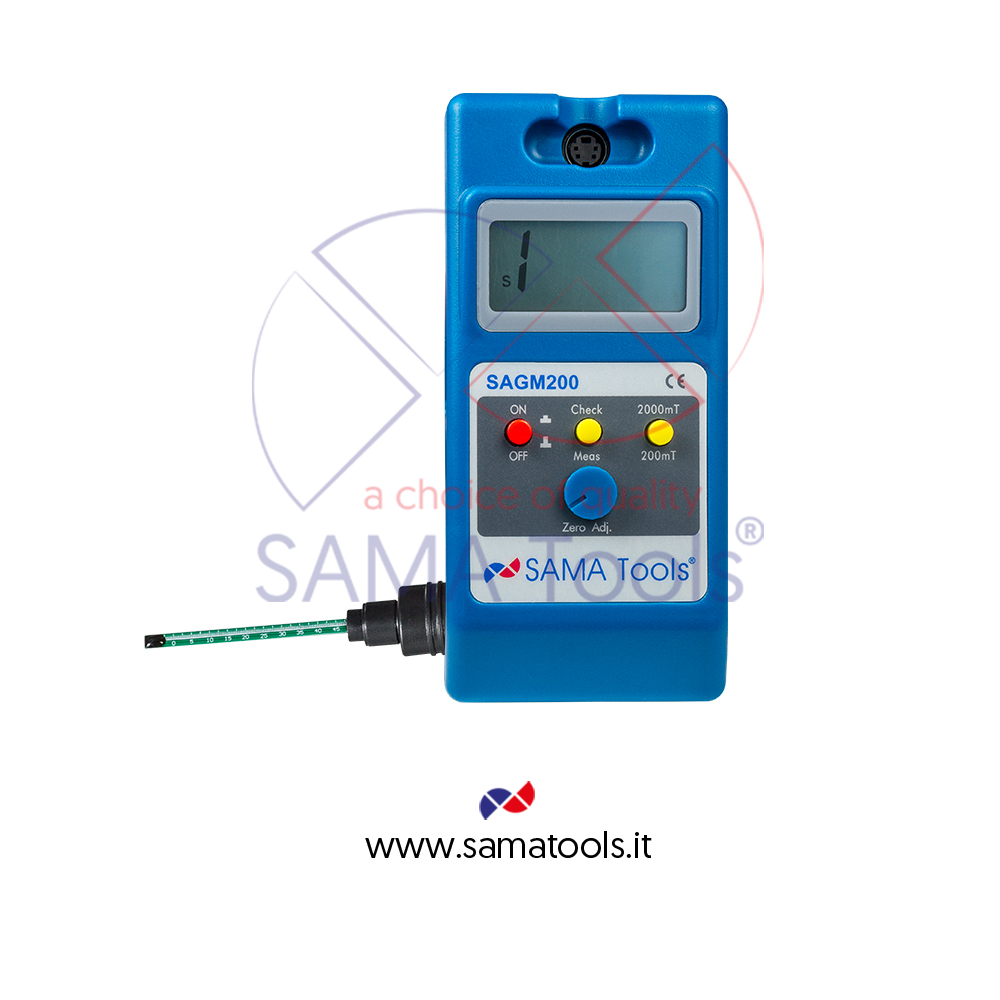

Digital Gaussmeter - SAGM200
Portable gaussmeter can be used with our SAYK390 magnetic detector to detect the residual magnetic field or any other necessity during quality control and inbound goods acceptance. The instrument can also indicate the polarity of the magnetic field.
Modello/Model |
SAGM200 |
Campo di misura / Measuring range |
0 ~ 200 mT ; 0 ~ 2.000 mT [ 1 mT = 10 G = 0,7977 kA/m ] |
Risoluzione / Resolution |
0,1 mT ( ≤ 200 mT ) ; 1 mT ( > 200 mT ) |
Precisione / Accuracy |
± 1% |
Coefficiente di errore temperatura / Temperature coefficient error |
-0,06% / °C |
Alimentazione / Power supply |
AA batteries |
Dimensioni / Dimensions |
150 x 70 x 25 mm |
Peso / Weight |
120 g |
Dotazione Standard / Standard Supply:
Unità centrale / Main unit
Sonda / Probe
Valigetta / Carrying case
Manuale d'uso / User/s manual
Accessori Opzionali / Optional Accessories:
Sonda verticale / Vertical probe
Certificato di taratura / Calibration report
