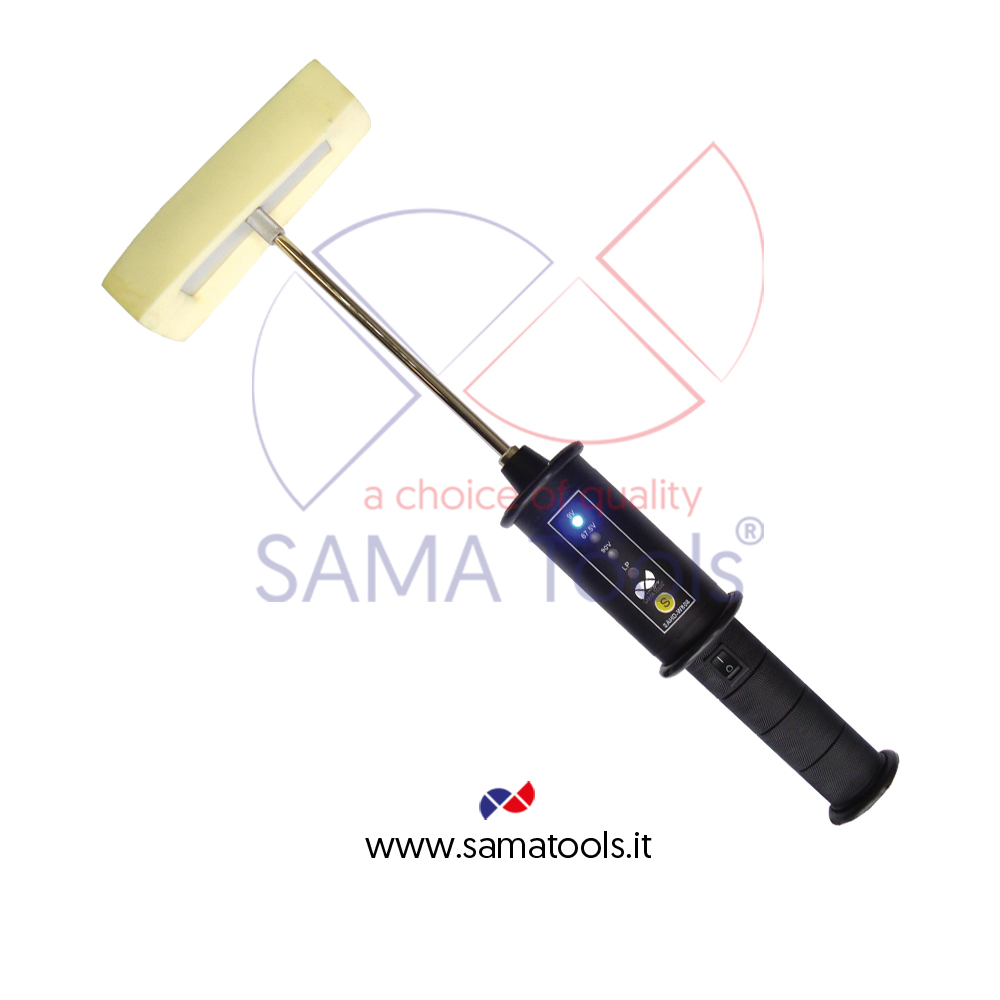

Holyday detectors – SAHD-WS03
This kind of holiday detector employs the wet sponge method, suitable to checking insulation coatings less than 500μm on conductive substrates. A low voltage is applied to the wet sponge, moving on the surface the liquid penetrates the substrate that closes a circuit and detects the defect.
|
Modello / Model |
SAHD-WS03 |
|
Standard |
AS 3894,2; ASTM D 5162-A; ASTM G 6 |
|
Campo di misura Measuring range |
9 V – 300 µm 67,5 V – 500 µm 90 V – 500 µm |
|
Voltaggio / Voltage |
9 V ; 67,5 V ; 90 V |
|
Sensibilità / Sensitivity |
9 V : 90 KΩ ± 5% 67,5 V : 125 KΩ ± 5% 90 V : 400 KΩ ± 5% |
|
Sonda / Probe |
Wet sponge |
|
Uscita cuffie / Earphones output |
-- |
|
Indicatore tensione Voltage indicator |
LED |
|
Allarme / Alarm |
Dual alarm: vsible signal and audio alarm |
|
Dimensione spugna Sponge size |
170 x 70 x 30 mm |
|
Lunghezza asta Length of probe stick |
195 mm |
|
Alimentazione / Power supply |
Rechargeable battery |
|
Dimensioni / Dimensions |
Ø 53 x 290 mm |
|
Peso / Weight |
530 g |
Dotazione Standard / Standard Supply:
Unità centrale / Main unit
Sonda a spugna / Sponge probes
Asta / Rod
Cavo di massa / Earth lead
Valigetta / Carrying case
Manuale d’uso / User's manual
Accessori Opzionali / Optional Accessories:
Certificato di taratura / Calibration report
