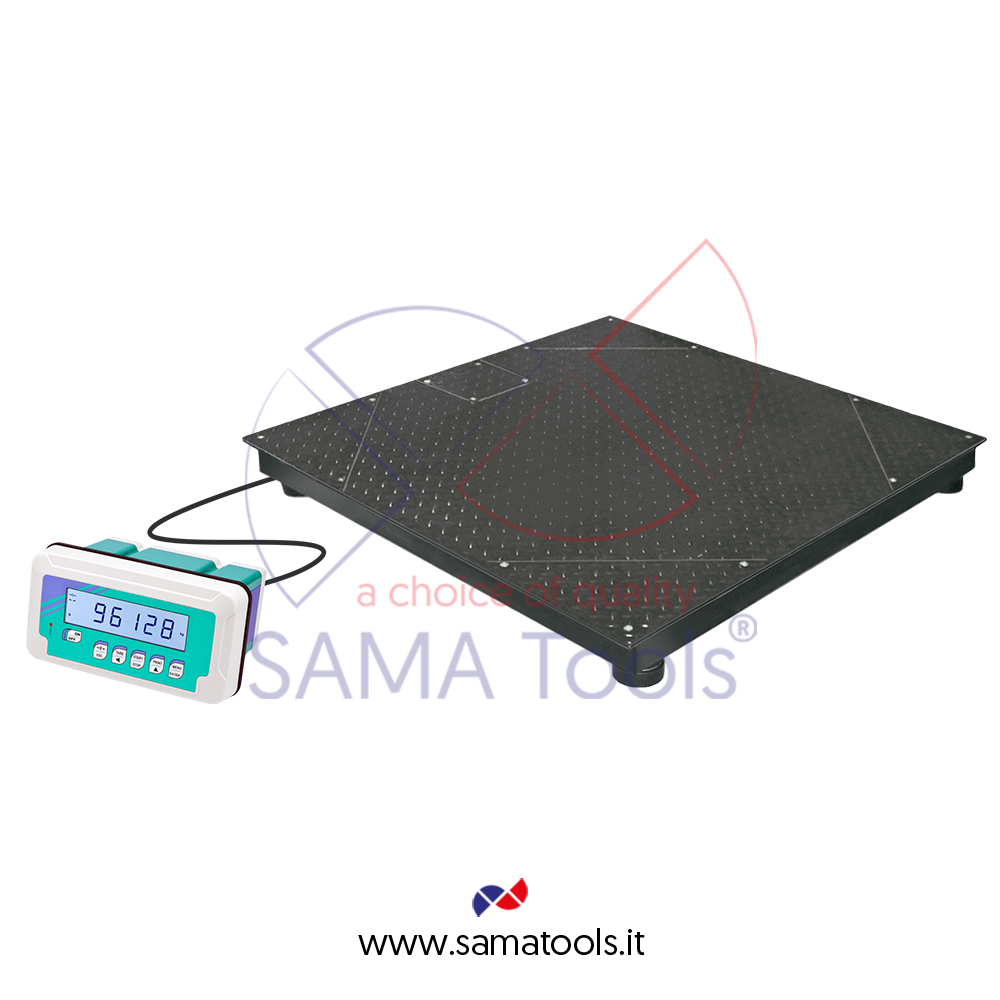

Scales with four cell platform and WS-WDL indicator - WSP-WDL
Painted steel structure
Junction box and cells inspectable
4 stainless steel load cell IP68
IP67 stainless steel junction box
Galvanized self-centering feet
Threaded holes for lifting
|
Cod. prodotto Product code |

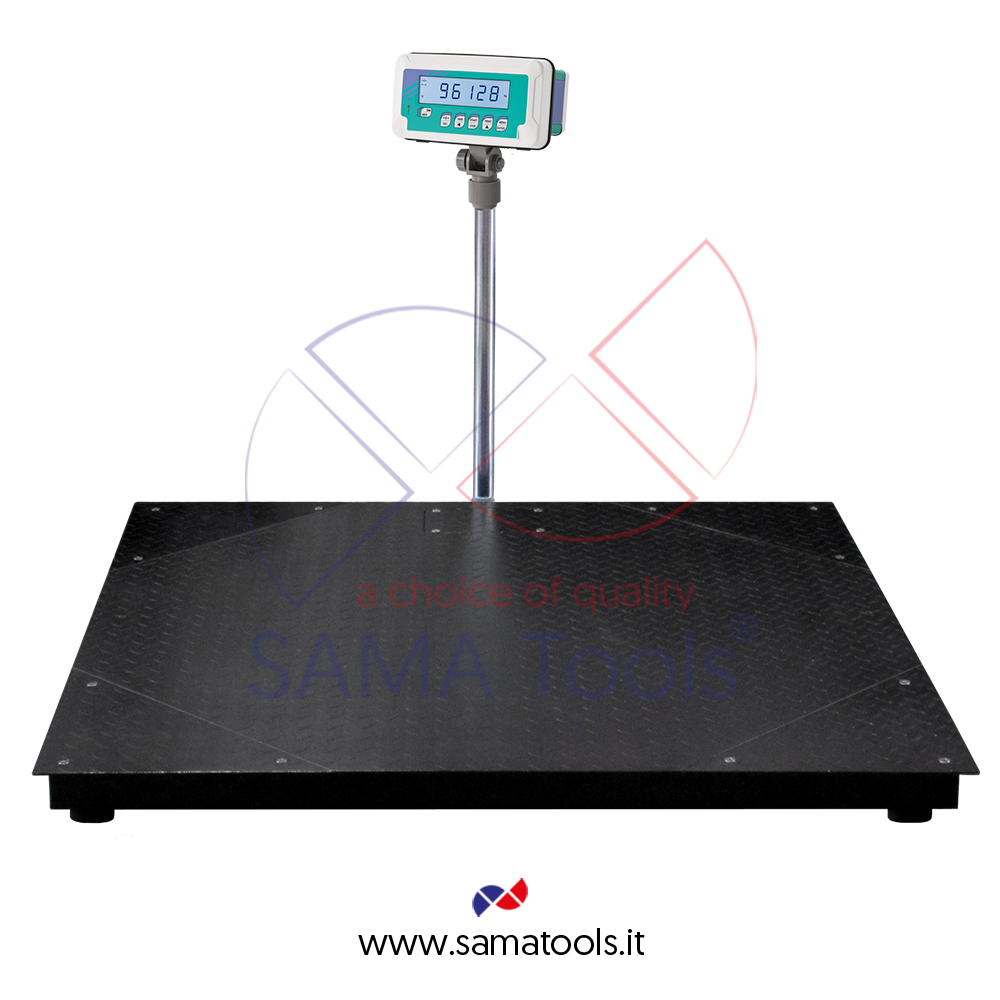

Cod. prodotto (con colonna) Product code (with column) |
Portata Piattaforma(Kg) Platform range |
Divisione piattaforma(g) Platform division |
Piattaforma (mm) Platform |
B (mm) |
C (mm) |
D (mm) |
|
WSP-1250WDLA* |
WSP-1250WDLA/C* |
1500 |
100 |
1250 X 1250 |
1115 |
1210 |
90 - 105 |
|
WSP-1215WDLA* |
WSP-1215WDLA/C* |
1200 X 1500 |
1065 |
1160 |
|||
|
WSP-1500WDLA* |
WSP-1500WDLA/C* |
1500 X 1500 |
1370 |
1460 |
|||
|
WSP-1250WDLB* |
WSP-1250WDLB/C* |
3000 |
200 |
1250 X 1250 |
1115 |
1210 |
|
|
WSP-1215WDLB* |
WSP-1215WDLB/C* |
1200 X 1500 |
1065 |
1160 |
|||
|
WSP-1500WDLB* |
WSP-1500WDLB/C* |
1500 X 1500 |
1370 |
1460 |
(*) A richiesta disponibili versioni OMOLOGATE CE-M fornite con sigillo metrico (Verifica iniziale)
CE-M APPROVED versions equipped with metric seal (Initial verification) Available on request
