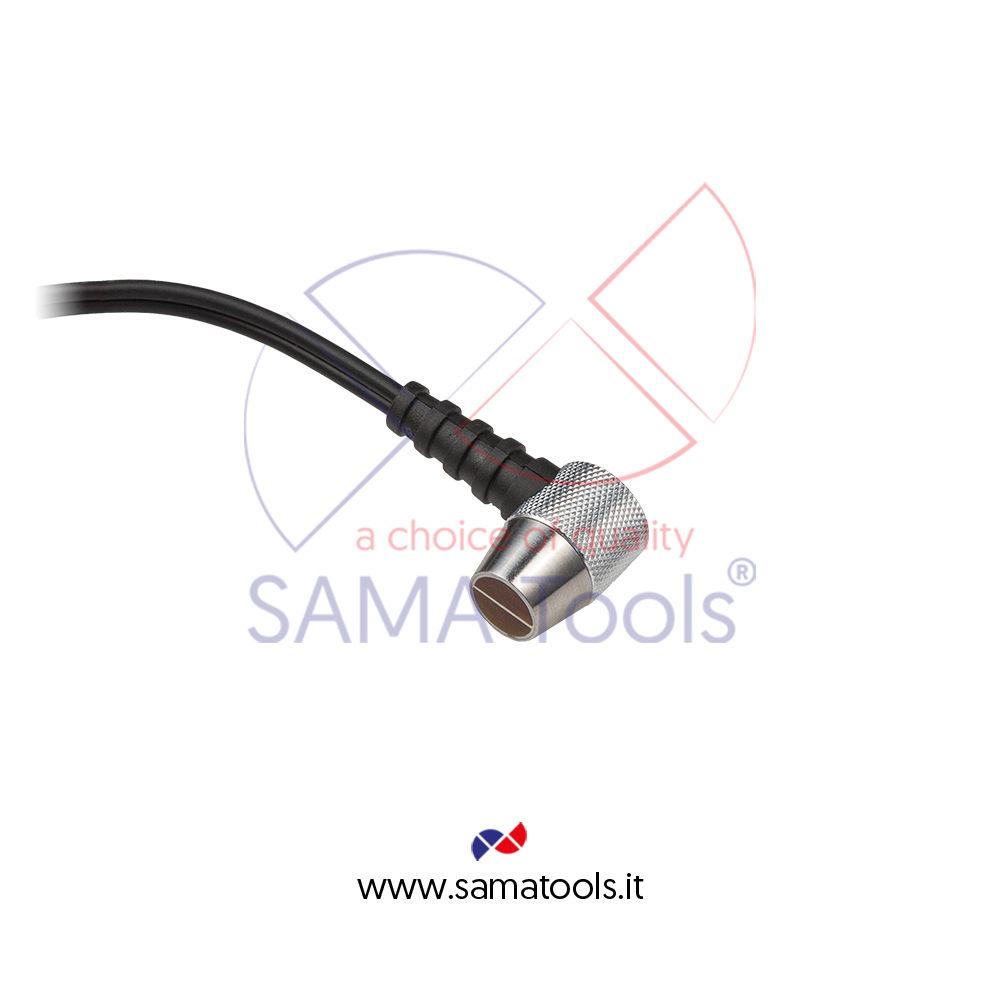

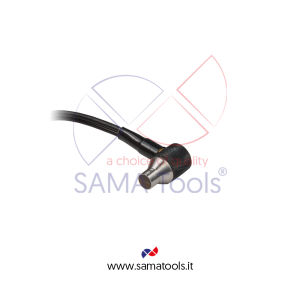

P05/90° probe - SA-PBN05/90
For ultrasonic thickness gauges for SAUT160/150
|
SAUT160 - Probes table |
|||||
|
Model |
Freq. Mhz |
Φ mm |
Measuring range (steel) |
Minimum measurable Φ |
Usage |
|
SAPBN-02 |
2 |
22 |
3.0-300.0mm |
20×3.0mm |
High penetration probe for thick, ultrasonic mitigating or dispersing materials |
|
SAPBN-05 |
5 |
10 |
1.2-230.0mm |
20×3.0mm |
Standard |
|
SAPBN -05/90° |
5 |
10 |
1.2-230.0mm |
20×3.0mm |
Standard /90° |
|
SAPBN-07 |
7 |
6 |
0.75-30.0mm |
15×2.0mm |
Thin pipes or with small curvature radius |
|
SAPBN-HT5 |
5 |
14 |
3.0-200.0mm |
30x3.0mm |
High temperature probe, up to 300°C |
