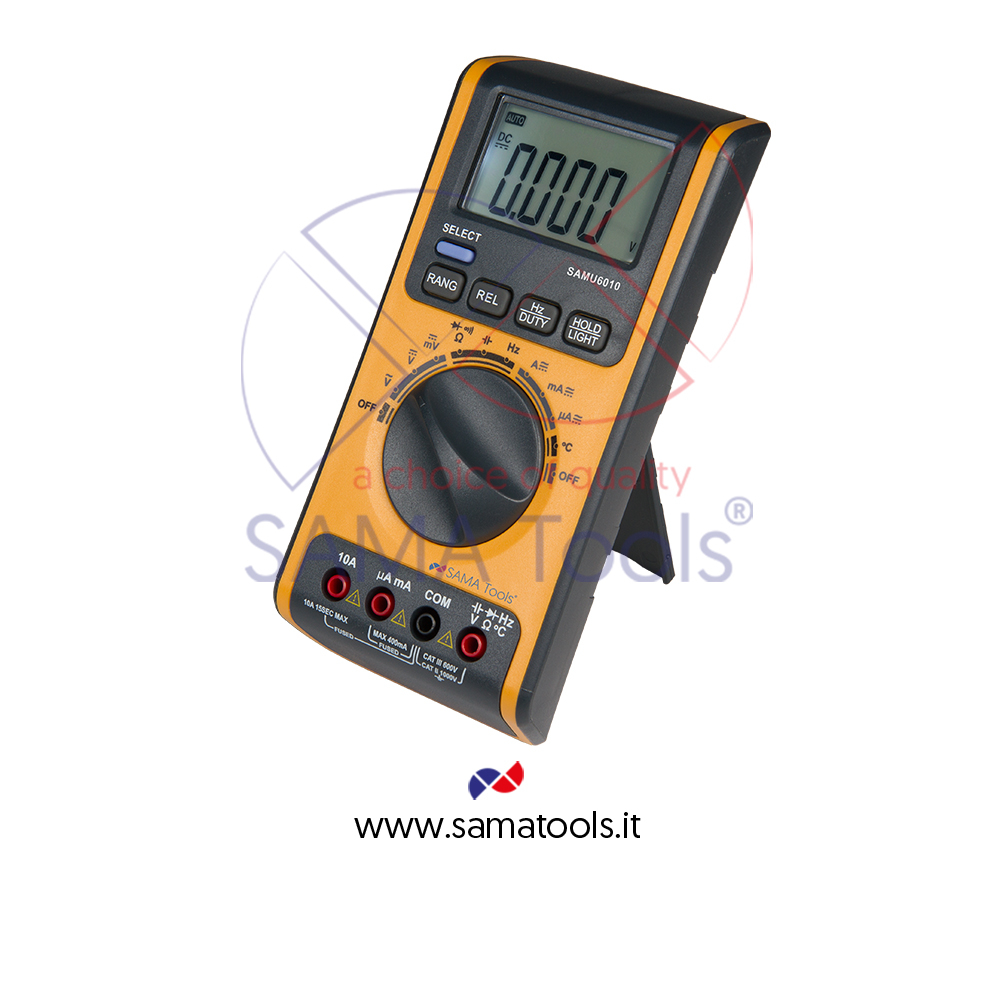

Digital multimeter, range: voltage 0,1mV...1000V AC/DC, current 0,1uA...10A AC/DC, resistance 0,10hm...40MOhm

Details

Model

SAMU6010

SAMU6020

SAMU6050

Display

LCD 4.000 Counts / 3 1/2 digit

LCD 6.000 Counts / 3 1/2 digit

LCD 20.000 Counts / 4 1/2 digit

Class and according

EMC e LVD IEC/EN 61010 -1 1000V CAT II / 600V CAT III

EMC e LVD IEC/EN 61010 -1 1000V CAT III / 600V CAT IV

EMC e LVD IEC/EN 61010 -1 1000V CAT III / 600V CAT IV

DC voltage

0.1mV ~ 1000V ± (0.5%+3dgt)

600mV ±(0.5%+5dgt)

6V/60V/600V ±(0.8%+5dgt)

1000V ±(1.0%+2dgt)

200mV/2V/20V/200V/1000V

±(0.05%+10dgt)

AC voltage

0.1mV ~ 700V ±(1.0%+3dgt)

600mV/6V/60V/600V ±(1%+5dgt)

1000V ±(1.5%+5dgt)

2V/20V/200V/1000V

±(0.5%+40dgt)

DC current

0.1μA ~ 10A

±(1.5%+3dgt)

600μA/6000μA/60mA/600mA ±(1.5%+3dgt)

6A/10A ±(1.5%+5dgt)

200mA/10A

±(0.2%+20dgt)

AC current

0.1μA ~ 10A

±(1.5%+3dgt)

600μA/6000μA/60mA/600mA ±(1.8%+5dgt)

6A/10A ±(3%+8dgt)

200mA/10A

±(1.0%+30dgt)

Resistance

0.1Ω ~ 40MΩ

±(0.5%+2dgt)

600Ω/6KΩ/60KΩ/600KΩ/6MΩ ±(0.5%+3dgt)

60MΩ ±(1.5%+5dgt)

200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ

±(0.5%+10dgt)

Capacitance

0.01nF ~ 100μF

±(3.0%+5dgt)

6nF ±(5.0%+20dgt)

60nF ±(3.0%+20dgt)

600nF/6μF/60µF/600µF/6mF ±(5.0%+20dgt)

20nF/ 200nF/2μF/20μF ±(1.5%+20dgt)

200μF/1000μF

±(2%+20dgt)

Frequency

10Hz ~ 100KHz

±(0.1%+3digits)

10Hz ~ 1MHz

±(0.1%+3digits)

10Hz~2MHz

±(0.05%+10dgt)

Temperature 1

-55°C ~ 1000°C

±(2.0%+2°C)

-55°C ~ 1000°C

±(2.0%+2°C)

-200°C ~ 1300°C

±(0.5%+1°C)

Temperature 2

-

-

-200°C ~ 1300°C

±(0.5%+1°C)

Double display

No

No

Si / Yes

TRUE RMS

No

Si / Yes

Continuity test

Yes

Diode test

Yes

Duty cycle

Yes

Power

9V

USB port & Software

No

Yes

Relative measurement

Yes

MIN/MAX value

No

Yes

HOLD

Yes

Auto power off

Yes

Auto/manual range

Yes

Low power indicator

Yes

Electronic protection

Yes

No contact voltage

No

Yes

No
