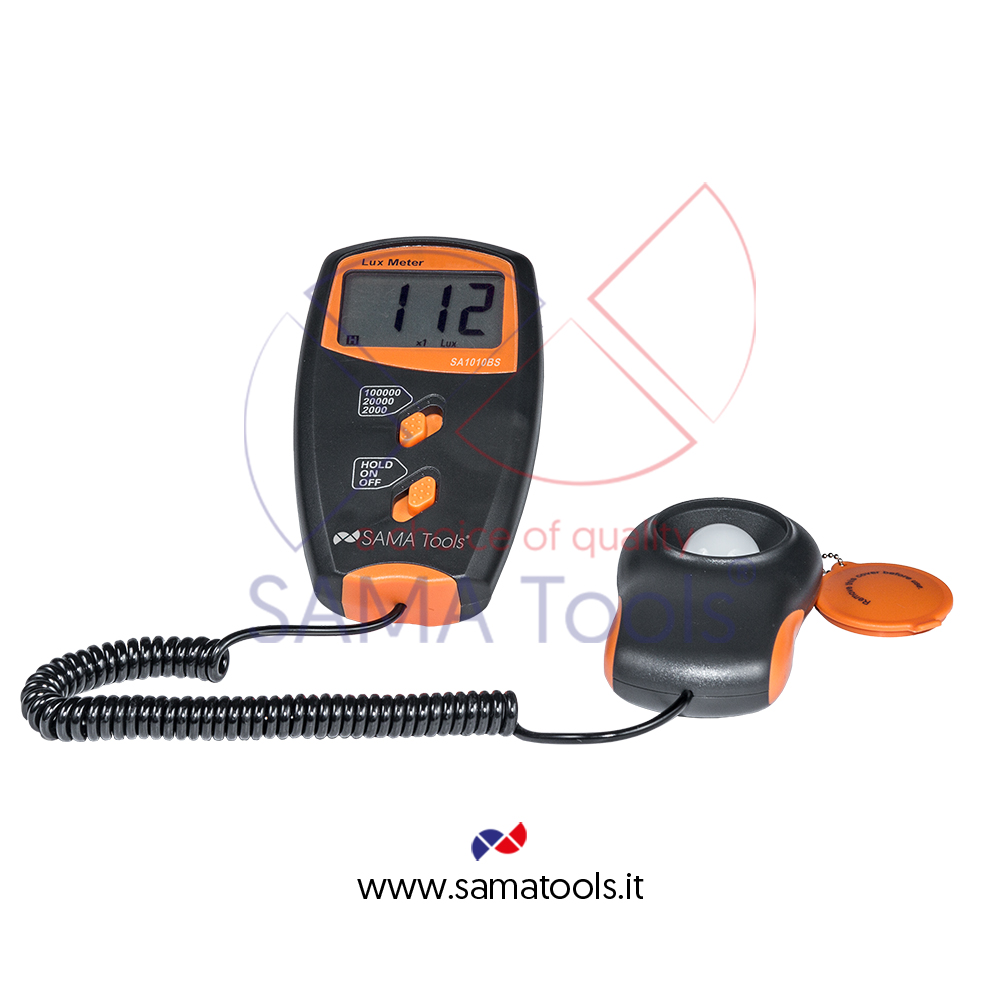

Luxmeter – SA1010BS
Devices employed to measure the brightness level, a parameter involved in many fields like environmental lighting, constructions, poster designing, signals, safety equipment and agricultural division. Suggested to operate quality control activities and in maintenance applications.
|
Model |
SA1010BS |
SA1330B |
|
Display |
LCD 3½ digits maximum displayed value 1999 |
LCD 3½ digits, Lux/FC |
|
Measuring range |
1-100.000Lux. (3 ranges) 20.000Lux: reading ×10 100.000Lux: reading ×100 |
1~200.000Lux. (4 ranges) [1~20.000 FC] 20.000Lux: reading ×10 200.000Lux: reading ×100 |
|
Resolution |
1Lux |
0,1Lux |
|
Unit of measure |
LX (lux) |
LX (lux) FC (Foot Candle) |
|
Accuracy |
≤10.000Lux: ±4%rdg ±0,5f.s ≥10.000Lux: ±5+10 digits |
≤20.000Lux: ±3%rdg ±0,5%f.s >20.000Lux: ±5%rdg ±10 digits |
|
(Calibrated through a standard heat lamp, colour temperature 2856K) |
||
|
Repeatability |
±2% |
±2% |
|
Features |
Hold value |
Hold value, peak hold function |
|
Response time |
0.2 times/sec. |
about 2 times/sec. |
|
Optical sensor |
One silicon photo diode with filter |
|
|
Operating conditions |
0°C ~ 40°C (32°F-104°F) 0~70%Rh |
0°C ~ 40°C (32°F ~ 104°F) 0~80%Rh |
|
Storage conditions |
-10°C ~ 50°C (14°F~140°F) 0~80%Rh |
-10°C ~ 60°C (14°F ~ 140°F) 0~80%Rh |
|
Range indicator |
“1” is displayed for out of range readings |
|
|
Automatic zeroing |
X |
|
|
Dimensions |
230x72x30mm |
160×79×43mm |
|
Sensor size |
106x57x26mm |
100×60×28mm |
|
Weight (without batteries) |
190g |
250g |
|
Battery indicator |
Low battery indicator |
|
|
Power supply |
1 9v battery |
|
Dotazione Standard / Standard Supply:
Unità centrale / Main unit
Valigetta / Carrying case
Manuale d’uso / User’s manual
Accessori Opzionali / Optional Accessories:
Certificato di taratura / Calibration report
