Digital Glossmeter 3 angles (20°60°85°)
  • Digital Glossmeter 3 angles (20°60°85°)
  • Digital Glossmeter 3 angles (20°60°85°)

Digital Glossmeter 3 angles (20°60°85°)

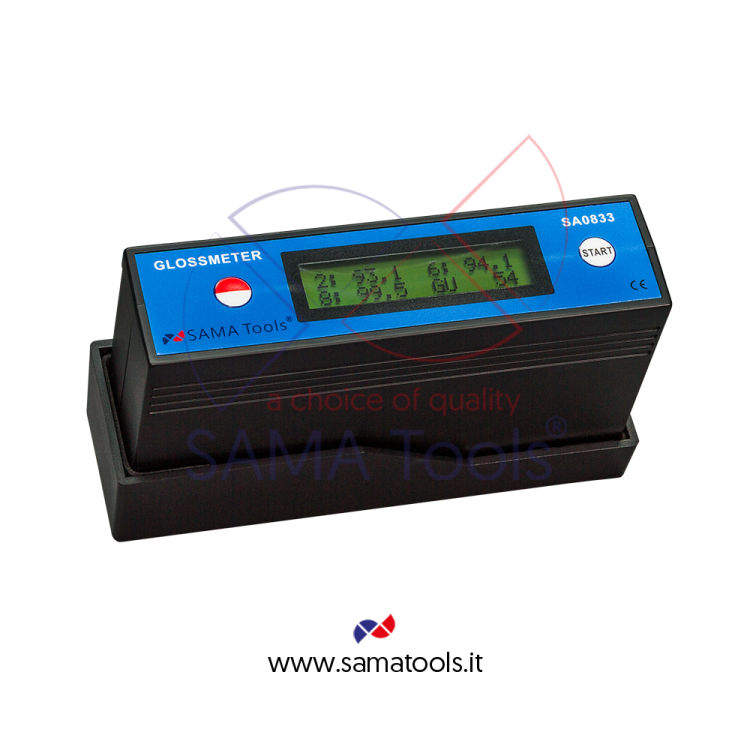

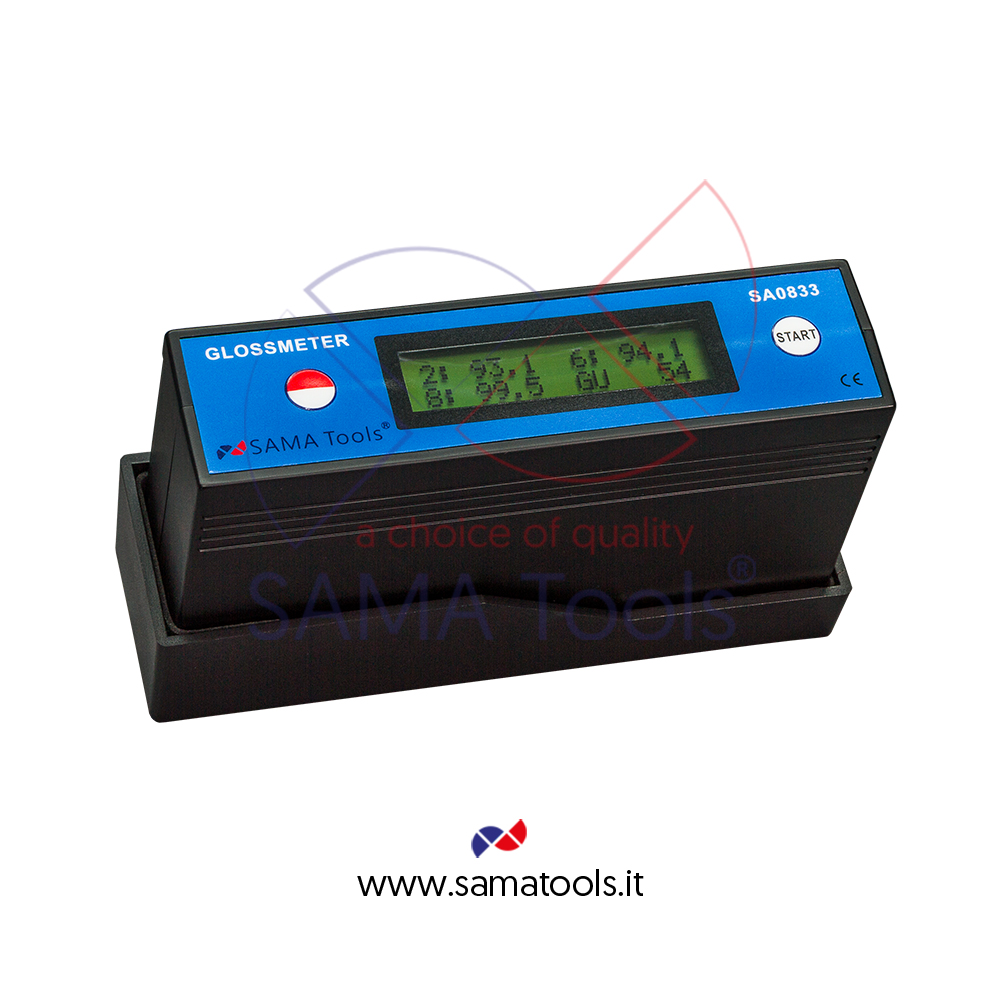

Digital Glossmeter 3 angles (20°-60°-85 °) - SA0833

The glossmeter is used for measurement on flat surfaces and operate like a refractometer. Cool design, compact dimensions 3 corners lamp geometry and high accuracy make it the ideal instruments for quality control in production line or off-site. Calibration is performed in seconds thanks to the master supplied. The 3 detection geometries (20 °, 60°, 85°) allow maximum flexibility of use,including low,medium and high brightness surfaces.

Applications:

  • Gloss measurement on ink prints , paint, wax, and processed wood coatings
  • Gloss measurement on marble, granite, glass, glass blocks, etc.
  • Gloss measurement on plastics and sheets



Modello / Model

SA0833

Standard

ISO 7668 ; ISO 2813 ; ASTM C 584 ; ASTM D 523 ; ASTM D 1455

 ASTM D 2457 ; ASTM D 4449 ; EN 13523-2 ; AS/NZS 1580.602.2
 JIS K 5600-4-7 ;  JIS Z 8741 ; TAPPI T 653 (20°)

Geometria / Geometry

20°, 60°, 85°

Campo di misura / Measuring range

0 ~ 199,9 GU

Risoluzione / Resolution

0,1 GU

Precisione / Accuracy

± 1,5 GU

Ripetibilità / Repeatability

± 0,4 GU

Calibrazione / Calibration

Automatic

Tipo di luce / Light source

A

Rilevatore / Detection

Silicon photodiode

Superficie di misurazione / Measuring spot

11 x 54 mm

Area misurata / Measuring area

20°

10 x 10 mm

60°

10 x 20 mm

85°

 7 x 24 mm

Alimentazione / Power supply

AA batteries

Dimensioni / Dimensions

142 x 32 x 64 mm

Peso / Weight

320 g

Dotazione Standard / Standard Supply:
Unità centrale / Main unit

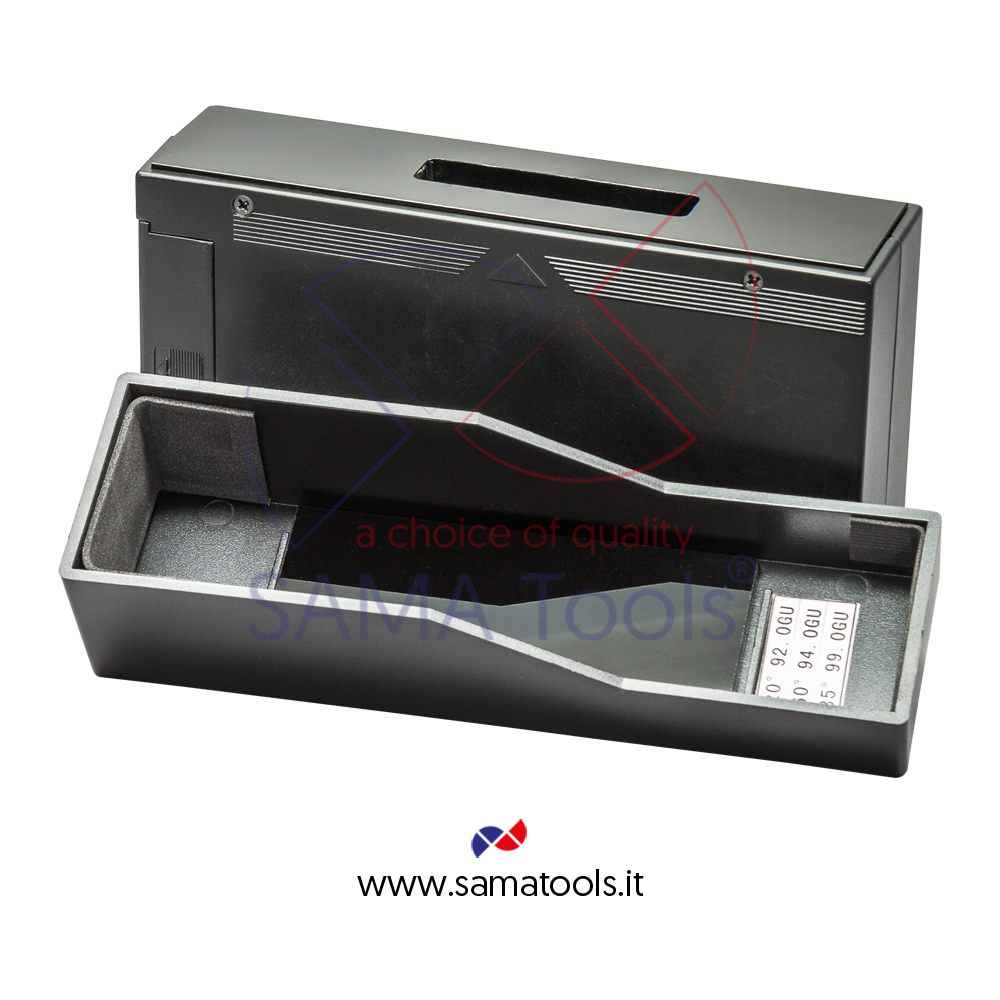

Piastra di calibrazione / Calibration plate
Valigetta / Carrying case
Manuale d’uso / User’s manual

Accessori Opzionali / Optional Accessories:
Certificato di taratura / Calibration report
