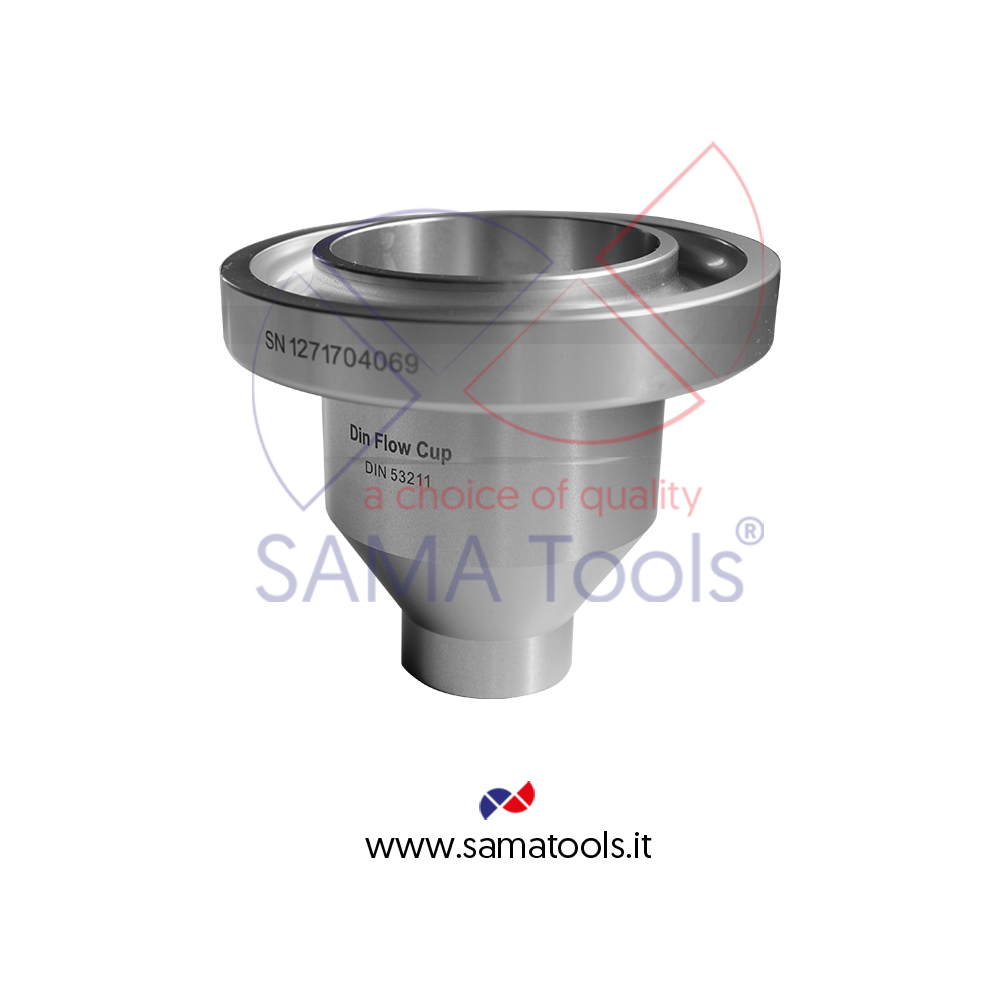

DIN flow cups - SAFC127

DIN flow cups are made of high quality aluminum and equipped with stainless steel nozzle inserts (depending on specifications). They are mirror polished and smooth finished for high efflux accuracy and easy maintenance. DIN Flow Cups are employed to determine the flow time of Newtonian fluid (whose viscosity does not vary with the speed at which it is measured).



Modello Model

SAFC127/2

SAFC127/4

SAFC127/6

SAFC127/8

SAFC127/4P

Standard

ISO 2431 ; DIN 53211 (cup 4 only)

Tipo / Type

DIN 2

DIN 4

DIN 6

DIN 8

DIN 4 Hand-held

Volume

100 ± 1 ml

Diametro orifizio

Orifice diameter

2 mm

4 mm

6 mm

8 mm

4 mm

Peso

Weight

250 g





Dotazione Standard / Standard Supply:
Unità centrale / Main unit

Accessori Opzionali / Optional Accessories:
Stativi / Stands
Certificato di taratura / Calibration report
