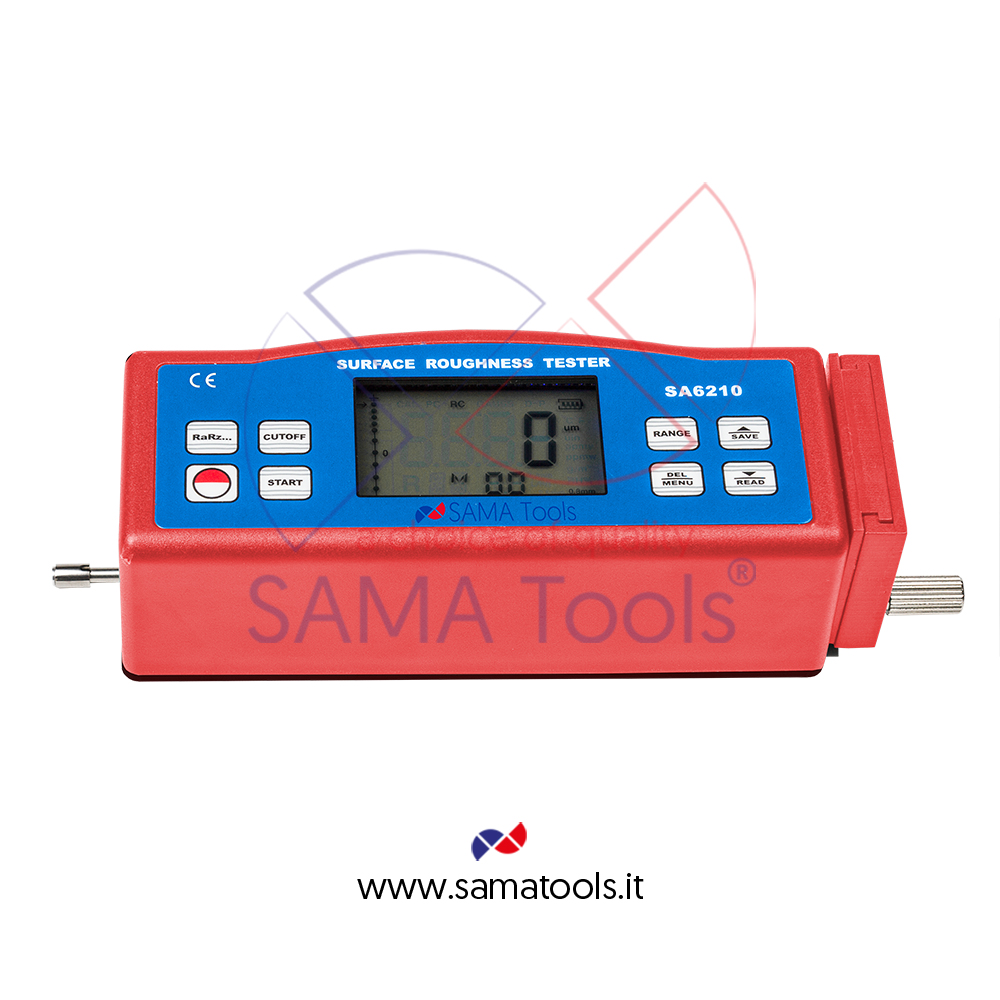

Rugosimetro portatile Digitale - SA62
Strumenti utilizzati per misurare la rugosità delle superfici in maniera non distruttiva. Semplice e maneggevole, la possibilità di misurare diversi parametri ne fanno uno strumento capace di operare sia in produzione che in laboratorio. Idoneo all’uso su stativo. Comunemente usato nel controllo qualità in linea di produzione e per il controllo merce in arrivo e in partenza.
Modello / Model |
SA6200 |
SA6210 |
SA6220 |
|
Standard |
ISO 4287 ; BS 1134 ; JIS B 0601 ; ASME B46.1 |
|||
Parametri / Parameters |
Ra ; Rz |
Ra ; Rq ; Rz ; Rt |
||
Campo di misura Measuring range |
Ra |
0,050 ~ 10 µm |
0,025 ~ 16 µm |
0,025 ~ 40 µm |
Rq |
-- |
0,025 ~ 16 µm |
0,025 ~ 40 µm |
|
Rz |
0,020 ~ 100 µm |
0,020 ~ 160 µm |
0,020 ~ 160 µm |
|
Rt |
-- |
0,020 ~ 160 µm |
0,020 ~ 160 µm |
|
Risoluzione / Resolution |
0,001 µm [< 10 µm] ; 0,01 µm [10 µm ≤ n < 100 µm] ; 0,1 µm [> 100 µm] |
|||
Precisione / Accuracy |
≤ ± 10% |
|||
Ripetibilità / Repeatability |
≤ 6% |
|||
Unità di misura / Measuring units |
µm ; mil |
|||
Filtri digitali / Digital filters |
-- |
RC ; PC-RC ; Gauss ; D-P |
||
Tastatore / Probe |
Raggio sensore / Pin radius |
10 µm |
5 µm |
|
Materiale sensore / Pin material |
Diamond |
|||
Forza applicata / Measuring force |
16 mN |
4 mN |
||
Angolo / Angle |
90° |
|||
Lunghezza di campionamento / Cutoff |
0,25 mm ; 0,8 mm ; 2,5 mm |
|||
Lunghezza di valutazione / Evaluation length |
1 ~ 5 Cutoff |
|||
Corsa massima / Maximum driving stroke |
17,5 mm |
|||
Velocità del tastatore Driving speed |
Cutoff = 0,25 mm |
0,135 mm/s |
||
Cutoff = 0,8 mm |
0,5 mm/s |
|||
Cutoff = 2,5 mm |
1 mm/s |
|||
Ritorno / Returning |
1 mm/s |
|||
Memoria / Memory |
-- |
7 values |
||
Uscita dati / Data output |
√ |
|||
Auto spegnimento / Auto switch-off |
√ |
|||
Alimentazione / Power supply |
Rechargeable battery |
|||
Dimensioni / Dimensions |
140 x 57 x 48 mm |
|||
Peso / Weight |
420 g |
Dotazione Standard / Standard Supply:
Unità centrale / Main unit
Tastatore standard / Standard probe
Protezione tastatore / Probe sheath
Base regolabile / Adjustable leg
Campione di rugosità / Roughness calibration standard
Valigetta / Carrying case
Manuale d’uso / User’s manual
Accessori Opzionali / Optional Accessories:
Cavo e software / Cable and software

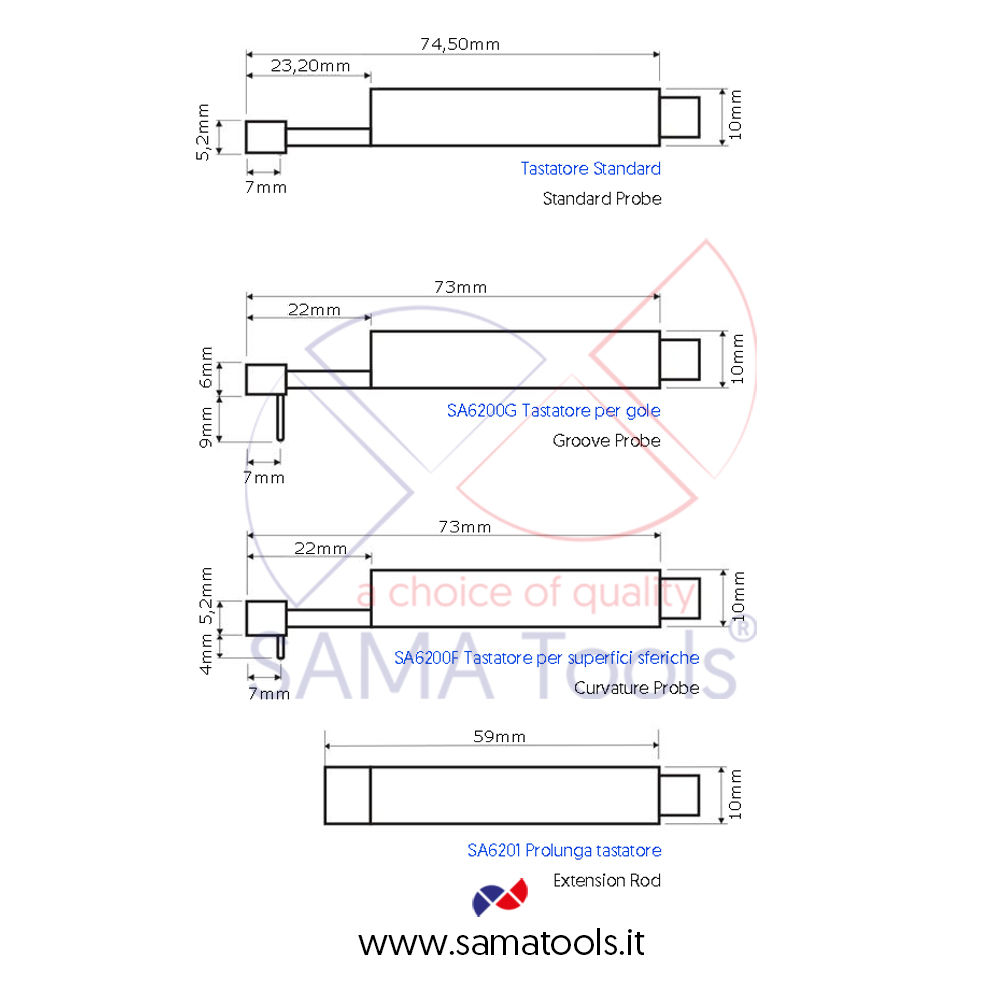

Prolunga tastatore* / Extension rod*
Tastatore 2 µm / Probe 2 µm

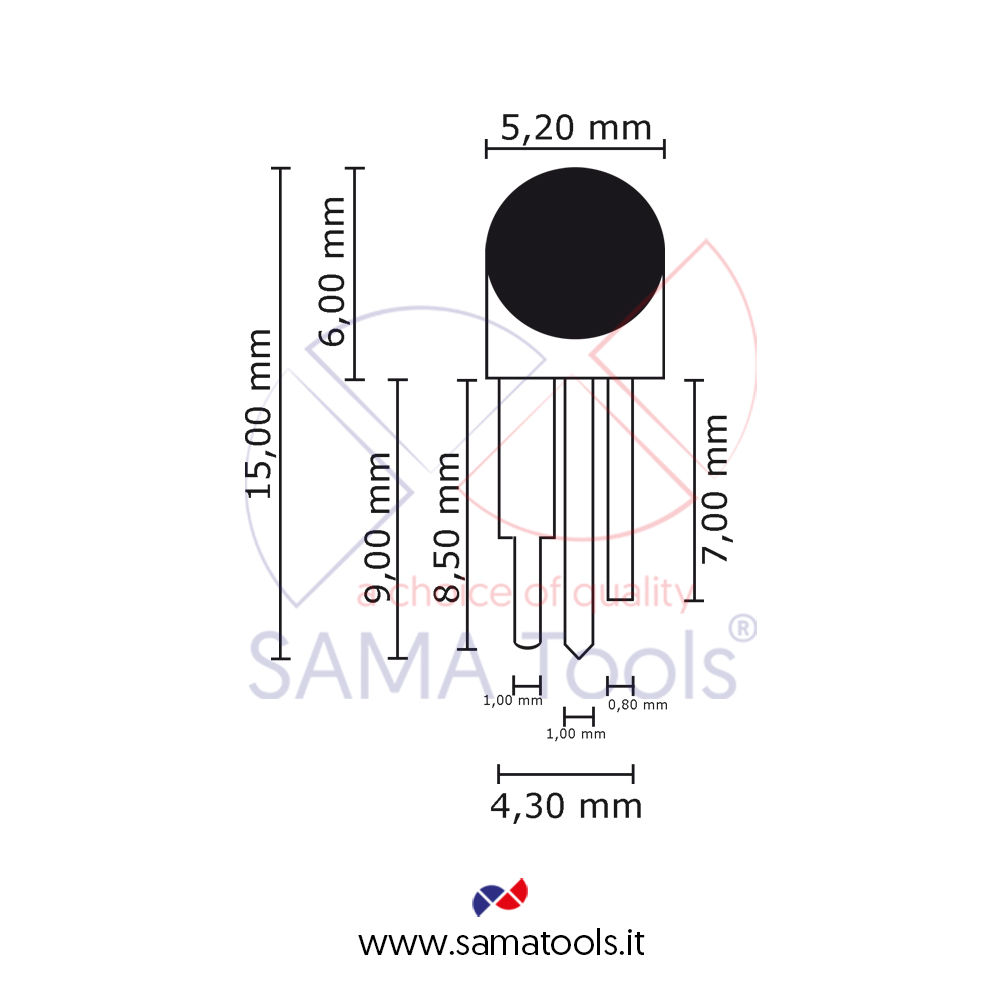

Tastatore per gole* / Groove probe*
Tastatore per superfici sferiche* / Curved surface probe*

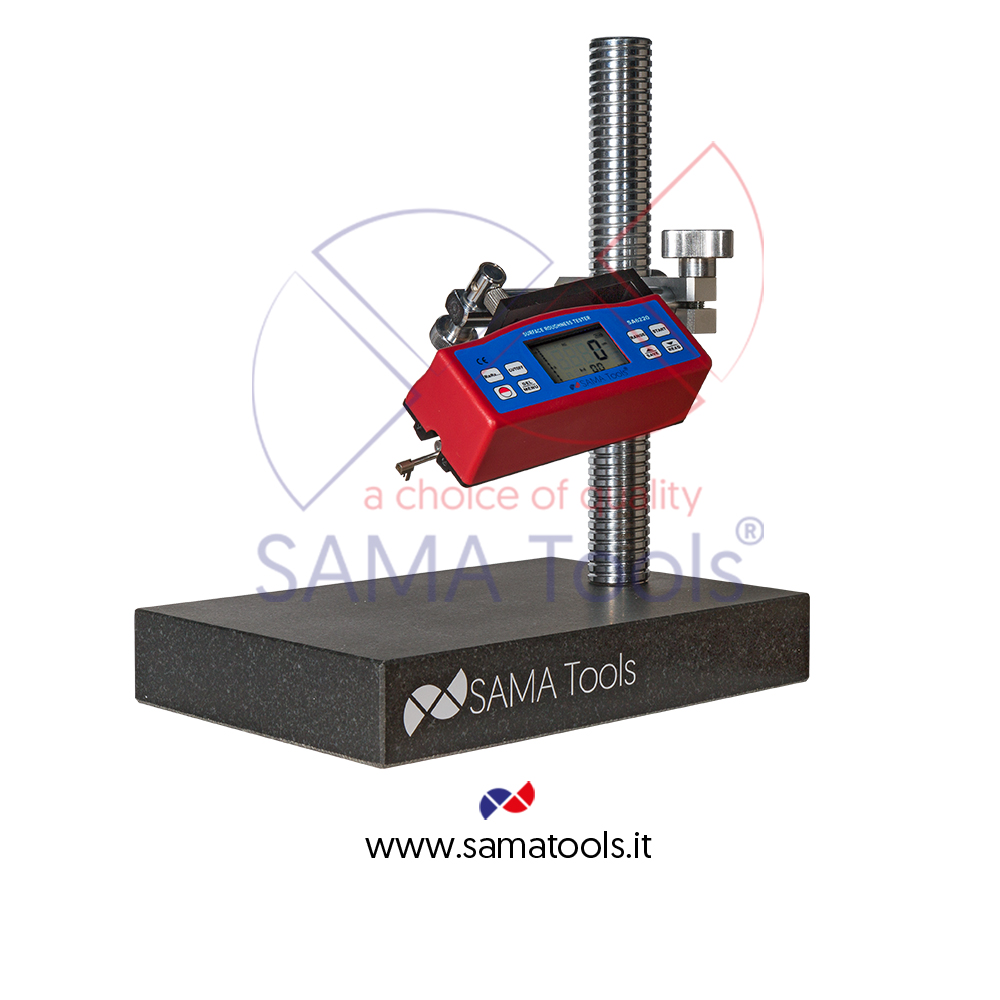

Stativo / Test stand
Campioni di rugosità / Roughness calibration standards
Certificato di taratura / Calibration report
(*) Da utilizzare con stativo / To be used with test stand
