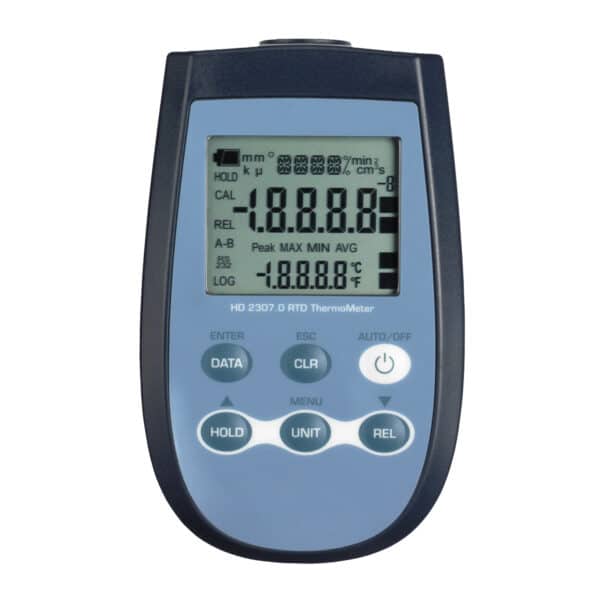

The portable Pt100/Pt1000 thermometer is a single-input instrument designed for temperature measurements with immersion, penetration, surface or air probes. It is intended for quick checks in the field, laboratory inspections, maintenance activities, testing and technical measurements where a simple, rugged and immediate-reading instrument is required.
The instrument can be used with 3-wire or 4-wire Pt100 probes and Pt1000 probes, with a measuring range from -200 to +650 °C.
Compatible probes are equipped with SICRAM module technology for automatic recognition. The module stores the probe calibration data internally, allowing the instrument to correctly identify the connected sensor and maintain a coherent measurement configuration.
The Max, Min and Avg functions allow display of maximum, minimum and average values during measurement. Relative measurement REL, HOLD function for freezing the displayed reading and selectable auto power-off are also available.
Its IP67 protection rating makes this thermometer suitable for field use and technical environments where dust, humidity or less controlled operating conditions may be present compared to laboratory use. Compared to HD2107.1 and HD2107.2 models, this version is intended for direct reading only, without RS232 output or datalogger functionality.
The Pt100 probes used are based on platinum resistance thermometer technology according to IEC 60751, the standard defining RTD tolerance classes. Probe selection depends on the application type: immersion for liquids, penetration for semi-solid materials, surface contact measurements or air temperature monitoring.
Applications
- Temperature measurements in field operations, laboratories, maintenance and industrial quality control
- Checks with Pt100 and Pt1000 probes from -200 to +650 °C
- Immersion, penetration, surface and air measurements depending on the selected probe
- Quick inspections where internal data recording is not required
- Process, plant, surface, liquid and technical environment monitoring
- Use with SICRAM-equipped probes for automatic recognition
- Portable measurements in technical environments thanks to IP67 protection
FAQ – Portable Pt100/Pt1000 thermometer
When should a portable Pt100/Pt1000 thermometer be selected?
It is suitable when direct and immediate temperature measurements are required without the need to transfer or internally record data.
Which probes can it use?
It can operate with 3-wire or 4-wire Pt100 probes and Pt1000 probes, available in immersion, penetration, surface and air versions.
What is the measuring range of the instrument?
The measuring range is -200…+650 °C, depending on the connected probe and application.
What is the difference compared to model HD2107.1?
HD2307.0 is simpler and intended for direct reading only. HD2107.1 adds 0.01 °C resolution up to ±199.99 °C and RS232 output for real-time data transfer.
What is the difference compared to datalogger model HD2107.2?
HD2107.2 can store up to 80,000 readings and transfer data via RS232C or USB. HD2307.0 is intended for spot measurements without internal memory.
What is the purpose of the SICRAM module?
The SICRAM module enables automatic probe recognition and stores calibration data internally, ensuring correct matching between probe and instrument.
Are probes included with the instrument?
No, probes must be selected and ordered separately according to the temperature range, measurement type and actual application.
