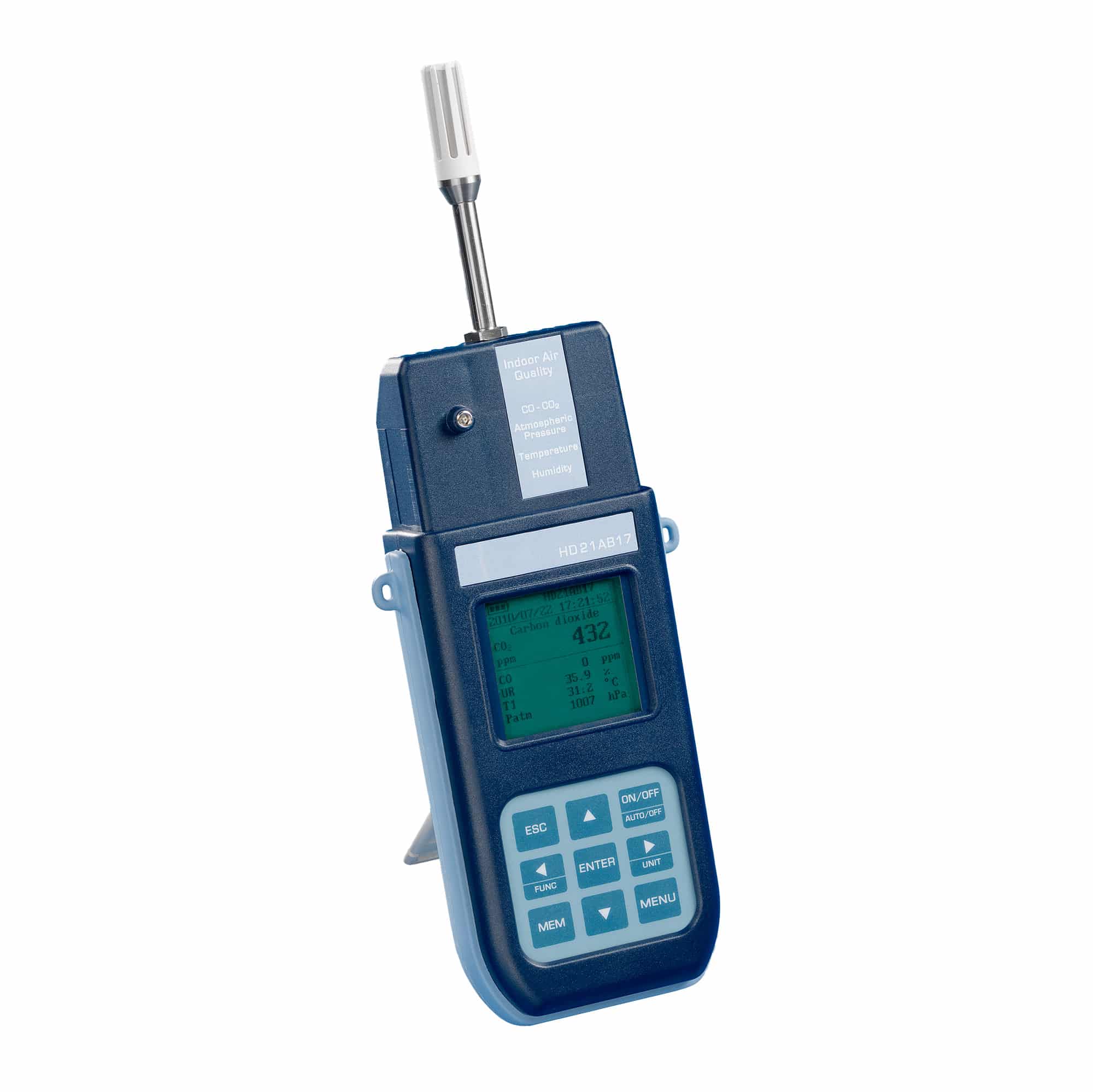

The indoor air quality datalogger is a portable instrument designed for IAQ monitoring, developed to simultaneously measure the main parameters related to comfort, ventilation and safety in occupied indoor environments. The instrument measures carbon dioxide CO2, carbon monoxide CO, atmospheric pressure, temperature and relative humidity, providing a complete overview of indoor environmental conditions.
It is suitable for inspections in schools, offices, production areas, public buildings, laboratories, changing rooms, kitchens, bathrooms, swimming pools and technical rooms, where indoor air quality may be affected by insufficient ventilation, occupancy levels, humidity or chemical, physical and biological contaminants. Reference standards include ASHRAE 62.1 for occupied indoor environments and Legislative Decree 81/2008 for workplace health and safety aspects.
CO2 measurement is performed through a dual-wavelength NDIR sensor, with measuring range from 0…5000 ppm. Carbon monoxide CO is measured through an electrochemical cell, with range from 0…500 ppm. The presence of both parameters allows evaluation of ventilation efficiency and detection of possible conditions related to combustion systems, technical installations or indoor pollution sources.
Atmospheric pressure is measured by a precision piezoresistive sensor operating in the range 750…1100 hPa. Temperature and humidity are measured by the integrated T/UR probe: the humidity sensor is capacitive, protected by stainless steel mesh filter, with measuring range 0…100% RH, while temperature is measured by NTC 10 kΩ sensor in the range -20…+60 °C.
In addition to direct measurements, the instrument calculates psychrometric parameters useful for more advanced environmental analysis, including dew point, wet bulb temperature, absolute humidity, mixing ratio and enthalpy. These values are particularly important when evaluating the thermohygrometric behaviour of humidity, ventilation efficiency or HVAC operating conditions.
The datalogger function allows storage of up to 67,600 recordings, divided into 64 blocks. Logging interval can be configured from 15 seconds, 30 seconds, 1, 2, 5, 10, 15, 20, 30 minutes and 1 hour, making it possible to adapt monitoring duration according to the application. With long intervals, recording capability can cover extended periods, useful for continuous indoor air quality analysis.
The backlit graphic LCD display provides immediate reading of measured values. Data can be transferred to PC through mini-USB port with USB interface. DeltaLog10 software allows downloading, management and analysis of recorded data, simplifying documentation of IAQ inspections.
The instrument is powered by rechargeable NiMH battery pack or 12 Vdc mains power supply. Battery autonomy reaches approximately 8 hours of continuous operation in measurement mode. Portable construction, ABS and rubber housing and lightweight design make the datalogger suitable both for spot inspections and long-term monitoring campaigns in different indoor environments.
Applications
- Indoor air quality analysis in schools, offices, public buildings and workplaces
- Simultaneous measurement of CO2, CO, atmospheric pressure, temperature and relative humidity
- Verification of environmental conditions in occupied indoor spaces
- Monitoring HVAC, ventilation, heating and air conditioning efficiency
- Investigation of sick building syndrome and indoor comfort conditions
- Monitoring of high-humidity environments such as bathrooms, kitchens, changing rooms and swimming pools
- Evaluation of psychrometric parameters including dew point, wet bulb temperature, absolute humidity, mixing ratio and enthalpy
- Data logging for short-, medium- and long-term IAQ monitoring campaigns
- Building automation inspections and indoor environmental control
FAQ – Datalogger for indoor air quality analysis
What is an indoor air quality datalogger used for?
It is used to measure and record the main indoor air quality parameters, including CO2, CO, temperature, relative humidity and atmospheric pressure. It is useful for evaluating comfort, ventilation efficiency and possible critical conditions in occupied indoor spaces.
Which parameters does the instrument directly measure?
The instrument simultaneously measures carbon dioxide CO2, carbon monoxide CO, atmospheric pressure, temperature and relative humidity.
Which calculated parameters are available?
It calculates dew point, wet bulb temperature, absolute humidity, mixing ratio and enthalpy. These values help improve interpretation of thermohygrometric environmental conditions.
What type of sensor is used for CO2?
CO2 is measured through a dual-wavelength NDIR sensor with measuring range from 0…5000 ppm.
Does it also measure carbon monoxide?
Yes, CO is measured through an electrochemical cell in the range 0…500 ppm. This measurement is important for identifying possible abnormal conditions related to combustion systems or indoor pollution sources.
Which environments is it suitable for?
It is suitable for schools, offices, public buildings, laboratories, changing rooms, kitchens, bathrooms, swimming pools and, in general, occupied indoor spaces.
Can it be used to verify HVAC systems?
Yes, monitoring CO2, temperature, humidity and atmospheric pressure can help evaluate the efficiency of ventilation, heating and air conditioning systems.
How much data can it store?
The instrument can store up to 67,600 recordings divided into 64 blocks. Logging interval is selectable according to monitoring duration.
Which logging intervals are available?
Selectable intervals include 15 and 30 seconds, or 1, 2, 5, 10, 15, 20, 30 minutes and 1 hour.
Can data be transferred to PC?
Yes, data transfer is performed through mini-USB port. DeltaLog10 software allows management and analysis of recorded data.
Which reference standards are indicated for this instrument?
Documentation refers to ASHRAE 62.1 for occupied indoor spaces and Legislative Decree 81/2008 regarding workplace safety.
What is the battery autonomy of the instrument?
Autonomy is approximately 8 hours of continuous operation in measurement mode using rechargeable NiMH battery pack. It can also be powered through mains adapter.
