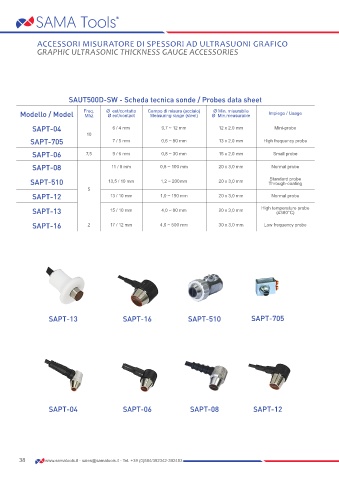

ACCESSORI MISURATORE DI SPESSORI AD ULTRASUONI GRAFICO
GRAPHIC ULTRASONIC THICKNESS GAUGE ACCESSORIES

SAUT500D-SW - Scheda tecnica sonde / Probes data sheet

Ø Min. misurabile
Modello / Model Freq. Ø est/contatto Campo di misura (acciaio) Ø Min.measurable Impiego / Usage
Measuring range (steel)
Ø ext/contact
Mhz
SAPT-04 6 / 4 mm 0,7 ~ 12 mm 12 x 2,0 mm Mini-probe
10
SAPT-705 7 / 5 mm 0,6 ~ 80 mm 13 x 2,0 mm High frequency probe
SAPT-06 7,5 9 / 6 mm 0,8 ~ 30 mm 15 x 2,0 mm Small probe

SAPT-08 11 / 8 mm 0,8 ~ 100 mm 20 x 3,0 mm Normal probe
Standard probe
SAPT-510 13,5 / 10 mm 1,2 ~ 200mm 20 x 3,0 mm Through-coating
5
SAPT-12 13 / 10 mm 1,0 ~ 150 mm 20 x 3,0 mm Normal probe

SAPT-13 15 / 10 mm 4,0 ~ 80 mm 20 x 3,0 mm High temperature probe
(≤380°C)
SAPT-16 2 17 / 12 mm 4,0 ~ 500 mm 30 x 3,0 mm Low frequency probe

SAPT-13 SAPT-16 SAPT-510 SAPT-705

SAPT-04 SAPT-06 SAPT-08 SAPT-12
