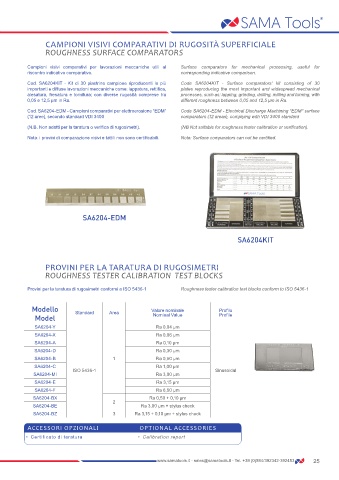

P. 27

CAMPIONI VISIVI COMPARATIVI DI RUGOSITÀ SUPERFICIALE
                 ROUGHNESS SURFACE COMPARATORS


           Campioni visivi comparativi per lavorazioni meccaniche utili al   Surface comparators for mechanical processing, useful for
           riscontro indicativo comparativo.                     corresponding indicative comparison.

           Cod. SA6204KIT - Kit di 30 piastrine campione riproducenti le più   Code  SA6204KIT  -  Surface  comparators’  kit  consisting  of  30
           importanti e diffuse lavorazioni meccaniche come: lappatura, rettifica,   plates reproducing the most important and widespread mechanical
           alesatura, fresatura  e  tornitura;  con  diverse rugosità  comprese  tra   processes, such as: lapping, grinding, drilling, milling and turning, with
           0,05 e 12,5 μm in Ra.                                 different roughness between 0,05 and 12,5 μm in Ra.

           Cod. SA6204-EDM - Campioni comparativi per elettroerosione “EDM”   Code SA6204-EDM - Electrical Discharge Machining “EDM” surface
           (12 aree), secondo standard VDI 3400                  comparators (12 areas), complying with VDI 3400 standard
           (N.B. Non adatti per la taratura o verifica di rugosimetri).  (NB Not suitable for roughness tester calibration or verification).

           Nota: i provini di comparazione visivi e tattili non sono certificabili.  Note: Surface comparators can not be certified.















                              SA6204-EDM



                                                                                    SA6204KIT




                 PROVINI PER LA TARATURA DI RUGOSIMETRI
                 ROUGHNESS TESTER CALIBRATION  TEST BLOCKS


           Provini per la taratura di rugosimetri conformi a ISO 5436-1  Roughness tester calibration test blocks conform to ISO 5436-1


            Modello        Standard    Area           Valore nominale         Profilo
             Model                                     Nominal Value          Profile
             SA6204-Y                                   Ra 0,04 µm
             SA6204-X                                   Ra 0,06 µm
             SA6204-A                                   Ra 0,10 µm
             SA6204-D                                   Ra 0,30 µm
             SA6204-B                    1              Ra 0,50 µm
             SA6204-C                                   Ra 1,00 µm
                           ISO 5436-1                                        Sinusoidal
             SA6204-MI                                  Ra 3,00 µm
             SA6204-E                                   Ra 3,15 µm
             SA6204-F                                   Ra 6,50 µm
             SA6204-BX                   2           Ra 0,50 + 0,10 µm
             SA6204-BE                             Ra 3,00 µm + stylus check
             SA6204-BZ                   3      Ra 3,15 + 0,10 µm + stylus check

           ACCESSORI OPZIONALI                    OPTIONAL ACCESSORIES
          •  Certificato di taratura              •  Calibration report
