Tel +39-(0)584/392342-392453 Fax +39-(0)584/398299 www.samatools.it - sales@samatools.it

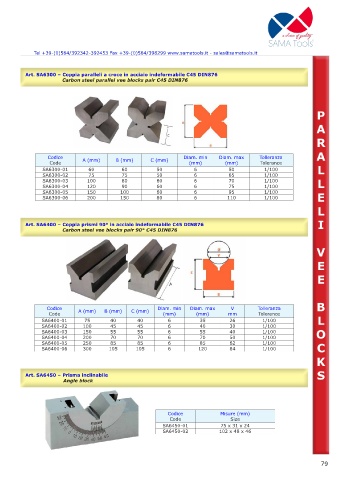

Art. SA6300 – Coppia paralleli a croce in acciaio indeformabile C45 DIN876

P
A

R

Codice A (mm) B (mm) C (mm) Diam. min Diam. max Tolleranza A
Code (mm) (mm) Tolerance
SA6300-01 60 60 50 6 50 1/100 L
SA6300-02 75 75 50 6 65 1/100
SA6300-03 100 80 60 6 70 1/100 L
SA6300-04 120 90 60 6 75 1/100
SA6300-05 150 100 60 6 95 1/100
SA6300-06 200 150 80 6 110 1/100 E
L

I
Art. SA6400 – Coppia prismi 90° in acciaio indeformabile C45 DIN876

V
E

E

Codice A (mm) B (mm) C (mm) Diam. min Diam. max V Tolleranza B
Code (mm) (mm) mm Tolerance
SA6400-01 75 40 40 6 35 26 1/100 L
SA6400-02 100 45 45 6 40 30 1/100
SA6400-03 150 55 55 6 55 40 1/100 O
SA6400-04 200 70 70 6 70 50 1/100
SA6400-05 250 85 85 6 85 62 1/100
SA6400-06 300 105 105 6 120 84 1/100 C
K

Art. SA6450 – Prisma inclinabile S

Codice Misure (mm)
Code Size
SA6450-01 75 x 31 x 24
SA6450-02 102 x 48 x 46

79
