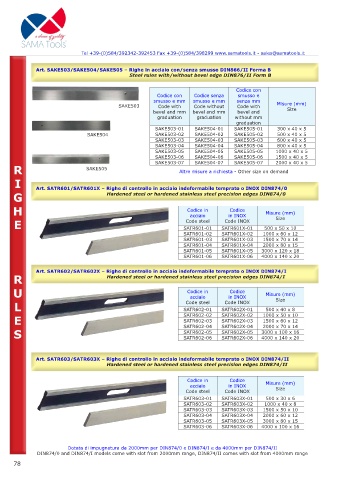

Page 78 - Catalogo_STD_SAMATOOLS

Tel +39-(0)584/392342-392453 Fax +39-(0)584/398299 www.samatools.it - sales@samatools.it

Art. SAKE503/SAKE504/SAKE505 – Righe in acciaio con/senza smusso DIN866/II Forma B

Codice con
Codice con Codice senza smusso e
smusso e mm smusso e mm senza mm
SAKE503 Code with Code without Code with Misure (mm)
bevel and mm bevel and mm bevel and Size
graduation graduation without mm
graduation
SAKE503-01 SAKE504-01 SAKE505-01 300 x 40 x 5
SAKE504 SAKE503-02 SAKE504-02 SAKE505-02 500 x 40 x 5
SAKE503-03 SAKE504-03 SAKE505-03 600 x 40 x 5
SAKE503-04 SAKE504-04 SAKE505-04 800 x 40 x 5
SAKE503-05 SAKE504-05 SAKE505-05 1000 x 40 x 5
SAKE503-06 SAKE504-06 SAKE505-06 1500 x 40 x 5
SAKE503-07
2000 x 40 x 5
SAKE505-07
SAKE504-07
R SAKE505 Altre misure a richiesta - Other size on demand
I Art. SATR601/SATR601X – Righe di controllo in acciaio indeformabile temprato o INOX DIN874/0
G
H Codice in in INOX Misure (mm)
Codice
acciaio
Size
E SATR601-01 SATR601X-01 500 x 50 x 10
Code steel
Code INOX
SATR601-02 SATR601X-02 1000 x 60 x 12
SATR601-03 SATR601X-03 1500 x 70 x 14
SATR601-04 SATR601X-04 2000 x 80 x 15
SATR601-05 SATR601X-05 3000 x 120 x 18
SATR601-06 SATR601X-06 4000 x 140 x 20

Art. SATR602/SATR602X – Righe di controllo in acciaio indeformabile temprato o INOX DIN874/I
R
U Codice in in INOX Misure (mm)
Codice
acciaio
Size
L SATR602-01 SATR602X-01 500 x 40 x 8
Code INOX
Code steel
E SATR602-02 SATR602X-02 1000 x 50 x 10
SATR602X-03
SATR602-03
1500 x 60 x 12
2000 x 70 x 14
S SATR602-04 SATR602X-04 3000 x 100 x 16
SATR602X-05
SATR602-05
SATR602X-06
4000 x 140 x 20
SATR602-06
Art. SATR603/SATR603X – Righe di controllo in acciaio indeformabile temprato o INOX DIN874/II

Codice in Codice Misure (mm)
acciaio in INOX
Code steel Code INOX Size
SATR603-01 SATR603X-01 500 x 30 x 6
SATR603-02 SATR603X-02 1000 x 40 x 8
SATR603-03 SATR603X-03 1500 x 50 x 10
SATR603-04 SATR603X-04 2000 x 60 x 12
SATR603-05 SATR603X-05 3000 x 80 x 15
SATR603-06 SATR603X-06 4000 x 100 x 16

Dotata di impugnatura da 2000mm per DIN874/0 e DIN874/I e da 4000mm per DIN874/II
DIN874/0 and DIN874/I models come with slot from 2000mm range, DIN874/II comes with slot from 4000mm range
78
