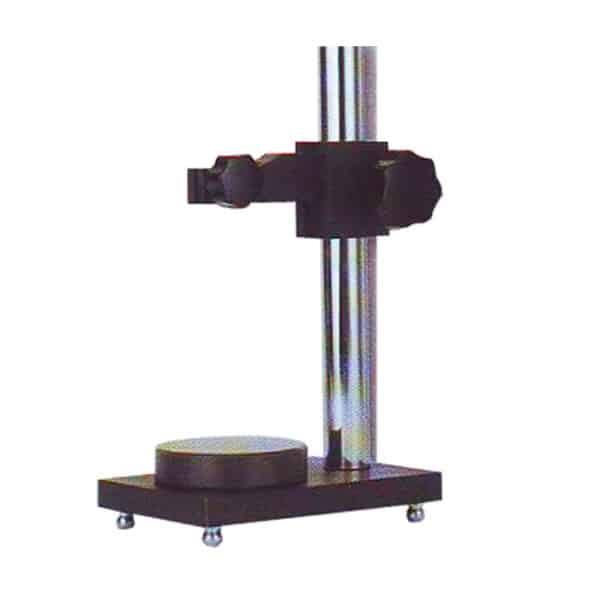

Steel dial indicator test stand with round base – SA022STD

The steel dial indicator test stand with round base is a support designed to create a simple, stable and practical bench inspection station. Its function is to hold the dial indicator in the correct position during dimensional inspections, making measurements more regular and reducing unwanted instrument movement.

Compared with temporary or improvised dial indicator positioning, a dial indicator test stand allows work with greater consistency, especially when comparing multiple components or repeating the same inspection several times. The presence of a dedicated structure helps maintain a constant reference and improves component handling during measurement.

The distinctive feature of this model is the round support base, integrated into a compact structure with 70 mm diameter and 200 mm column height. This configuration is particularly useful whenever a compact dial indicator support is required for bench inspections on small and medium-sized components. The circular base can also be practical whenever a clearly defined support area is needed directly beneath the inspection point.

From an application point of view, this type of dial indicator test stand is used for checking dimensional differences, steps, heights, shoulders and dimensional deviations relative to a reference plane. It is especially useful during repetitive inspections because it keeps the dial indicator fixed while the operator positions the component and checks the dimension more conveniently.

The steel structure makes the support suitable for use in workshops, tooling applications and quality control activities. In these contexts the practical advantage is not only supporting the dial indicator, but also creating a small and organized inspection station suitable for everyday dimensional inspections.

This dial indicator support is a suitable solution whenever improved inspection stability is required without using complex systems. It is widely used both in routine dimensional inspections and in repetitive inspections on production series, where repeatable positioning of the instrument helps achieve smoother and more coherent inspections.

In practice, the dial indicator test stand with round base is suitable for anyone looking for a simple but effective support for bench use of a dial indicator, featuring a compact structure and a circular base suitable for many common dimensional inspection activities.

Applications

• Stable support for dial indicators during bench inspections
• Comparative inspection of heights, steps and level differences
• Inspection of shoulders and support surfaces
• Repetitive inspections on production series
• Use in workshops, tooling and quality control departments
• Creation of compact comparative inspection stations
• Inspection of dimensional deviations relative to a reference plane
• Everyday use as a support for dial indicators during dimensional inspections

FAQ – Steel dial indicator test stand with round base

What is a round base dial indicator test stand?
It is a bench support designed to hold the dial indicator in a stable position during dimensional inspections.

Do dial indicator test stand, dial indicator support and dial indicator stand indicate the same thing?
Yes, these expressions are commonly used to describe this type of support intended for mounting a dial indicator.

What is this dial indicator stand used for?
It is used to keep the dial indicator fixed and correctly positioned during inspection, making measurements more practical and repeatable.

When is a dial indicator support useful on the bench?
It is useful whenever inspections involve comparing multiple components, repetitive inspections or situations where the instrument must remain in the same position.

What is the advantage of a round base compared with other shapes?
The round base provides a compact and clearly defined support area, useful whenever limited overall dimensions are preferred.

What types of inspections can be performed with this dial indicator test stand?
It can be used to inspect heights, steps, shoulders, dimensional differences and other deviations relative to a reference surface.

Is this stand suitable for repetitive inspections?
Yes, it is particularly suitable whenever multiple similar components must be checked using a stable bench configuration.

What are the base dimensions?
The base has a diameter of 70 mm.

What is the column height?
The column height is 200 mm.

Why is the steel structure useful?
Because it makes the support suitable for everyday workshop use and normal bench inspection activities.

In which departments is this stand most commonly used?
It is mainly used in mechanical workshops, tooling departments, inspection activities and quality control.

Who is this dial indicator support recommended for?
It is recommended for users wanting to use the dial indicator in a more stable, organized and practical way during everyday bench inspections.
