Industrial video inspection systems are designed to visually inspect the inside of pipes, drains, ducts, sewers, chimneys, plumbing systems and extended cavities. They make it possible to observe areas that cannot be reached directly, documenting the internal condition of the line without dismantling or invasive openings.
The cable reel configuration allows the camera to be carried deep inside the system, while keeping control of its advancement and of the image shown on the monitor. It is a suitable solution for maintenance activities, fault finding, preventive checks, integrity inspections, technical surveys and documentation of pipe condition.
The IP68 camera head makes it possible to perform video inspections in ducts, drains and pipes where water or residues compatible with the protection rating may be present. The lens protection helps preserve viewing quality during checks in technical points subject to dirt, deposits or contact with internal walls.

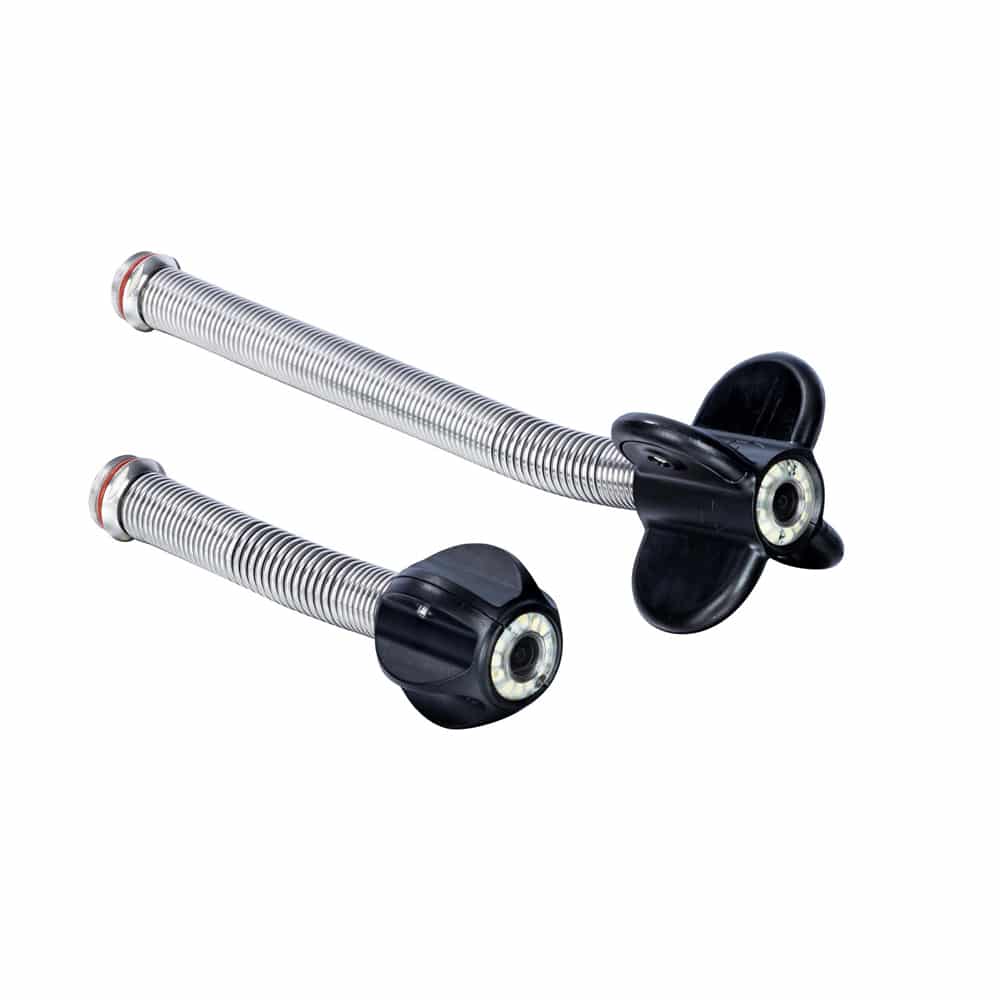

23 mm or 14 mm camera head
The range includes configurations with a 23 mm camera head and a 14 mm camera head, allowing the system to be adapted to the available diameter and the type of inspection required.
The 23 mm camera head is suitable for wider internal passages, pipes and ducts where there is enough space for the camera. This configuration is useful when a broader view of the inside of the line is required and the condition of surfaces, joints, deposits, obstructions or anomalies along the route needs to be documented.
The 14 mm camera head is designed for pipes, drains and passages with a smaller diameter. Its compact size makes it the preferred choice for inspections where access to the point to be checked is the main requirement.
The choice of camera head should therefore start from the actual internal diameter of the pipe, the presence of restrictions or components along the route and the level of detail required during the inspection.
Cable length for extended inspections
The video inspection systems are available with 20, 30 or 40 m cables, to meet different inspection-depth requirements. The cable length should be proportionate to the section to be inspected: a suitable cable makes it possible to reach the required point while keeping advancement and camera retrieval more orderly.
This feature makes the system useful for checks on drain columns, internal networks, ducts, underground pipes, service lines, chimneys, channels and other routes where the area to be observed may be located at a significant distance from the access point.
The integrated meter counter displays the length of cable used during the inspection. This function is useful for linking images, videos and detected anomalies to the approximate position along the pipe or duct, facilitating subsequent checks and identification of the intervention point.
Photos and videos to document the inspection
The system can capture photos and videos during the video inspection. Recordings can be stored on the memory card, reviewed on the monitor and transferred to a PC to organise the technical documentation of the check.
The possibility of recording images and videos is useful when the condition of the pipe needs to be compared over time, the result needs to be shared with the maintenance department, an intervention report needs to be prepared, or the inside of the inspected section needs to be shown to the customer.
The collected documentation can support preventive maintenance activities, obstruction searches, deposit checks, internal connection inspections, foreign-object detection and assessment of the general condition of the line.
Video inspection of pipes, drains and systems
These industrial video inspection systems are suitable for checks on civil and industrial drains, plumbing networks, ventilation ducts, chimneys, technical pipes, channels and internal system components.
Compared with more compact systems for cavities or machinery, this range is designed above all when video inspection of pipes over longer lengths is required, keeping the camera connected to the cable reel and documenting the route with images, videos and an indication of the distance reached.
Applications
- Video inspection of pipes, drains and plumbing networks
- Internal inspection of ducts, channels and chimneys
- Inspections on sewers, drain columns and service lines
- Detection of deposits, obstructions, residues and foreign objects
- Verification of the internal condition of civil and industrial systems
- Checks on technical pipes, treatment systems and drainage networks
- Photo and video documentation of detected conditions
- Identification of the approximate position of anomalies along the route
- Preventive maintenance, technical service and site surveys
FAQ – Industrial video inspection systems for pipes and drains
What is an industrial video inspection system for pipes used for?
It is used to observe and document the inside of pipes, drains, ducts, sewers, chimneys and systems without dismantling or opening the section to be inspected.
What is the difference between a 23 mm and a 14 mm camera head?
The 23 mm camera head is suitable for pipes and wider internal passages. The 14 mm camera head is suitable when the available diameter is smaller and narrower passages need to be accessed.
How should the cable length be selected?
The length should be selected according to the actual depth to be reached from the access point. Configurations of 20, 30 and 40 m are available, allowing the system to be adapted to the pipe or duct section to be inspected.
What is the integrated meter counter used for?
The meter counter displays the length of cable used during the inspection. It helps identify the approximate position along the pipe where anomalies, obstructions or other elements requiring verification have been detected.
Can photos and videos be recorded?
Yes, the system can capture photos and videos during the inspection, allowing the conditions detected inside the pipe or duct to be documented.
How are inspection files transferred?
Images and videos are saved on the SD card. To transfer them to a PC, simply remove the card from the system and insert it into the relevant reader to download and archive the inspection data.
Can the camera head be used in the presence of water?
The camera head has an IP68 protection rating, making it suitable for video inspections in pipes, drains and ducts where water or residues compatible with this protection rating may be present.
Is the system suitable for video inspection of drains and sewers?
Yes, it is suitable for checks on drains, sewers, plumbing networks, ducts and other lines where the inspection point needs to be reached with a longer cable.
Can it be used to inspect chimneys and channels?
Yes, it can be used to observe the inside of chimneys, ducts, channels and other extended cavities compatible with the selected configuration.
