Industrial video inspection systems

Industrial video inspection systems make it possible to observe internal areas, cavities and components that cannot be reached through direct visual inspection. They are used to check the condition of pipes, ducts, machinery, cylinders, technical compartments, drains, systems and mechanical parts without the need for dismantling or invasive openings.

The choice of video inspection system depends primarily on the available diameter, the depth to be reached, the presence of bends or internal side areas to be observed, and the need to document the inspection with images and videos. The range includes compact solutions for close-range inspections, systems with an articulating camera head and pipe inspection cameras with a cable reel for checks over longer distances.

Video inspection for cavities, machinery and hard-to-reach areas

Industrial video inspection is useful when internal parts of machinery, assembled components, housings, cavities, technical compartments, cylinders, fittings and poorly accessible areas need to be observed. The camera probe makes it possible to reach the inspection point and view the internal area on the monitor in real time.

This solution can support preventive maintenance, fault detection, quality control, technical service and the inspection of components before or after assembly. The ability to capture photos and videos also makes it possible to document the observed condition, compare inspections carried out at different times and share images with the technical department or customer.

For linear inspections of cavities, compartments and components that can be reached with a compact probe, the SAV200SD wireless industrial video inspection system combines a 9 mm probe with a separate monitor, which can be used wirelessly or mounted directly on the camera body.

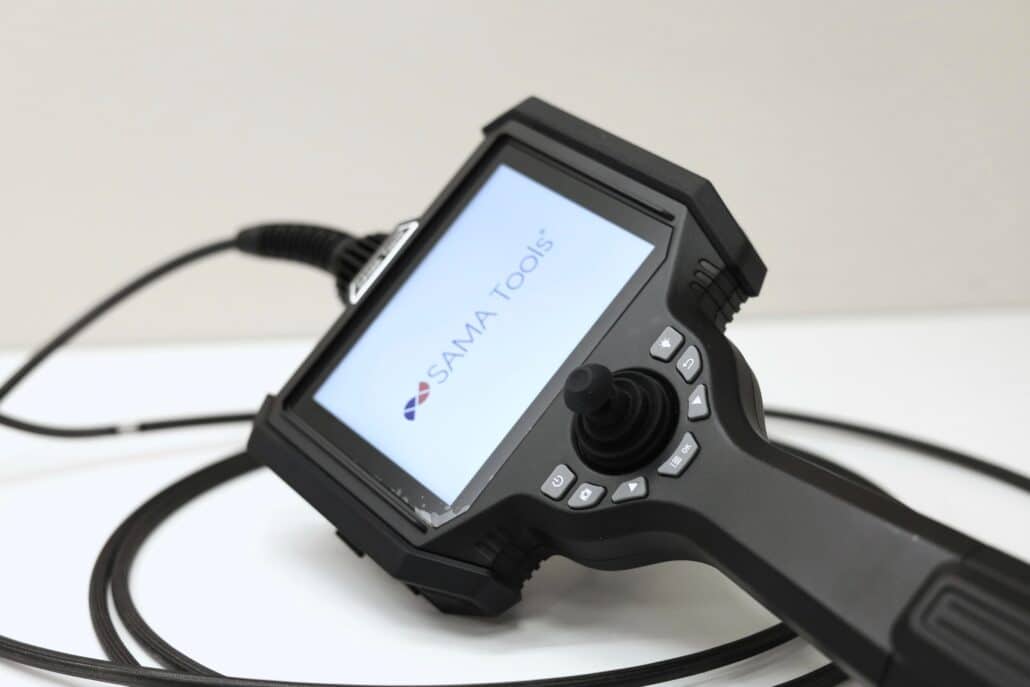

Video inspection systems with articulating camera head

When the inspection path includes deviations, changes in direction or internal side areas to be observed, articulating SAVX video inspection systems may be selected. The articulating camera head makes it possible to change the viewing direction as the probe advances, allowing internal surfaces, side areas and less accessible points to be observed more effectively.

The SAVX range includes configurations with a 3.9 mm probe for narrower passages and with a 6 mm probe for inspections requiring greater length. The possibility of replacing the probe makes it possible to adapt the same system to later requirements by choosing a diameter or length more suitable for the component to be inspected.

Video inspection of pipes, drains and ducts

For checks on water networks, drains, sewers, ducts, channels, chimneys and longer pipes, the SAV32 range uses a cable-reel system. Available configurations make it possible to select cable length according to the depth to be reached, with 20, 30 and 40 m versions.

14 mm and 23 mm camera heads are available. The more compact camera head is suitable when the access diameter is limited, while the 23 mm configuration is suited to wider passages and inspections where a broader view of the inside of the line is useful.

The integrated meter counter displays the cable length used during the inspection. This function helps link images, videos and anomalies to their approximate position along the route, facilitating subsequent checks and identification of the intervention point.

Photos, videos and inspection documentation

Photos and videos can be captured. Files are stored on an SD card and can be transferred to a PC to archive inspection data, create technical documentation or share the result with other departments.

Image recording is useful for describing the internal condition of pipes and components, identifying deposits, residues, obstructions, wear, foreign objects or other visible anomalies during the inspection. Documentation also makes it possible to compare how a condition develops over time and support planned maintenance activities.

How to choose an industrial video inspection system

Selection starts from the point to be inspected. For cavities and compartments accessible over limited depths, a compact system with a flexible probe is suitable. When bends, deviations or side areas need to be observed, a solution with an articulating camera head is preferable. For pipes, drains and ducts over longer distances, a cable-reel system makes it possible to reach the relevant section and document the route more continuously.

The available diameter, required length, internal geometry of the component and type of documentation needed must also be considered. A correctly selected configuration makes it possible to reach the inspection point, obtain useful images and carry out the inspection in a more organised way.
