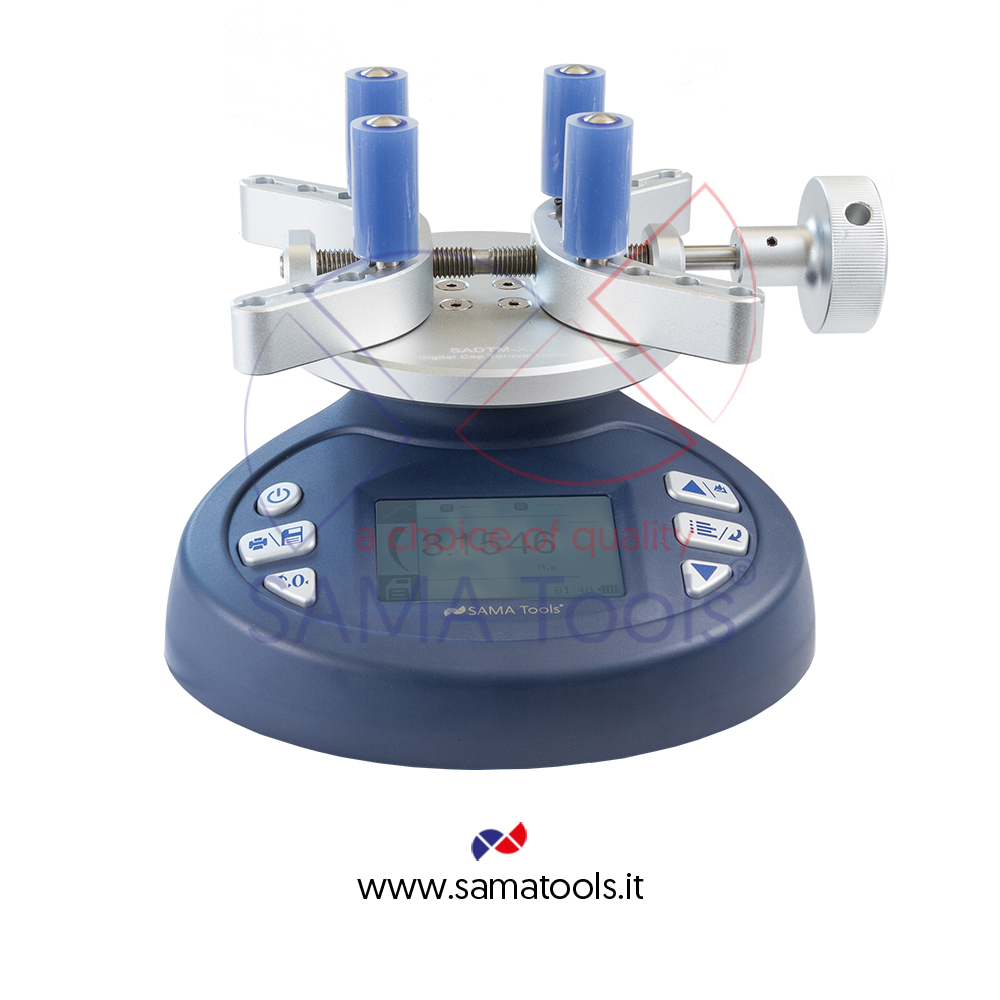

Cap torque tester - SADTM-X
Digital Torquemeters SADTM are highly professional instruments designed to measure torsional force.
Are mainly used to control opening and closing torque of caps. Equipped with rapid tightening clamps up to 190 mm. max. diameter. Main fields of use are: basic production department , scientific research and all productive realities who needs to measure torsional force.
|
Modello / Model |
SADTM-X02 |
SADTM-X05 |
SADTM-X10 |
SADTM-X20 |
|
Capacità / Capacity |
2 Nm |
5 Nm |
10 Nm |
20 Nm |
|
Risoluzione / Resolution |
0,0002 Nm |
0,0005 Nm |
0,001 Nm |
0,002 Nm |
|
Carico minimo / Min. load |
5% F.S. |
|||
|
Precisione / Accuracy |
± 0,3% F.S. |
|||
|
Unità di misura / Measuring units |
Nm ; cNm ; Kgf/cm ; lbf/ft ; lbf/in |
|||
|
Modalità schermo / Display mode |
Data and diagram |
|||
|
Dimensioni campione Available test diameter |
19,5 ~ 190 mm |
|||
|
Modalità di misura / Measuring mode |
Track ; Peak ; First peak ; Double peak ; Preset ; Auto peak |
|||
|
Memoria / Memory |
1.000 values |
|||
|
Uscita dati / Data output |
√ |
|||
|
Alimentazione / Power Supply |
Rechargeable battery |
|||
|

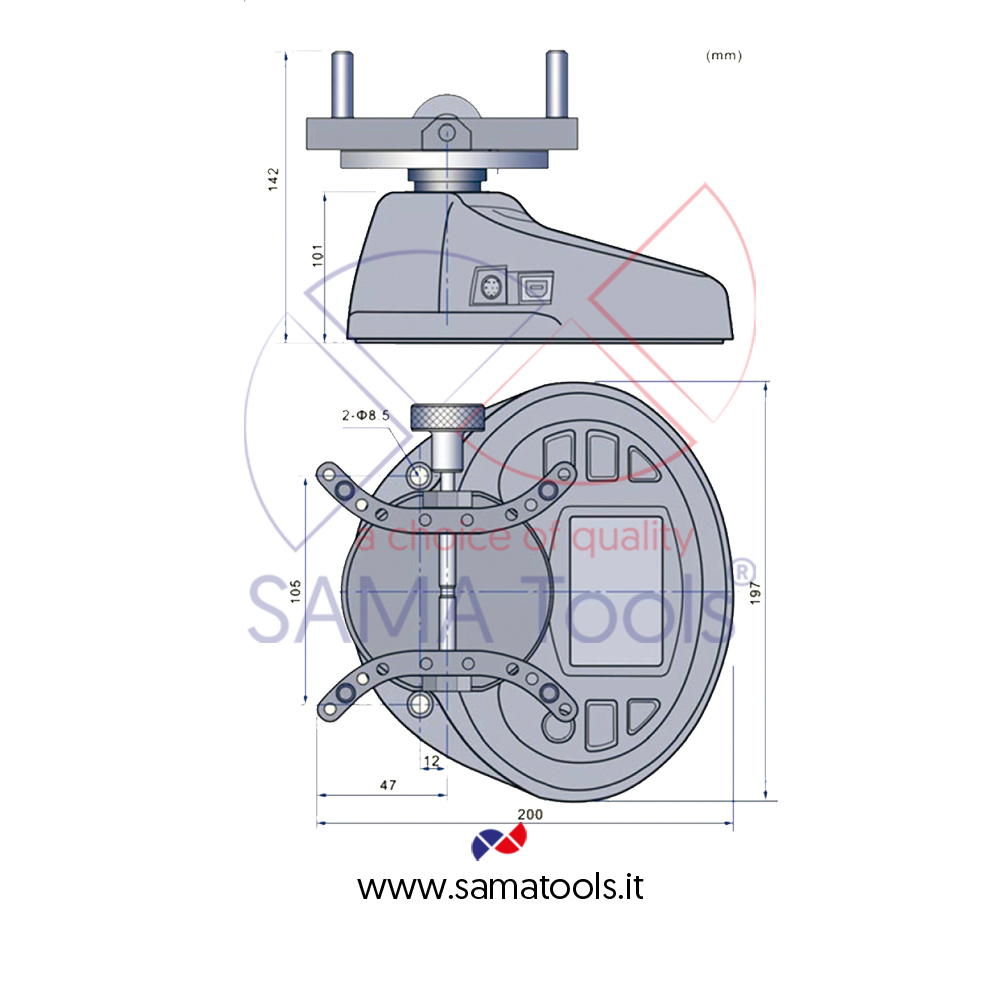

Dimensioni / Dimension |
197 x 183 x 142 mm |
|||
|
Peso / Weight |
2,5 Kg |
|||
Dotazione Standard / Standard Supply:
Unità centrale / Main unit
Cavo e software / Cable and software
Manuale d’uso / User’s manual
Accessori Opzionali / Optional Accessories:
Stampante / Printer
Certificato di taratura / Calibration report
