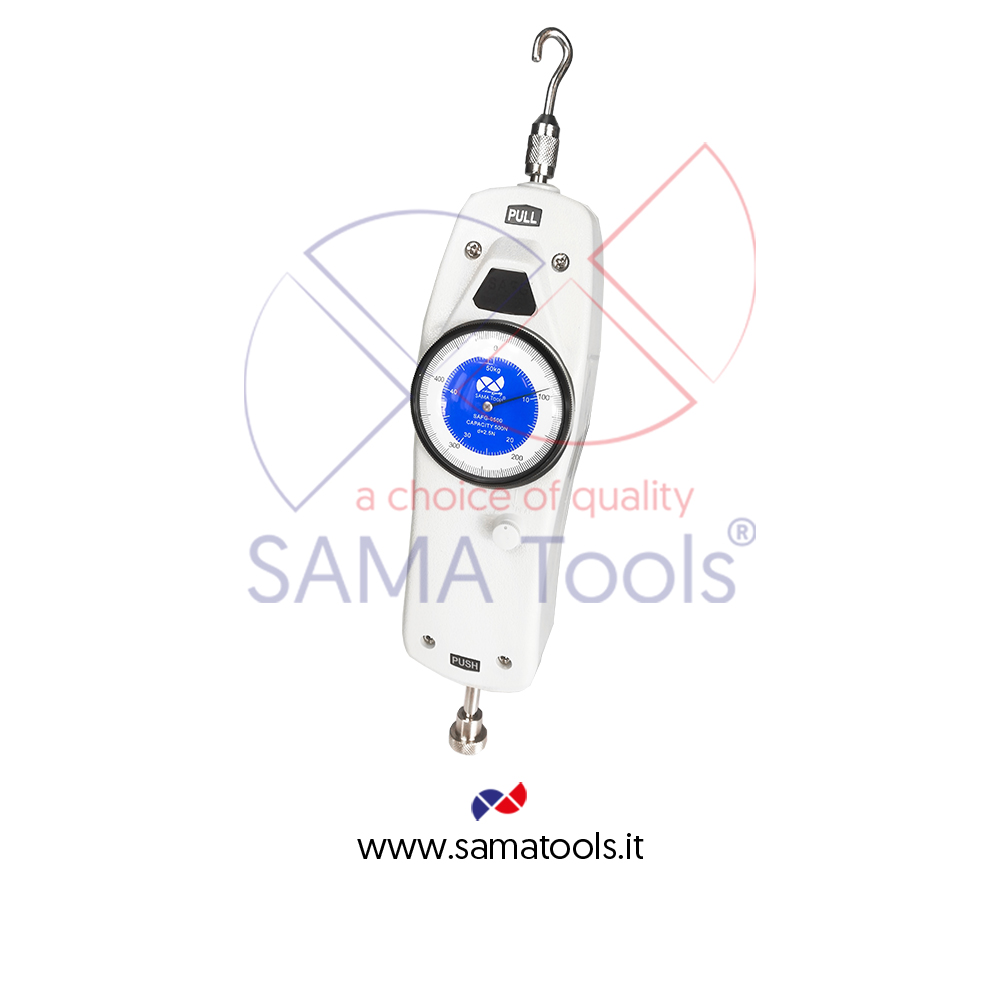

Analog force gauges N/Kg - SAFG
Our portable Analog Dynamometers can measure the force weight, both in tension, both in compression, in two different scales: N and Kg.
The instruments, retrofitted to operate on stators are equipped with a full set of accessories of easy installation (flat head adapter, conical, chisel, hook, extension ) and a sturdy case where they can be stored and transported.
Mainareasof use and application:
|
Agriculture |
Stadium offruit ripening |
|
Food Industry |
Consistency, bottles opening load, packaging testing |
|
Textile Industry |
Fabrics resistance |
|
Leatherwear |
Resistanceofbags, soles etc . |
|
Carpentry |
Resistanceof packages |
|
Paper industry |
Resistanceof paper, cardboard andpackaging |
|
Chemicalindustry |
Adhesion of coatings, gels, opening loads of bottles |
|
Rubber & Plastics |
Partsstrength , fiber assemblies, films, rubbers, foams, etc. |
|
Glassand ceramics |
Testson Packaging |
|
Metallurgy |
Material resistance |
|
Cutlery |
Mechanical strength and efforts needed to handle them |
|
Machinery |
Parts resistance and assembly, flow, breaking load |
|
Automotive |
Shock absorbers test and effort needed related to mechanisms |
|
Springs |
Compression, tension, torsion |
|
Cosmetics |
Granularity,cosmetic bag opening and closing |
|
Medicalindustry |
Load in physical therapy, syringes resistance, capsules hardness |
|
metrology |
Sensorcalibration, compression, torsion, tension |
|
Electronic engineering |
Capacity, loadto screw /unscrew, loadbuttons, |
|
Packagingindustry |
Opening,breaking, untaploading, film drilling |
Essential range of accessories in order to maximize your force gauge. Suggested to be employed in synergy with internal load cell force gauges and related test stands. Non standard clamps available on demand.
|
Modello Model |
SAFG 0010 |
SAFG 0020 |
SAFG 0030 |
SAFG 0050 |
SAFG 0100 |
SAFG 0200 |
SAFG 0300 |
SAFG 0500 |
|
Standard |
ISO 376 ; ASTM E 74 |
|||||||
|
Cella di carico Load cell |
Integrated |
|||||||
|
Campo di misura Measuring range |
10 N 1 Kg |
20 N 2 Kg |
30 N 3 Kg |
50 N 5 Kg |
100 N 10 Kg |
200 N 20 Kg |
300 N 30 Kg |
500 N 50 Kg |
|
Risoluzione Resolution |
0,05 N |
0,1 N |
0,2 N |
0,2 N |
0,5 N |
1 N |
2 N |
2 N |
|
Precisione Accuracy |
± 1% F.S. |
|||||||
|
Unità di misura Measuring units |
N / Kg |
|||||||
|
Funzioni Functions |
Track ; Peak |
|||||||
|
Dimensioni Dimensions |
227 x 59 x 51 mm |
|||||||
|
Peso / Weight |
600 g |
|||||||
Dotazione Standard / Standard Supply:
Unità centrale / Main unit
Adattatori per compressione e trazione / Compression and traction adapters
Prolunga / Extension rod
Valigetta / Carrying case
Manuale d’uso / User’s manual
Accessori Opzionali / Optional Accessories:

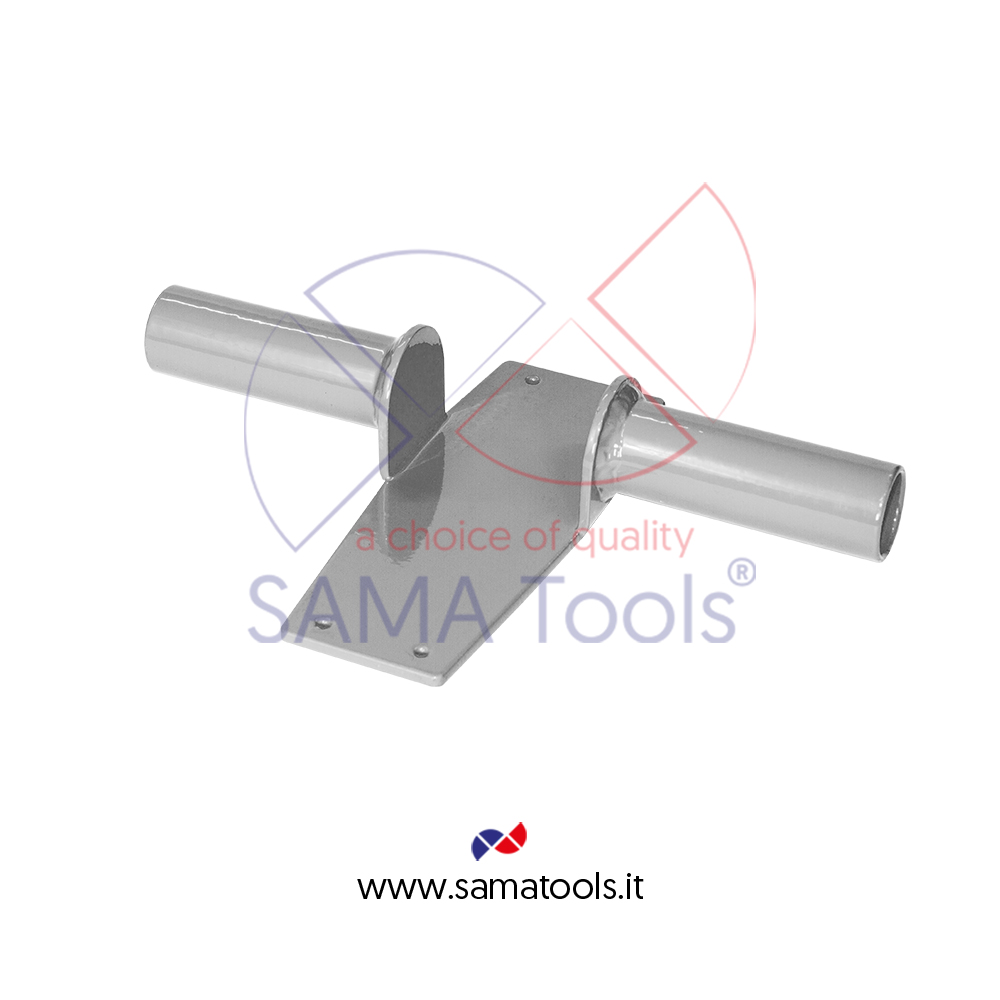

Impugnatura / Handle

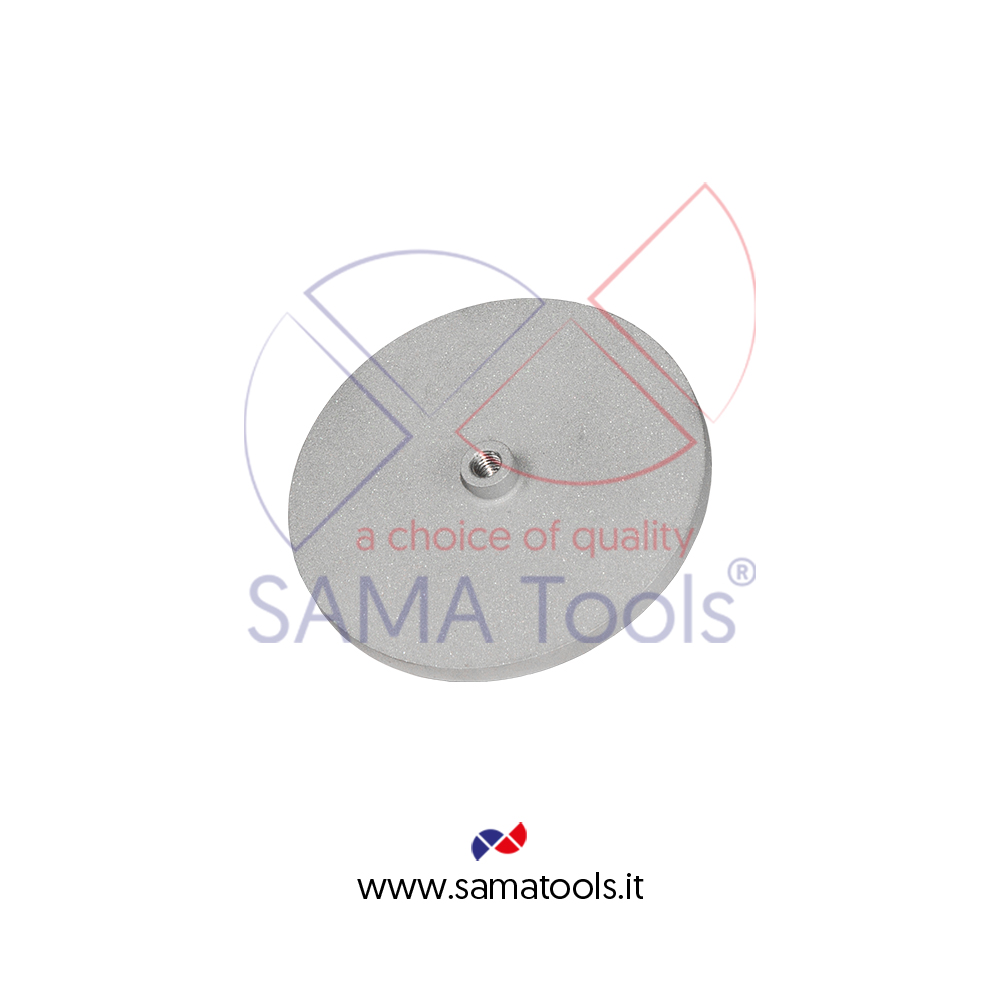

Piattello per prove di spinta / Push disk

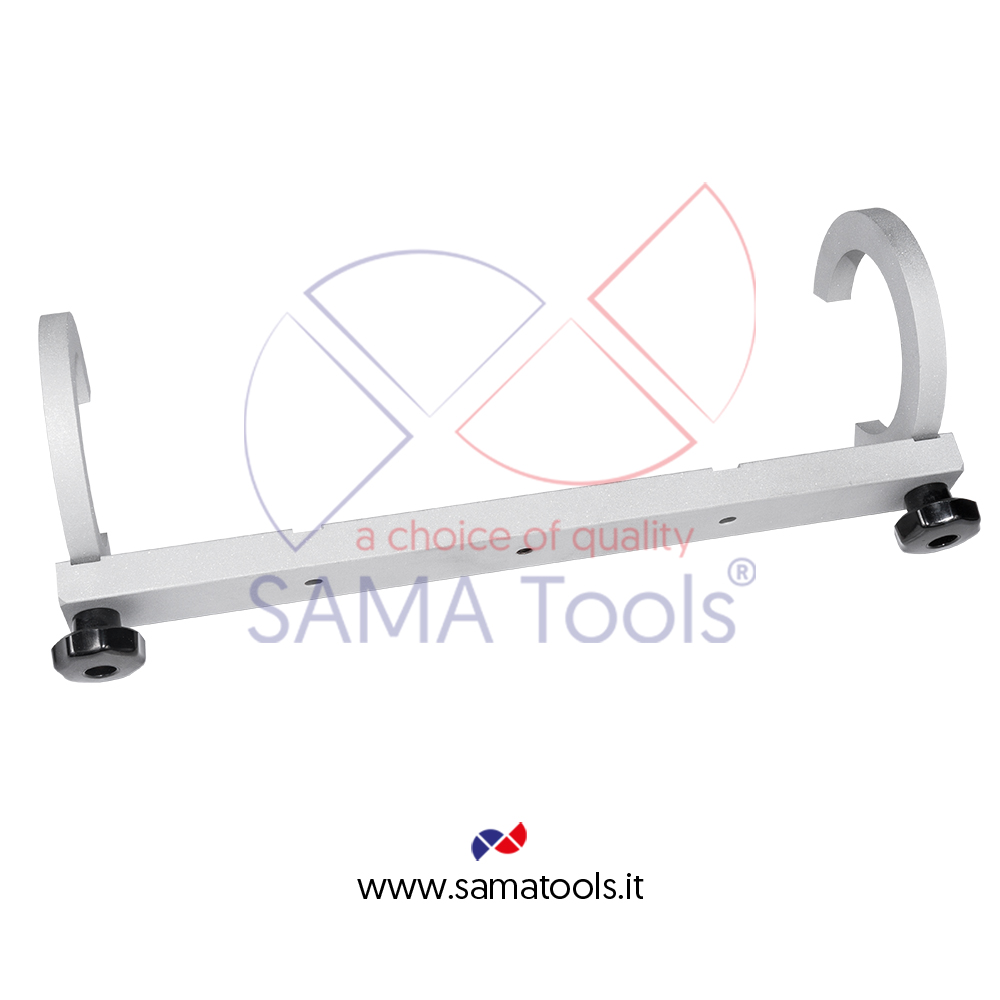

Supporto traino e spinta / Push and pull attachment

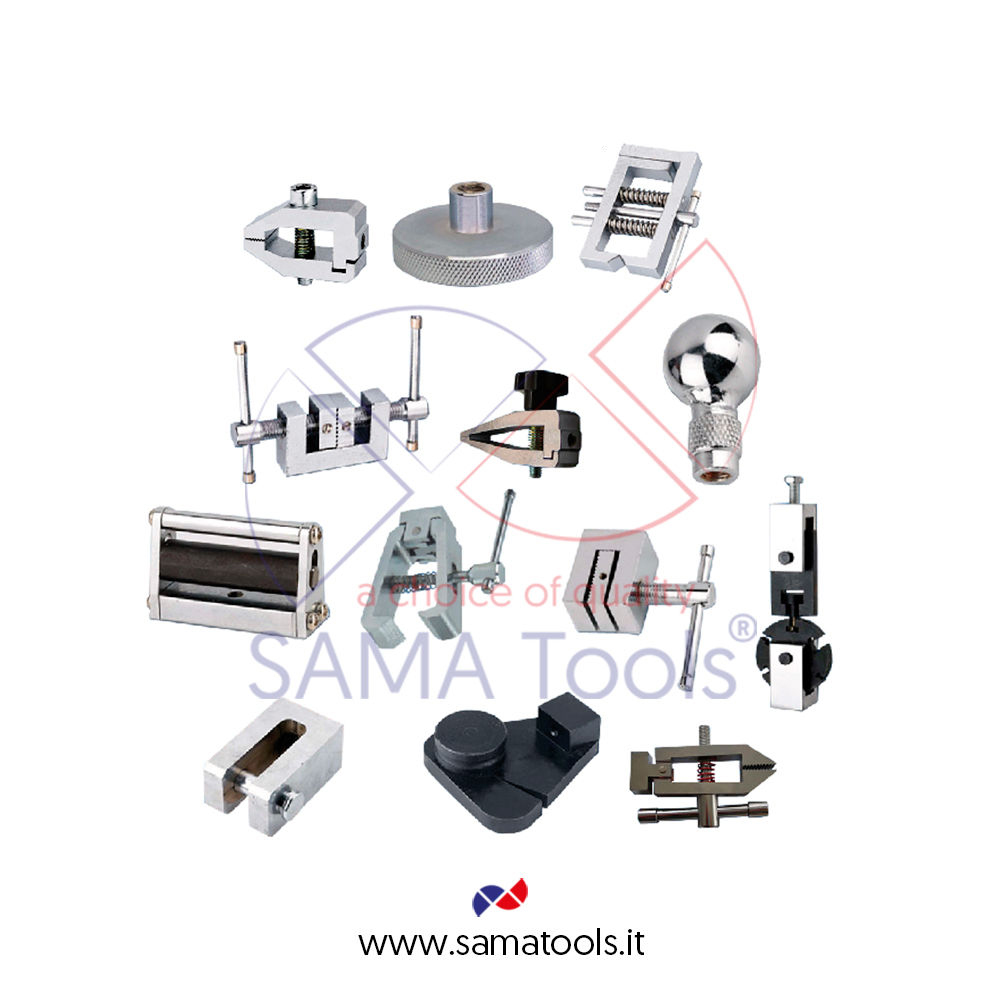

Pinze porta-campione / Clamps
Stativo / Test stand
Certificato di taratura / Calibration report
