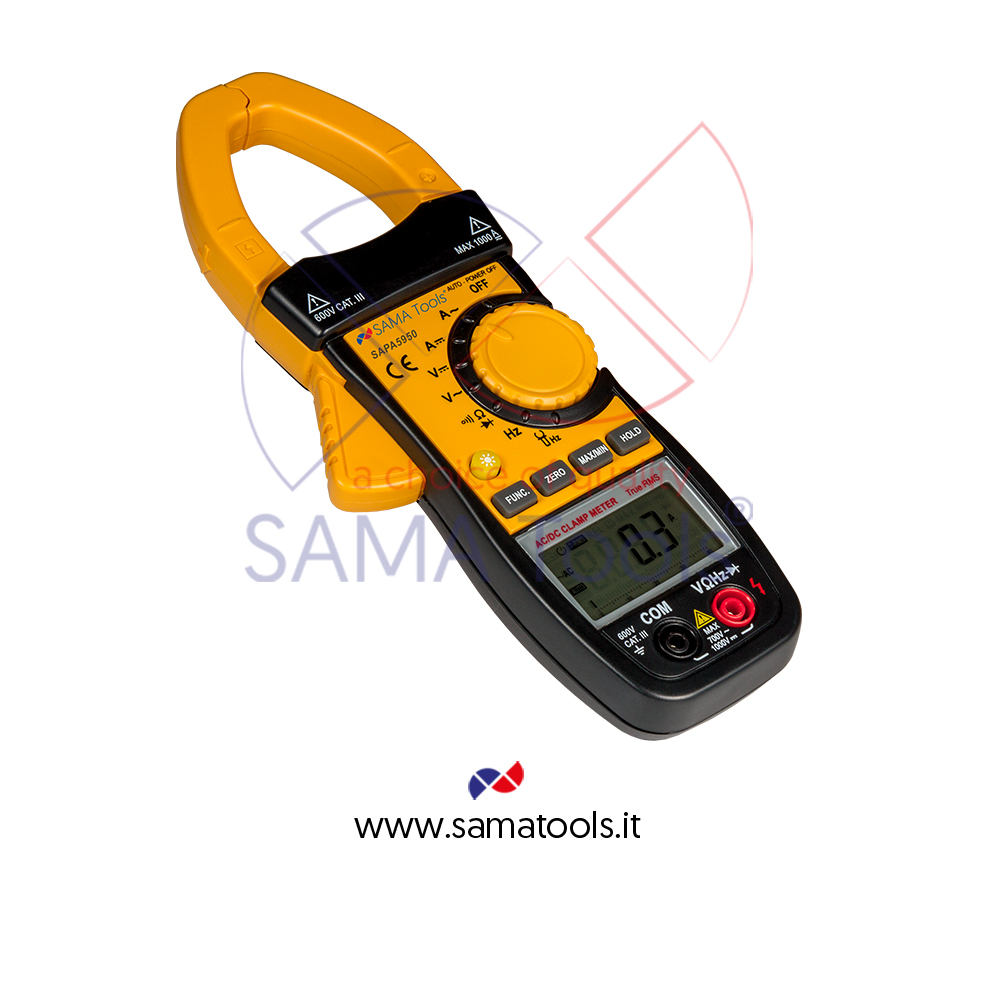

1000 A AC/DC Clamp meter – SAPA5950
True RMS function; voltage range 1000V DC / 700V AC; current AC and DC 1000A; resistance 40 MOhm; frequency 100 kHz. This digital clamp meter has been designed according with rules IEC1010-2-032 IEC1010-1 concerning safety requirements for electrical measuring instruments and handheld clamps with double insulation, overvoltage category 1000V CAT II 600V CAT III and pollution 2.
This device complies with the requirements of the following European Community Directives: 89/336 / EEC (Electromagnetic Compatibility) and 73/ 23 / EEC (Low Voltage) as defined by 93/68/EEC (CE marking).
| Details | Model |
SAPA5940 |
SAPA5950 |
||||
| Display |
LCD 3999 Counts |
||||||
| Class and according |
EMC e LVD IEC/EN 61010 -1 1000V CAT II / 600V CAT III |
||||||
| DC voltage Imput inpedance: 10MΩ Overload protection: 1000V DC / 700V AC RMS |
Range |
Res. |
Accuracy |
Range |
Res. |
Accuracy |
|
|
400mV |
0.1mV |
± (0.8%+5dgt) |
4V |
1mV |
± (0.8%+5dgt) |
||
|
4V |
1mV |
40V |
10mV |
||||
|
40V |
10mV |
400V |
0.1V |
||||
|
400V |
0.1V |
600V |
1V |
± (1.0%+5dgt) |
|||
|
1000V |
1V |
± (1.0%+5dgt) |
1000V |
||||
| AC voltage Imput inpedance: 10MΩ Overload protection: 1000V DC / 700V AC RMS |
4V |
1mV |
± (1.2%+5dgt) |
4V |
1mV |
± (1.2%+5dgt) |
|
|
40V |
10mV |
40V |
10mV |
||||
|
400V |
0.1V |
400V |
0.1V |
||||
|
700V |
1V |
± (1.5%+5dgt) |
700V |
1V |
± (2.0%+5dgt) |
||
| DC current |
400A |
0.1A |
± (3.0%+5dgt) |
400A |
0.1A |
± (3.0%+5dgt) |
|
|
1000A |
1A |
1000A |
1A |
± (3.0%+6dgt) |
|||
| AC current |
400A |
0.1A |
± (3.0%+8dgt) |
400A |
0.1A |
± (2.5%+5dgt) |
|
|
1000A |
1A |
1000A |
1A |
± (3.0%+6dgt) |
|||
| Resistance |
400Ω |
0.1Ω |
± (1.0%+5dgt) |
400Ω |
0.1Ω |
± (1.0%+5dgt) |
|
|
4KΩ |
1Ω |
4KΩ |
1Ω |
||||
|
40KΩ |
10Ω |
40KΩ |
10Ω |
||||
|
400KΩ |
0.1KΩ |
400KΩ |
0.1KΩ |
||||
|
4MΩ |
1KΩ |
4MΩ |
1KΩ |
||||
|
40MΩ |
10KΩ |
± (2.0%+5dgt) |
40MΩ |
10KΩ |
± (2.0%+6dgt) |
||
| Capacitance |
4nF |
1pF |
± (4.0%+10dgt) |
No |
|||
|
40nF |
10pF |
||||||
|
400nF |
0.1nF |
||||||
|
4uF |
1nF |
||||||
|
40uF |
10nF |
||||||
| Frequency |
40Hz |
0.01Hz |
± (0.1%+1dgt) |
40Hz |
1Hz |
± (0.1%+1dgt) |
|
|
400Hz |
0.1Hz |
400Hz |
|||||
|
4kHz |
1Hz |
4kHz |
10Hz |
||||
|
40kHz |
10Hz |
40kHz |
100Hz |
||||
|
100kHz |
100Hz |
100kHz |
|||||
| Frequency clamp |
40Hz |
0.01Hz |
± (0.1%+1dgt) |
40Hz |
0.01Hz |
± (0.1%+1dgt) |
|
|
400Hz |
0.1Hz |
400Hz |
0.1Hz |
||||
| Temperature |
400°C~750°C |
1°C |
± (1.0%+5dgt) |
No |
|||
|
0°C~400°C |
± (1.0%+3dgt) |
||||||
|
-40°C~0°C |
± (1.0%+6dgt) |
||||||
| TRUE RMS |
No |
Yes |
|||||
| Continuity test Diode test |
Yes |
||||||
| MIN/MAX / HOLD / AUTO RANGE AUTO POWER OFF / POLARITY IND |
Yes |
||||||
| Diam. conductors |
40mm |
||||||
| Power - Weight |
3 x 1.5V AAA - 330Gr |
||||||
| Optional accessories |
Certificate |
||||||
