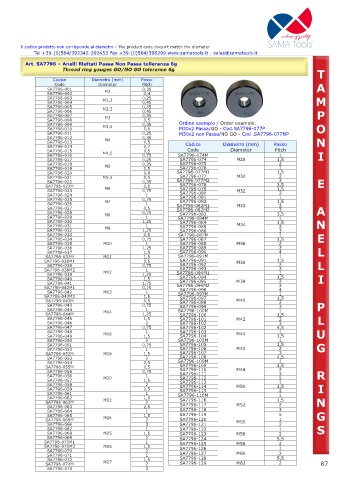

Page 87 - Catalogo_STD_SAMATOOLS

Il codice prodotto non corrisponde al diametro - The product code doesn’t match the diameter Il codice prodotto non corrisponde al diametro - The product code doesn’t match the diameter
Tel +39-(0)584/392342-392453 Fax +39-(0)584/398299 www.samatools.it - sales@samatools.it
Art. SA7796 – Anelli filettati Passa Non Passa tolleranza 6g
T

Codice Diametro (mm) Passo
Code Diameter Pitch A
SA7796-001 M2 0,35
SA7796-002 0,4
SA7796-003 M2,2 0,25 M
SA7796-004 0,45
SA7796-005 M2,5 0,35
SA7796-006 0,45
SA7796-007 M3 0,35 P
SA7796-008 0,5
SA7796-009 M3,5 0,35 Ordine esempio / Order example:
SA7796-010 0,6 M30x2 Passa/GO - Cod.SA7796-077P O
SA7796-011 0,25 M30x2 non Passa/NO GO - Cod .SA7796-077NP
SA7796-012 M4 0,35
SA7796-013 0,5 Codice Diametro (mm) Passo N
SA7796-014 0,7
SA7796-015 M4,5 0,5 Code Diameter Pitch
SA7796-016 0,75 SA7796-074M 1 I
SA7796-017 0,25 SA7796-074 M28 1,5
SA7796-018 M5 0,35 SA7796-075 2
SA7796-019 0,5 SA7796-076 1
SA7796-020 0,8 SA7796-077M1 1,5
SA7796-021 M5,5 0,5 SA7796-077 M30 2
SA7796-022 0,35 SA7796-077M2 3 E
SA7796-022M 0,5 SA7796-078 3,5
SA7796-023 M6 0,75 SA7796-079 M32 1,5
SA7796-080
2
SA7796-024 1 SA7796-081 1
SA7796-025 M7 0,75 SA7796-082 1,5
SA7796-026 1 SA7796-082M1 M33 2
SA7796-027 0,5 SA7796-082M2 3 A
SA7796-028 M8 0,75 SA7796-083 3,5
SA7796-029 1 SA7796-084M 1
SA7796-030 1,25 SA7796-084 1,5 N
SA7796-031 M9 1 SA7796-085 M34 2
SA7796-032 1,25 SA7796-086 3
SA7796-033 0,5 SA7796-087M 1 E
SA7796-034 0,75 SA7796-087 1,5
SA7796-035 M10 1 SA7796-088 M36 2
SA7796-036 1,25 SA7796-089 3
SA7796-037 1,5 SA7796-090 4 L
SA7796-037M M11 1,5 SA7796-091M 1
SA7796-038M1 0,5 SA7796-091 M38 1,5
SA7796-038 0,75 SA7796-092 2 L
SA7796-038M2 1 SA7796-093 3
SA7796-039 M12 1,25 SA7796-094M1 1
SA7796-040 1,5 SA7796-094 M39 1,5 I
2
SA7796-095
SA7796-041 1,75
SA7796-042M1 0,75 SA7796-094M2 3
4
SA7796-096
SA7796-042 M13 1 SA7796-097M 1
SA7796-042M2 1,5 SA7796-097 1,5
SA7796-043M 0,5 SA7796-098 M40 2
SA7796-043 0,75 SA7796-099 3 P
SA7796-044 1 SA7796-100M 1
SA7796-044M M14 1,25 SA7796-100 1,5
SA7796-045 1,5 SA7796-101 M42 2 L
SA7796-046 2 SA7796-102 3
SA7796-047 0,75 SA7796-102 4,5
SA7796-048 M16 1 SA7796-103 M44 1 U
SA7796-049 1,5 SA7796-104 1,5
SA7796-050 2 SA7796-105M 1
SA7796-051 0,75 SA7796-105 1,5 G
SA7796-052 1 SA7796-106 M45 2
SA7796-052M M18 1,5 SA7796-107 3
SA7796-053 2 SA7796-108 4,5
SA7796-054 2,5 SA7796-109M 1
SA7796-055M 0,5 SA7796-109 M48 1,5
2
SA7796-110
SA7796-055 0,75 SA7796-111 3
SA7796-056 M20 1 SA7796-112 5 R
SA7796-057 1,5 SA7796-113 1
SA7796-058 2 SA7796-114 M50 1,5
SA7796-059 2,5 SA7796-115 2 I
SA7796-061 1 SA7796-116M 1
SA7796-062 1,5 SA7796-116 1,5
SA7796-062M M22 2 N
SA7796-063 2,5 SA7796-117 M52 2
SA7796-064 1 SA7796-118 3
SA7796-065 1,5 SA7796-119 5 G
SA7796-065M M24 2 SA7796-120 M55 1
SA7796-066 3 SA7796-121 2
SA7796-067 1 SA7796-122 1 S
SA7796-068 M25 1,5 SA7796-123 M56 2
SA7796-069 2 SA7796-124 5,5
SA7796-070M1 1 SA7796-125 M58 2
SA7796-070M2 M26 1,5 SA7796-126 1
SA7796-070 2 SA7796-127 M60 2
SA7796-071 1
SA7796-072 1,5 SA7796-128 5,5
SA7796-072M M27 2 SA7796-129 M62 2 87
SA7796-073 3
