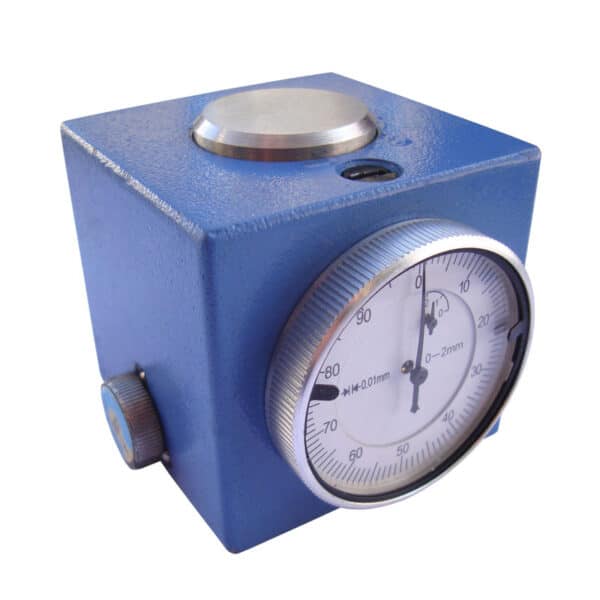

The zero setter for machine tools is an instrument designed to perform tool setting directly on the machine in a practical and repeatable way. Its primary function is to define the tool reference accurately, allowing the operator to correctly set the height position before machining and avoid approximate manual adjustments.

This instrument is mainly used on milling machines, machining centres and other machine tools where the tool position relative to the machine reference plane must be set consistently. In practice, it allows the tool tip to be brought into controlled contact with the zero setter and the zero reference point to be defined accurately, reducing the risk of errors during setup operations.

The presence of the integrated dial gauge makes contact easier to read and control. During tool approach, the operator can visually verify the movement of the indicator and identify the correct reference point without relying solely on manual feel. This makes the instrument particularly useful during setup operations, tool changes and machine preparation.

The zero setter is equipped with a magnetic base, a practical feature when the instrument must be positioned on the machine table or on a ferromagnetic surface with stable support. This solution helps maintain a more consistent reference during use and is especially practical for repeated checks or production cycles where tool setting is performed frequently.

The reference height is 50 mm. This value is important because it represents the dimension to be considered during tool setting. Once the correct contact point has been reached, the operator can set the tool reference on the basis of this known height. In workshop operation this allows more consistent procedures and more uniform setup methods between different tools.

From an application standpoint, an instrument of this type is useful not only during the initial setup, but also during subsequent production checks, for example after replacing a cutter, tip or other machining tool. It therefore helps speed up reference restoration and reduce machine downtime during retooling operations.

Another advantage of the zero setter for machine tools is its ease of use. It does not require complex procedures and can be used directly on the machine, becoming a practical support tool for all operations where correct tool positioning influences machining quality and operational safety.

In summary, this is a highly practical instrument for anyone working with machine tools and requiring tool setting operations to be performed in a clear, repeatable and technically reliable way.

Applications

• Tool setting on milling machines and machining centres
• Definition of the tool height reference
• Verification of tool contact point during setup
• Quick checks after cutter, tip or tool replacement
• Tool height setting on machine tools
• Reduction of errors during manual tool setting operations
• Use in workshops, toolrooms and machining departments
• Support during machine preparation and retooling operations

FAQ – Zero Setter for Machine Tools

What is a zero setter for machine tools?
It is an instrument used to define the tool reference on the machine and perform tool setting operations in a practical and repeatable way.

What is a zero setter used for?
It is used to correctly position the tool relative to the machine reference plane, allowing more accurate and controlled setup operations.

On which machines is it most commonly used?
It is mainly used on milling machines, machining centres and, more generally, on machine tools where accurate tool reference positioning is required.

How is a zero setter used?
The instrument is positioned on the machine reference surface, then the tool is slowly brought into contact. The height value is then set according to the known reference height of the instrument.

Why is tool setting important?
Because controlled contact helps achieve more consistent setup procedures and reduces the risk of errors caused by approximate manual positioning.

What is the function of the integrated dial gauge?
The dial gauge provides a clear indication of tool approach and helps identify the correct contact point during tool setting operations.

What is the purpose of the magnetic base?
The magnetic base helps keep the instrument stable on the machine table or on a ferromagnetic surface, improving ease of use.

What is the reference height of this zero setter?
The reference height is 50 mm.

Why is the 50 mm height important?
Because it is the reference value used to correctly establish the tool position once contact with the instrument has been achieved.

Can it be used after a tool change?
Yes, it is particularly useful after replacing a cutter, insert or other machining tool in order to quickly restore the correct reference position.

What advantages does it offer compared to unsupported manual setting?
It allows a more accurate and repeatable setup process, reducing errors caused by manual feel or approximate evaluation.

Who is this instrument intended for?
It is intended for machine tool operators, setup technicians and machining departments that need a practical and reliable solution for tool setting operations.

What are the most common mistakes when using a zero setter?
The most common mistakes include placing the instrument on dirty surfaces, approaching the tool too quickly and not considering the correct reference height during setup.
